Vertical Beam Anchor

£386.00 (incl VAT) £321.67 (excl VAT)
View full description

Fast Shipping

Products typically dispatched within 1-2 working days*

Certification

Products include certification and training courses issue certificates upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Best Rated

Trusted across the UK for lifting expertise and industry knowledge

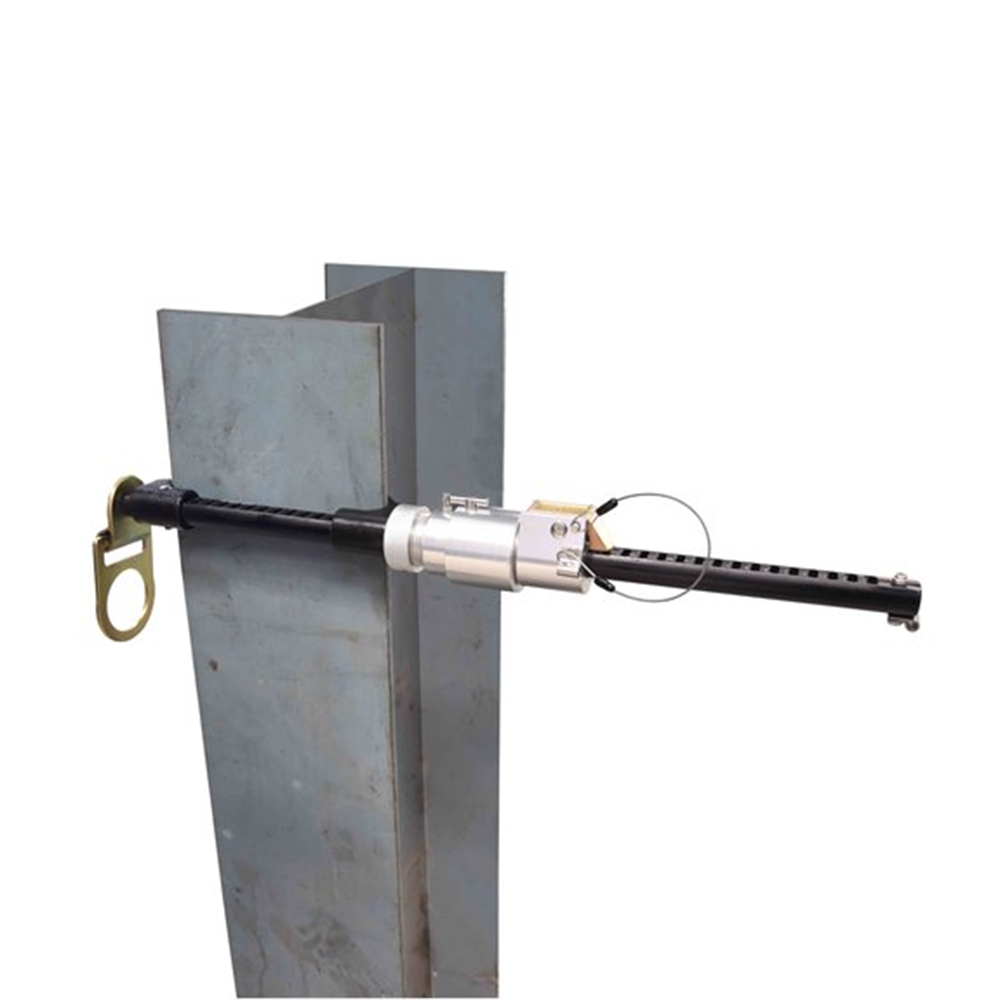

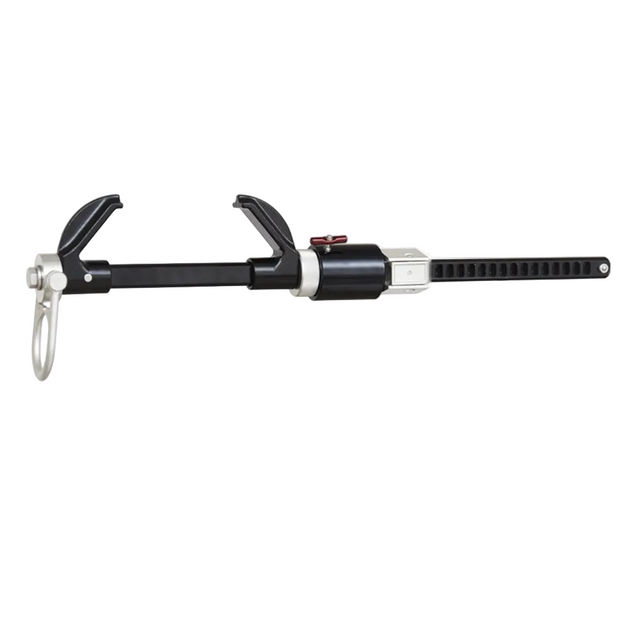

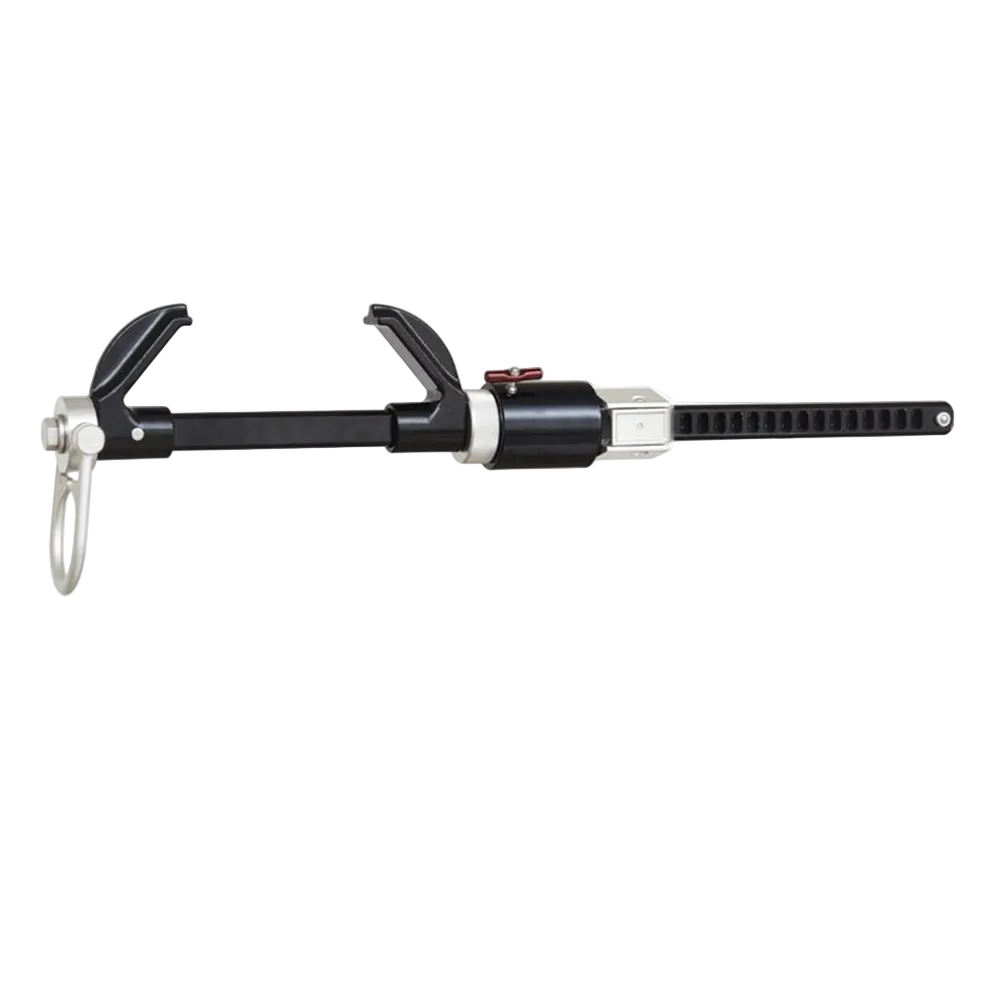

  • The Vertical Beam Anchor FA 60 008 05 provides an anchorage point for one person using a compatible personal fall-protection system on a suitable vertical structure. The manufacturer's specification sheet lists a receiving-structure range of 90–380 mm, EN 795:2012 Type B, 12 kN static strength and 23 kN minimum breaking strength. The anchor weighs 2.60 kg and is specified for vertical use.

    When selecting a vertical beam anchor for work at height, check the structure's dimensions, profile and suitability against the manufacturer's installation instructions. Confirm that the connectors and complete fall-protection system are compatible with the intended work. This is a personal fall-protection anchor, not equipment for lifting goods; its strength ratings are not a goods-lifting working load limit. Refer to the specification sheet in the PDF tab to compare the model, fitting range and ratings, and follow the manufacturer's user instructions for fitting, inspection and use.

  • Model: FA 60 008 05
    Origin: United Kingdom
    Materials: Aluminium and steel
    Resistance: 12 kN
    Breaking strength: 23 kN


  • Specification sheet: Download Vertical Beam Anchor specification sheet

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FAQs About Vertical Beam Anchor

What beam dimensions does the Vertical Beam Anchor accommodate?

The manufacturer's sheet specifies a receiving-structure range of 90–380 mm for vertical use. Check the beam profile and installation requirements as well as its dimensions; being within the adjustment range does not by itself confirm that a structure is suitable.

Who can use the Vertical Beam Anchor, and can it support more than one person?

The Vertical Beam Anchor is specified for one person, not multiple users. It should be selected and used by people with appropriate training for the task and the complete fall-protection system, following the manufacturer's instructions.

Where can I check the installation requirements for the Vertical Beam Anchor?

The PDF tab contains the specification sheet for the Vertical Beam Anchor. For full installation requirements, consult the manufacturer's user instructions for this exact model. Confirm the permitted structure, fitting method and compatible fall-protection equipment before installation.

When is the Vertical Beam Anchor the right choice for my fall-protection setup?

Consider this model when the planned fall-protection system needs a single-user anchorage on a suitable vertical structure within the specified 90–380 mm range. Confirm the installation and complete system against the manufacturer's instructions. Do not select it as a trolley for suspending a hoist or lifting goods.

Why must the supporting structure be checked as well as the anchor’s 90–380 mm adjustment range?

The adjustment range describes the receiving-structure dimensions, not the strength or suitability of the supporting beam. The structure, its condition and the installation must also be suitable for the planned fall-protection arrangement. The anchor's 12 kN static strength and 23 kN minimum breaking strength do not establish the supporting structure's capacity.

How do UK work-at-height regulations affect the selection and use of this vertical beam anchor?

Selecting an anchor is only one part of planning work at height. Check current HSE guidance on the Work at Height Regulations and have a competent person assess the task, supporting structure and complete fall-protection arrangement. Follow the manufacturer's instructions for installation, checks and use. The sheet's EN 795:2012 Type B listing is a product-standard reference, not confirmation that a particular workplace arrangement meets its legal duties.
