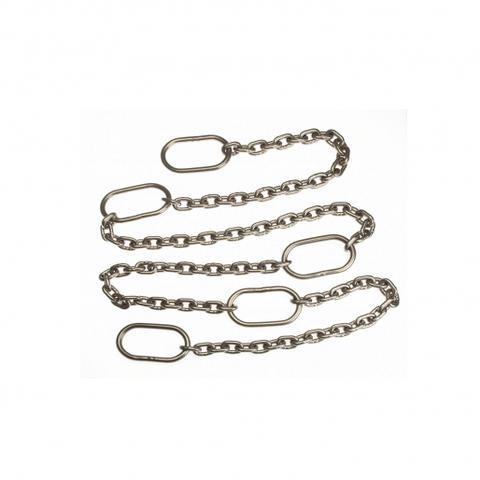

2000kg Stainless Steel Pump Lifting Chain - William Hackett

2000kg Stainless Steel Pump Lifting Chain - William Hackett

£332

Description

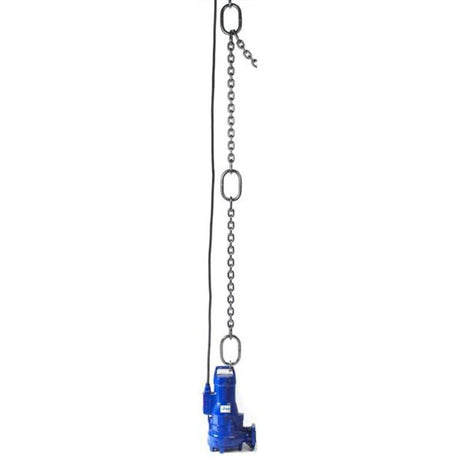

Our Grade 50, 316L Stainless Steel Lifting Pump Chains are a quality product for lifting and lowering of pumps and aeration devices for water and sewage.
Fitted with index lifting points at each end and at 1 metre centres. All items are supplied tested and complete with relevant certification.
It is equipped as standard with a SWL Tag (Safe Working Load) and Certificate that meet Local and National Safety Regulations.

Production Features:
Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 (Marine Grade 316L).
European manufactured Gr.50 316L Short Link Chain.
Assembled, Welded and Tested at our Cradley manufacturing site

Quality Features:
Full traceability for all components used in manufacturing process
Chain links are embossed with manufacturers mark and batch number every 12 links or 1m which ever is the lesser
Every Enlarged Link embossed with our manufacturing Batch Number.
All assemblies are Proof Load Tested to 2.5 x W.L.L.
Factor of Safety: 4:1

For larger capacities, please call or email us.

Specifications

Origin:	United Kingdom
Capacity (W.L.L):	2000kg
Effective Working Length (E.W.L) Options:	1 meter up to 12 meters
Chain Diameter:	12mm

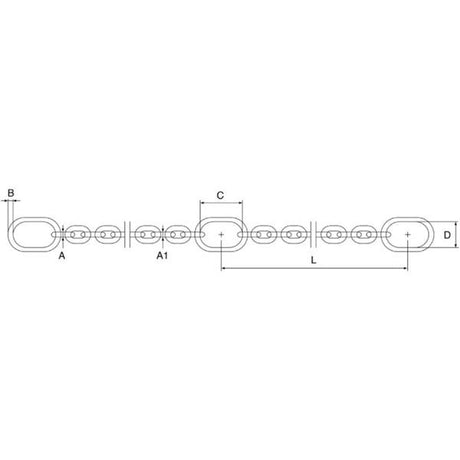

A (See Specification Image):	13mm
A1 (See Specification Image):	10mm
B (See Specification Image):	18mm
C (See Specification Image):	135mm
D (See Specification Image):	75mm
L (approx) (See Specification Image):	1000mm
Documentation:	CE Marked and comes with Certification

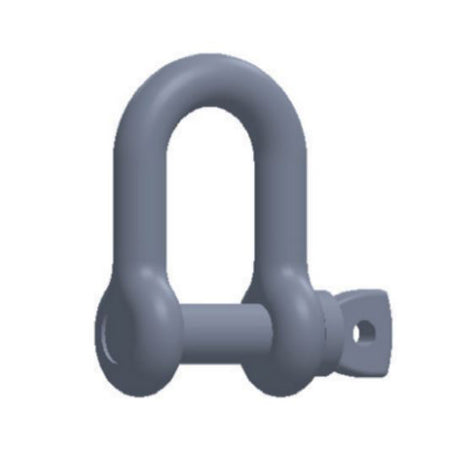

2 Ton Dee Shackle for Pump Lifting Chain Stainless Steel - William Hackett

2 Ton Dee Shackle for Pump Lifting Chain Stainless Steel - William Hackett

£29

Description

Load rated stainless steel shackles are predominantly used in areas of high corrosion, such as the water utility / chemical / oil & gas sectors as well as food processing plants.

Mainly used for pump lifting chains, this popular shackle is used throughout various industries in the UK and beyond. Predominantly used in the industrial and construction markets as a load rated lifting shackle, they are also very prevalent in marine mooring applications.

Care needs to be taken when choosing shackles to this standard as there are many poor quality imitations currently in the market place. The faults can range from incorrect material used, lack of or incorrect heat treatment and poor manufacturing / machining processes leading to inferior quality products.

All shackles comply completely with BS 3032: 1958, including correct material specification and heat treatment.

Specifications

Origin:	United Kingdom
Capacity (WLL):	2000kg
Material:	AISI 316L Stainless Steel

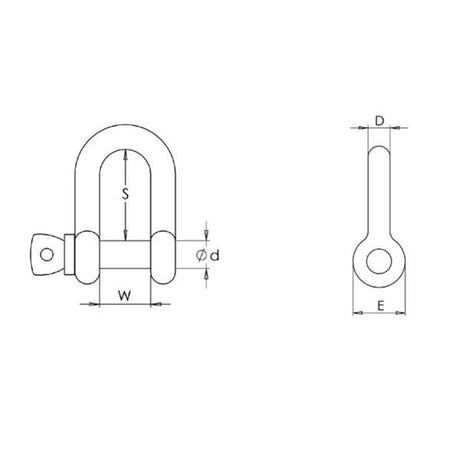

Dimension D (See specification image):	16mm
Dimension d (See specification image):	20mm
Dimension W (See specification image):	32mm
Dimension S (See specification image):	65mm
Dimension E (See specification image):	40mm
Number of pieces in pack:	1
Documentation:	CE Marked and comes with Certification

500kg Stainless Steel Pump Lifting Chain - William Hackett

500kg Stainless Steel Pump Lifting Chain - William Hackett

£101

Description

Our Grade 50, 316L Stainless Steel Lifting Pump Chains are a quality product for lifting and lowering of pumps and aeration devices for water and sewage.
Fitted with index lifting points at each end and at 1 metre centres. All items are supplied tested and complete with relevant certification.
It is equipped as standard with a SWL Tag (Safe Working Load) and Certificate that meet Local and National Safety Regulations.

Production Features:
Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 (Marine Grade 316L).
European manufactured Gr.50 316L Short Link Chain.
Assembled, Welded and Tested at our Cradley manufacturing site

Quality Features:
Full traceability for all components used in manufacturing process
Chain links are embossed with manufacturers mark and batch number every 12 links or 1m which ever is the lesser
Every Enlarged Link embossed with our manufacturing Batch Number.
All assemblies are Proof Load Tested to 2.5 x W.L.L.
Factor of Safety: 4:1

For larger capacities, please call or email us.

Specifications

Origin:	United Kingdom
Capacity (W.L.L):	500kg
Effective Working Length (E.W.L) Options:	1 meter up to 12 meters
Chain Diameter:	6mm
D (See Specification Image):	8mm
B (See Specification Image):	10mm
L (See Specification Image):	110mm
W (See Specification Image):	50mm
L (approx) (See Specification Image):	1000mm
Documentation:	CE Marked and comes with Certification

1000kg Stainless Steel Pump Lifting Chain - William Hackett

1000kg Stainless Steel Pump Lifting Chain - William Hackett

£113

Description

Our Grade 50, 316L Stainless Steel Lifting Pump Chains are a quality product for lifting and lowering of pumps and aeration devices for water and sewage.
Fitted with index lifting points at each end and at 1 metre centres. All items are supplied tested and complete with relevant certification.
It is equipped as standard with a SWL Tag (Safe Working Load) and Certificate that meet Local and National Safety Regulations.

Production Features:
Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 (Marine Grade 316L).
European manufactured Gr.50 316L Short Link Chain.
Assembled, Welded and Tested at our Cradley manufacturing site

Quality Features:
Full traceability for all components used in manufacturing process
Chain links are embossed with manufacturers mark and batch number every 12 links or 1m which ever is the lesser
Every Enlarged Link embossed with our manufacturing Batch Number.
All assemblies are Proof Load Tested to 2.5 x W.L.L.
Factor of Safety: 4:1

For larger capacities, please call or email us.

Specifications

Origin:	United Kingdom
Capacity (W.L.L):	1000kg
Effective Working Length (E.W.L) Options:	1 meter up to 12 meters
Chain Diameter:	7mm
A (See Specification Image):	8mm
A1 (See Specification Image):	7mm
B (See Specification Image):	13mm
C (See Specification Image):	110mm
D (See Specification Image):	60mm
L (approx) (See Specification Image):	1000mm
Documentation:	CE Marked and comes with Certification

1 Ton Dee Shackle for Pump Lifting Chain Stainless Steel - William Hackett

1 Ton Dee Shackle for Pump Lifting Chain Stainless Steel - William Hackett

£13

Description

Load rated stainless steel shackles are predominantly used in areas of high corrosion, such as the water utility / chemical / oil & gas sectors as well as food processing plants.

Mainly used for pump lifting chains, this popular shackle is used throughout various industries in the UK and beyond. Predominantly used in the industrial and construction markets as a load rated lifting shackle, they are also very prevalent in marine mooring applications.

Care needs to be taken when choosing shackles to this standard as there are many poor quality imitations currently in the market place. The faults can range from incorrect material used, lack of or incorrect heat treatment and poor manufacturing / machining processes leading to inferior quality products.

All shackles comply completely with BS 3032: 1958, including correct material specification and heat treatment.

Specifications

Origin:	United Kingdom
Capacity (WLL):	1000kg
Material:	AISI 316L Stainless Steel
Dimension D (See specification image):	9.5mm
Dimension d (See specification image):	12mm
Dimension W (See specification image):	20mm
Dimension S (See specification image):	42mm
Dimension E (See specification image):	27mm
Number of pieces in pack:	1
Documentation:	CE Marked and comes with Certification
