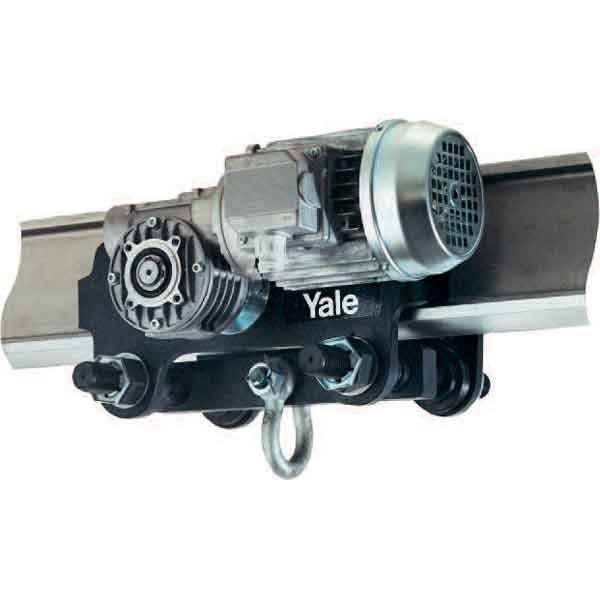

The Yale VTE-U electric travel trolleys are specially recommended for loads over 1000kgs, for transporting over long distances, and/or for frequent use. Suitable for almost all hoists with suspension hook, due to Yale’s universal shackle connection. Travel motor with worm gear transmission ensures smooth start and self braking - a separate motor brake is not required.
Features: Low voltage control 42v . Standard operating voltage 400v 3ph 50Hz. (110v and 230v 1ph 50Hz trollies are also available. Motors protected to IP 55 against dust and water jets. Push-button pendant control IP65. Compact, robust frame with low overall height. Wheels manufactured from fracture-proof steel. Smooth running due to machined surfaces and ball bearing mounting. Cambered wheel profile suitable for flat and inclined beam profiles. Anti-drop and anti tilt devices as standard. Easily adjustable to fit a wide range of beam widths and profiles via due to threaded load bars. Rubber buffers available as optional extra. Travel limit switches also available.
Brand: Origin: United Kingdom Capacity options: From 1000kg up to 3000kg Beam width options: Range A
With low voltage controls
With PCB controls
Documentation: CE Marked and comes with Certification
