Pfaff -silberblau is a leading brand in material handling equipment,hydraulic jacks, wire rope winches, toe jacks, rack and pinion jacks. Pfaff -silberblau lifting products are used wherever high loads need to be lifted, turned or moved in an enviroment with demanding safety requirements. Pfaff - silberblau have set themselves the target of offering our customers high-quality hoisting and material handling equipment that is designed for moving, lifting, positioning and securing heavy loads both ergonomically and safely
17 products
17 products

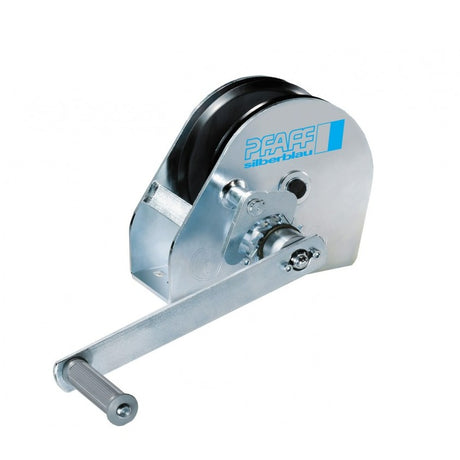

650kg Pfaff LB650 Galvanised Design Wire Rope Winch
Regular price £253Description
Originally developed as an off-road winch, the console-mounted winch model LB is used today for a variety of lifting and pulling applications.
The LB is our best-selling range of winches designed for maximum versatility & efficiency.
Features and benefits include:
- Very lightweight design.
- Fitted with load pressure brake to prevent unintentional lowering of load.
- High efficiency obtained by spur gears.
- Column or base-mounting.
Wire rope sold separately
Specifications
| Brand: |  |
| Origin: | United Kingdom |
| Model: | LB650 - 41239004 |
|
Lifting capacity - 1st layer: |
650kg |
|
Lifting capacity - upper layer: |
290kg |
|
Wire rope diameter: |
6mm |
|
Wire rope capacity - 1st layer: |
1m |
|
Wire rope capacity - total: |
20m |
|
Lift per crank rotation: |
55mm |
|
Required crank pressure: |
22daN |
| Documentation: | CE Marked and comes with Certification |
350kg Pfaff LB350 Galvanised Design Wire Rope Winch
Regular price £199Description
Originally developed as an off-road winch, the console-mounted winch model LB is used today for a variety of lifting and pulling applications.
The LB is our best-selling range of winches designed for maximum versatility & efficiency.
Features and benefits include:
- Very lightweight design.
- Fitted with load pressure brake to prevent unintentional lowering of load.
- High efficiency obtained by spur gears.
- Column or base-mounting.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Model: | LB350 - 30239015 |
|
Lifting capacity - 1st layer: |
350kg |
|
Lifting capacity - upper layer: |
170kg |
|
Wire rope diameter: |
4mm |
|
Wire rope capacity - 1st layer: |
1.8m |
|
Wire rope capacity - total: |
20m |
|
Lift per crank rotation: |
125mm |
|
Required crank pressure: |
25daN |
| Documentation: | CE Marked and comes with Certification |
150kg Pfaff LB150 Galvanised Design Wire Rope Winch
Regular price £191Description
Originally developed as an off-road winch, the console-mounted winch model LB is used today for a variety of lifting and pulling applications.
The LB is our best-selling range of winches designed for maximum versatility & efficiency.
Features and benefits include:
- Very lightweight design.
- Fitted with load pressure brake to prevent unintentional lowering of load.
- High efficiency obtained by spur gears.
- Column or base-mounting.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Model: | LB150 - 30239016 |
|
Lifting capacity - 1st layer: |
150kg |
|
Lifting capacity - upper layer: |
75kg |
|
Wire rope diameter: |
4mm |
|
Wire rope capacity - 1st layer: |
0.8m |
|
Wire rope capacity - total: |
11m |
|
Lift per crank rotation: |
125mm |
|
Required crank pressure: |
17daN |
| Documentation: | CE Marked and comes with Certification |

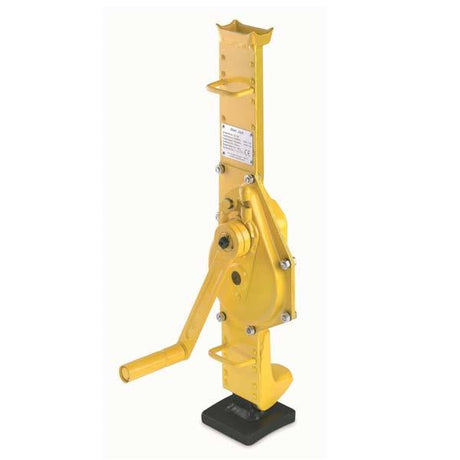

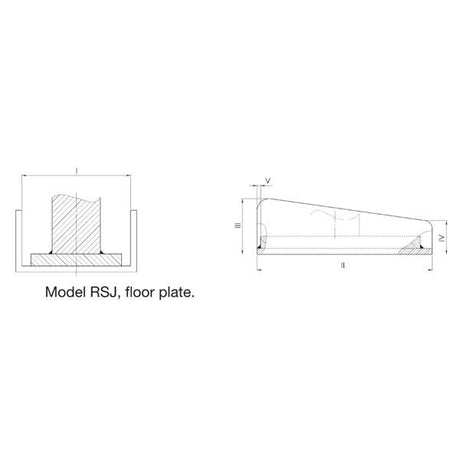

10,000kg Pfaff Silverline Steel Jack
Regular price £385Description
Pfaff Sliverline Steel jacks are used primarily for assembly applications, to brace or support loads.
Mechanical steel jacks can basically be used to lift almost all kinds of loads in maintenance and repair, ship building, construction, as well as agriculture.
The integrated carrying handle makes it a portable and versatile tool.
The load can be positioned either on the head or on the claw and by turning the operating lever the jack shaft moves smoothly and conveniently up and down along the rack.
The robust steel housing ensures a long service life, even in continuous use.
Features and benefits include:
- The precisely machined gear box with optimal gear ratio ensures a minimum of effort and smooth operation.
- The load can be positioned either on the head or the claw.
- By turning the operating lever the jack moves smoothly and conveniently up and down along the rack.
- The self-locking, anti-kickback operating lever reduces the risk of injuries. The handle can be tilted for use in confined spaces.
- The load is held securely in any position. Inside the load brake the axial brake pressure is generated by the load itself, thus, it is proportional to the size of the load.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity on head: | 10000kg |
| Capacity on toe: | 7000kg |
| Minimum claw height: | 85mm |
| Minimum head height: | 800mm |
| Maximum stroke: | 410mm |
| Handle length: | 300mm |
| Documentation: | CE Marked and comes with Certification |

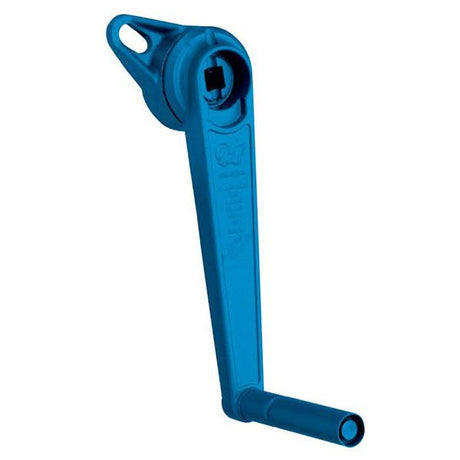

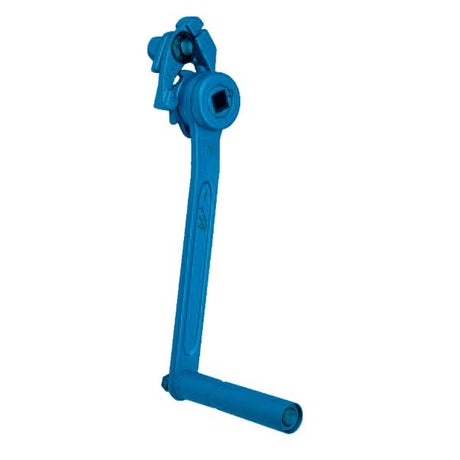

Pfaff SIFEKU Safety Ratchet Crank 17mm Square Drive
Regular price £139Description
Cast aluminium crank with folding handle.
Spring operated load pressure brake is silent in operation and weather-resistant, no ratchet required.
250mm radius for use on jacks up to 5000kg capacity.
Features:
- Without pawl - silent in operation
- Recoil proof
- Maintenance free
- Totally enclosed
- Weather and temperature resistant.
- Braking effect at both ends
- At every height the load is securely held in the pushing and pulling direction
- With folding handle
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 5000kg |
| Square drive: | 17mm |
| Crank length: | 250mm |
| Documentation: | CE Marked and comes with Certification |

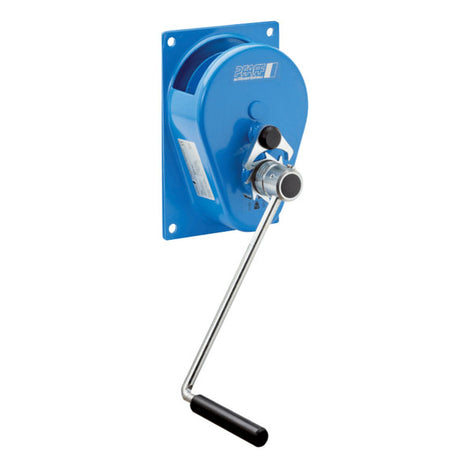

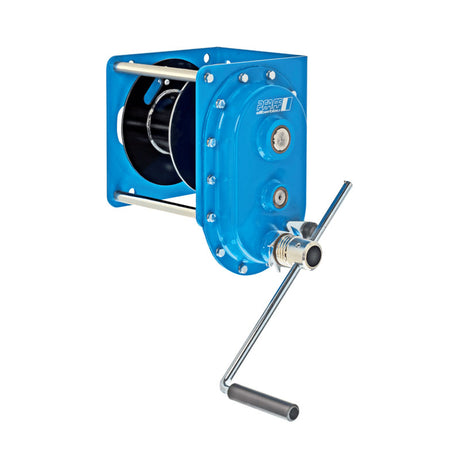

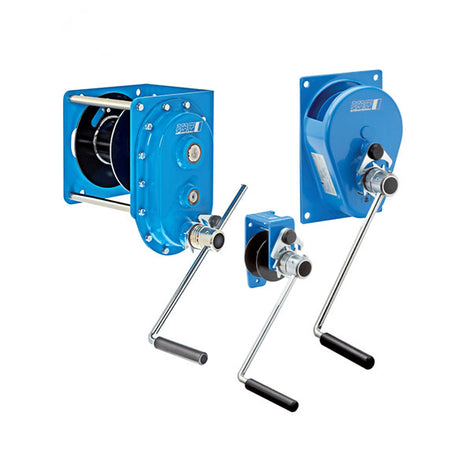

1000kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £531Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 1000kg |
| Lifting capacity - upper layer: | 360kg |
| Wire rope diameter: | 7mm |
| Wire rope capacity - 1st layer: | 1m |
| Wire rope capacity - total: | 26m |
| Lift per crank rotation: | 45mm |
| Required crank pressure: | 18 daN |
| Documentation: | CE Marked and comes with Certification |
750kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £528Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 750kg |
| Lifting capacity - upper layer: | 270kg |
| Wire rope diameter: | 7mm |
| Wire rope capacity - 1st layer: | 1m |
| Wire rope capacity - total: | 26m |
| Lift per crank rotation: | 45mm |
| Required crank pressure: | 17 daN |
| Documentation: | CE Marked and comes with Certification |
300kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £391Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 300kg |
| Lifting capacity - upper layer: | 130kg |
| Wire rope diameter: | 5mm |
| Wire rope capacity - 1st layer: | 1.3m |
| Wire rope capacity - total: | 28m |
| Lift per crank rotation: | 57mm |
| Required crank pressure: | 13 daN |
| Documentation: | CE Marked and comes with Certification |
25 Ton Pfaff MHS Hydraulic Lifting Jack
Regular price £1,272Description
Pfaff Silberblau MHS Multi-functional lifting jacks are ideal for low-height lifting or working in confined spaces.
These jacks can be used vertically or horizontally.
Jacking can be done using both the bottom foot and the head.
It has a 360 degrees rotatable claw making light work of loads.
Pump levers can be removed for even better mobility.
CE Marked, Tested & Certified.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 25 Ton |
| Jack Height: | 505mm |
| Max Overall Lifting Height: | 720mm |
| Max Toe Lifting Height: | 215mm |
| Documentation: | CE Marked and comes with Certification |
10 Ton Pfaff MHS100 Hydraulic Lifting Jack
Regular price £440Description
Pfaff Silberblau MHS Multi-functional lifting jacks are ideal for low-height lifting or working in confined spaces.
These jacks can be used vertically or horizontally.
Jacking can be done using both the bottom foot and the head.
It has a 360 degrees rotatable claw making light work of loads.
Pump levers can be removed for even better mobility.
CE Marked, Tested & Certified.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 10 Ton |
| Jack Height: | 420mm |
| Max Overall Lifting Height: | 650mm |
| Max Toe Lifting Height: | 230mm |
| Documentation: | CE Marked and comes with Certification |
5 Ton Pfaff MHS Hydraulic Lifting Jack
Regular price £334Description
Pfaff Silberblau MHS Multi-functional lifting jacks are ideal for low-height lifting or working in confined spaces.
These jacks can be used vertically or horizontally.
Jacking can be done using both the bottom foot and the head.
It has a 360 degrees rotatable claw making light work of loads.
Pump levers can be removed for even better mobility.
CE Marked, Tested & Certified.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 5 Ton |
| Jack Height: | 368mm |
| Max Overall Lifting Height: | 573mm |
| Max Toe Lifting Height: | 205mm |
| Documentation: | CE Marked and comes with Certification |
500kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £441Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 500kg |
| Lifting capacity - upper layer: | 230kg |
| Wire rope diameter: | 6mm |
| Wire rope capacity - 1st layer: | 1m |
| Wire rope capacity - total: | 20m |
| Lift per crank rotation: | 55mm |
| Required crank pressure: | 17 daN |
| Documentation: | CE Marked and comes with Certification |
