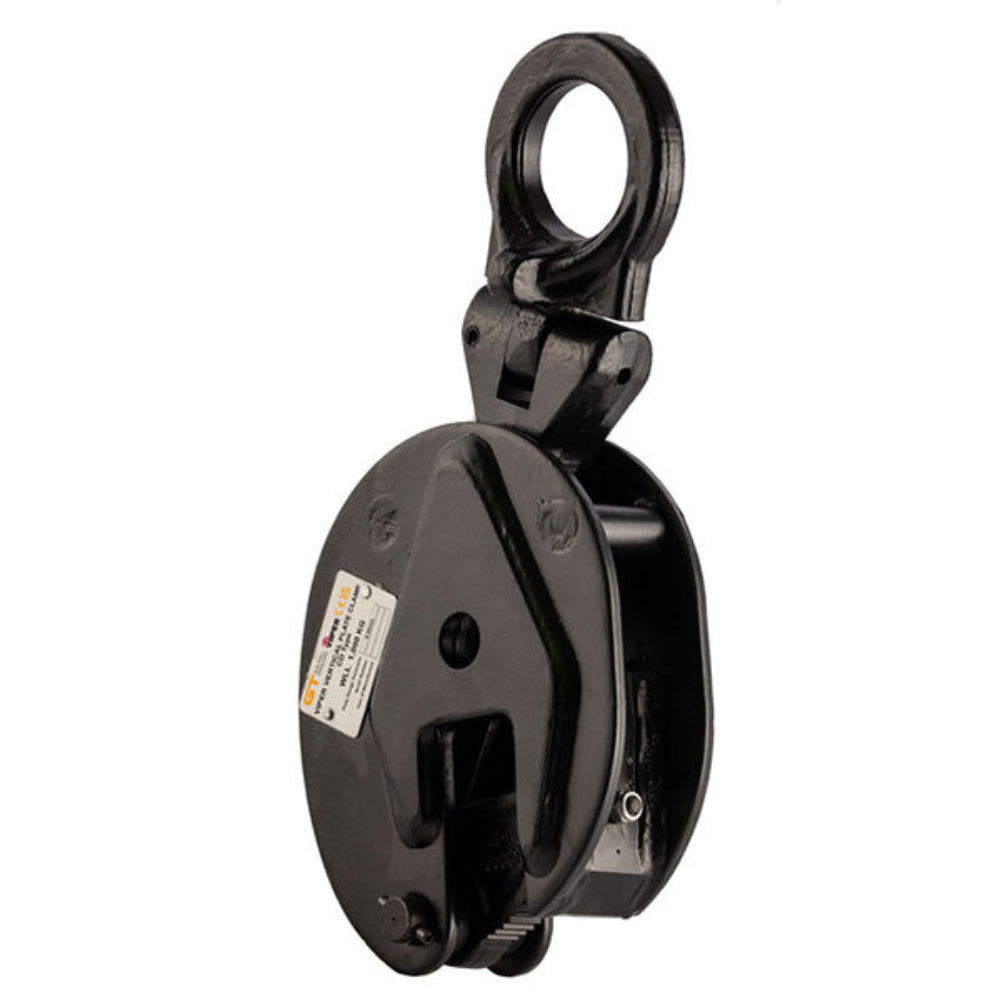

The GT Viper Vertical Plate Lifting Clamp is a mechanical plate lifting clamp for gripping, lifting and positioning plate vertically with suitable lifting equipment. It is designed for controlled plate handling in engineering, fabrication, construction and other industrial material-handling work. Use this vertical plate clamp only as part of a suitable lifting arrangement and in accordance with the manufacturer’s instructions.
Select the GT Viper model by working load limit (W.L.L.) and jaw opening, ensuring both suit the plate and the complete lifting arrangement. Current capacity options are 500 kg with a 0–15 mm jaw opening; 1,000 kg or 2,000 kg with 0–220 mm; 3,000 kg or 5,000 kg with 0–320 mm; 8,000 kg with 0–45 mm; and 12,000 kg with 50–90 mm. Weights range from 2 kg to 65 kg. Do not exceed the marked W.L.L. or choose a clamp from capacity or jaw range alone. The UK-origin GT Viper CD is listed with UKCA/CE marking where required and certification, which should be checked with the product instructions before use.
-
Brand:
Model: CD Origin: United Kingdom Capacity and jaw opening range: 500 kg | 0–15 mm
1,000 kg | 0–220 mm
2,000 kg | 0–220 mm
3,000 kg | 0–320 mm
5,000 kg | 0–320 mm
8,000 kg | 0–45 mm
12,000 kg | 50–90 mmWeight: 2 kg to 65 kg Documentation: UKCA/CE marking where required, with certification -

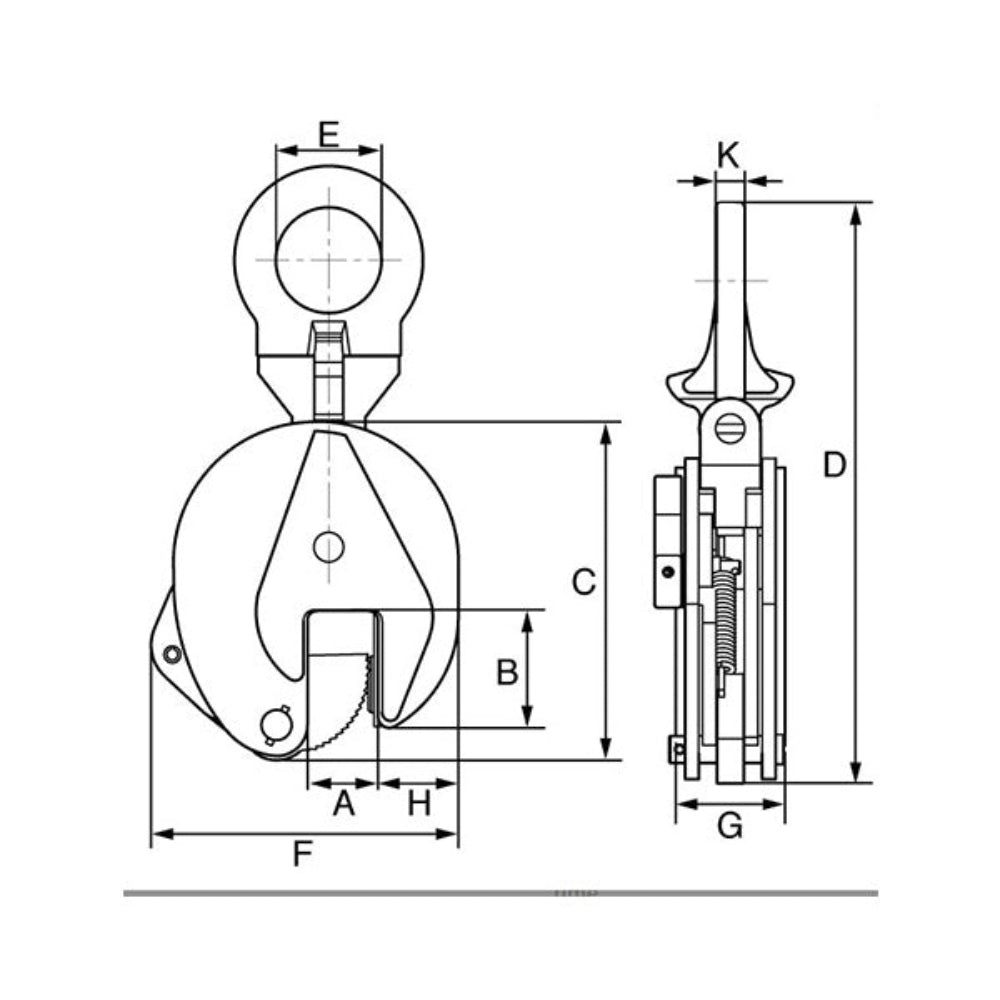

Specification sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQS gt Viper vertical plate lifting clamp
What is a GT Viper vertical plate lifting clamp and how does it work?
What is a GT Viper vertical plate lifting clamp and how does it work?
The GT Viper Vertical Plate Lifting Clamp is lifting equipment designed to lift and position plate vertically. Select the model using both the required working load limit and the plate-edge jaw opening, then use it only for the application covered by the manufacturer’s instructions.
How do I choose the correct capacity and jaw opening for a plate lifting clamp?
How do I choose the correct capacity and jaw opening for a plate lifting clamp?
Match the clamp to the plate weight and its edge thickness. The available options are 500 kg with a 0–15 mm jaw opening; 1,000 kg and 2,000 kg with 0–220 mm; 3,000 kg and 5,000 kg with 0–320 mm; 8,000 kg with 0–45 mm; and 12,000 kg with 50–90 mm. The working load limit and jaw opening must both be suitable.
Who can use this vertical plate lifting clamp and where is it suitable?
Who can use this vertical plate lifting clamp and where is it suitable?
It is intended for competent personnel carrying out lifting or positioning work where vertical plate lifting is required. It is suitable only when the selected model matches the load, plate edge and lifting arrangement, and the use complies with the manufacturer’s instructions and the site’s lifting procedures.
When should I not use a GT Viper plate lifting clamp?
When should I not use a GT Viper plate lifting clamp?
Do not use it when the load exceeds the selected working load limit, the plate edge is outside the jaw range, or the lifting arrangement is unsuitable. This is a vertical plate lifting clamp, so do not use it for horizontal lifting, turning or pulling unless the manufacturer’s instructions specifically allow that application and the equipment is rated for it.
Why do the capacity and jaw opening matter when buying a plate lifting clamp?
Why do the capacity and jaw opening matter when buying a plate lifting clamp?
Capacity and jaw opening control whether the clamp is suitable for the intended lift. A model may have enough working load limit but still be unsuitable if its jaw opening does not match the plate edge, so check both measurements before choosing between the 500 kg, 1,000 kg, 2,000 kg, 3,000 kg, 5,000 kg, 8,000 kg and 12,000 kg options.
What UK legislation, safety checks and markings apply to this plate lifting clamp?
What UK legislation, safety checks and markings apply to this plate lifting clamp?
The product specification identifies UKCA/CE marking where required, with certification. Before use, follow the manufacturer’s instructions, complete the required pre-use checks and ensure the lifting equipment is inspected and used under applicable UK site procedures and legal requirements, including LOLER and PUWER where they apply. LOLER and PUWER are legal duties for safe lifting operations, not product certifications.
