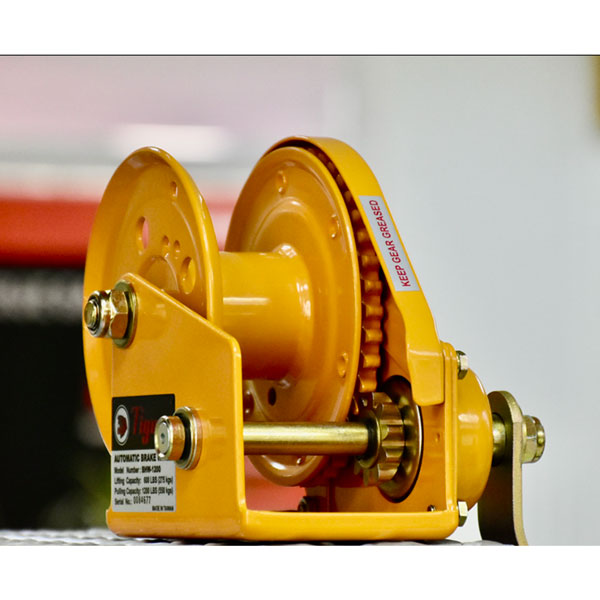

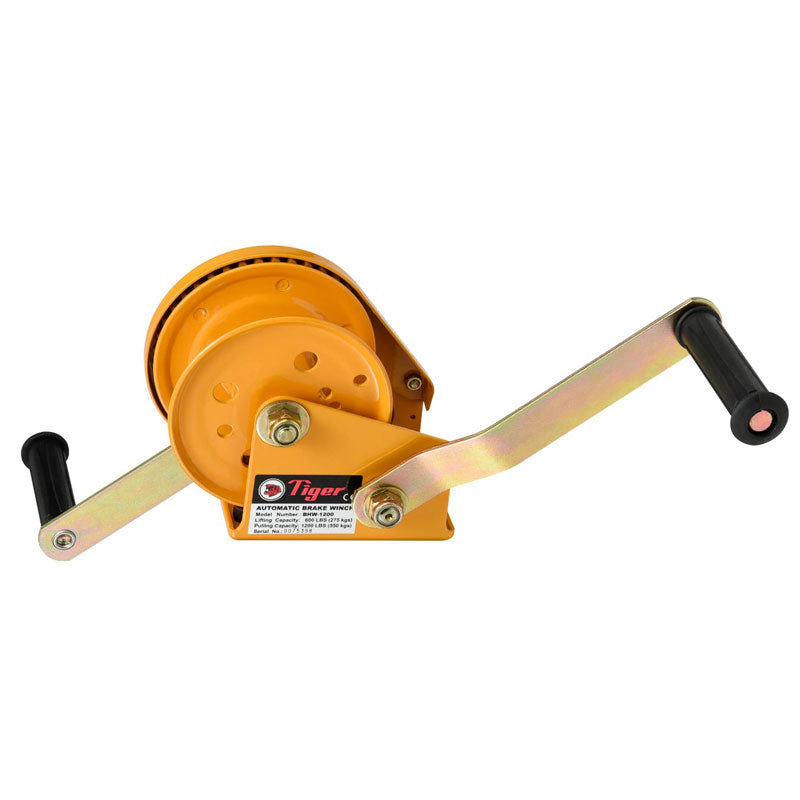

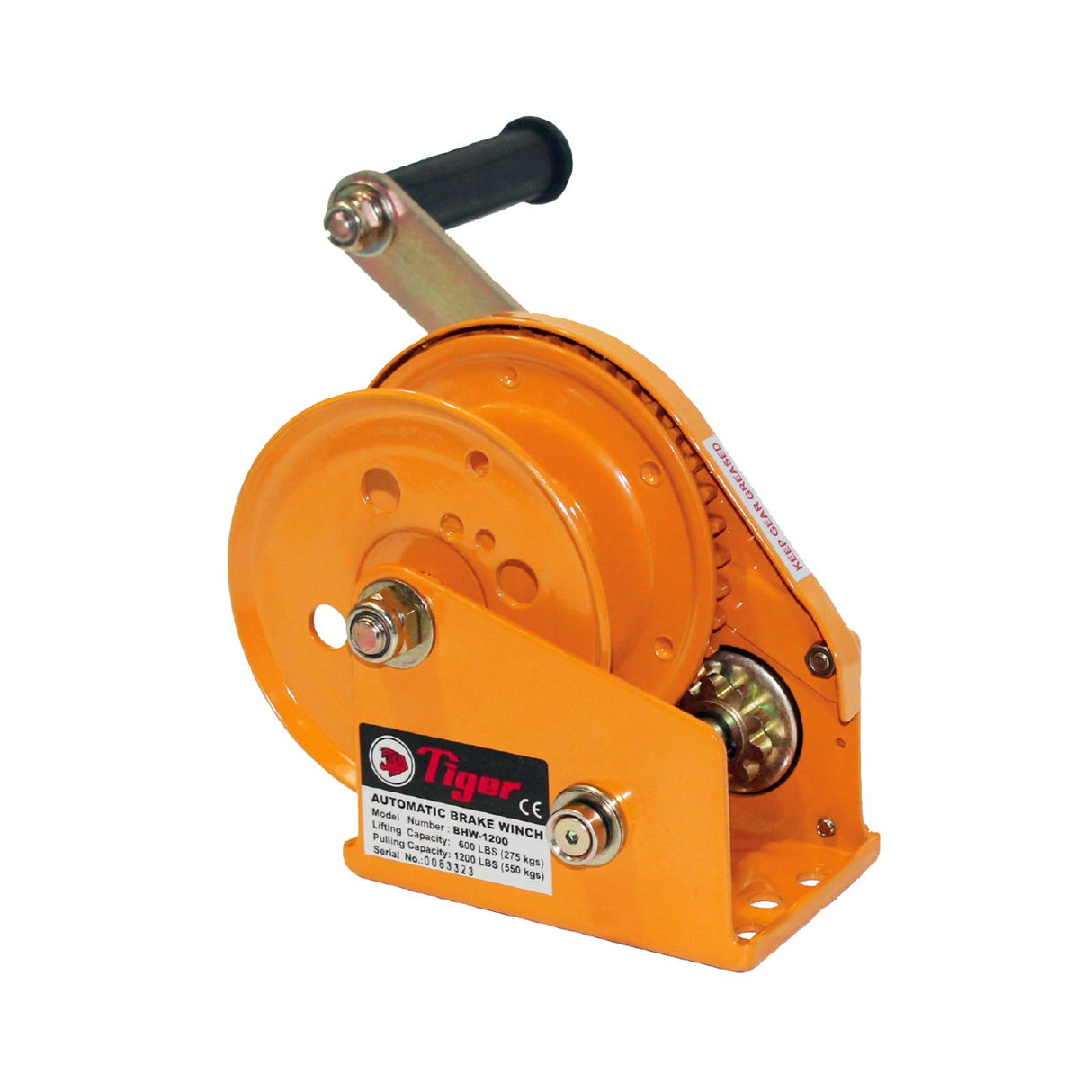

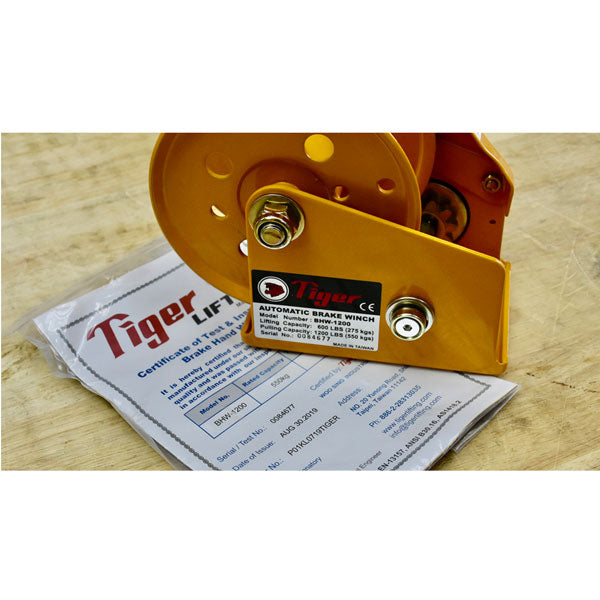

Tiger BHW Brake Hand Winch

The Tiger Brake Winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. Suitable for lifting and lowering. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 360kg to 1180kg. The BHW is compact and lightweight yet rugged and durable. Wire Rope and Straps sold separately.

These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009.

Other versions available:
Corrosion resistant, with fully protective coating.
Noiseless, with a quiet brake design.
Noiseless and Corrosion resistant model.

Dual handle pinion shaft option available - allows handle to be fitted on both sides.

Features:
• High quality multi-purpose winch.
• Automatic load-actuated brake can hold the load in any position.
• Compact, light-weight and rugged construction.
• Gears and brakes fully covered to prevent dust, dirt and rain contamination.
• Heat treated gears.
• Very low operator effort required for easy operation.
• Dual handle pinion shaft option available on all models, allows handle to be fitted on both sides.
• Dual handle options can be used with only one handle except for the BHW-0800-00 model.
• Universal mounting plate.
• Available as 360kg, 550kg, 800kg and 1180kg models.
• For cable and strap.
• Finished in high quality powder coat paint offering excellent corrosion protection.
• Fully corrosion protected versions available.
• Noiseless 1200lb (550kg) model available.
• 3D Drawings available on full range for project planning.
• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option).
