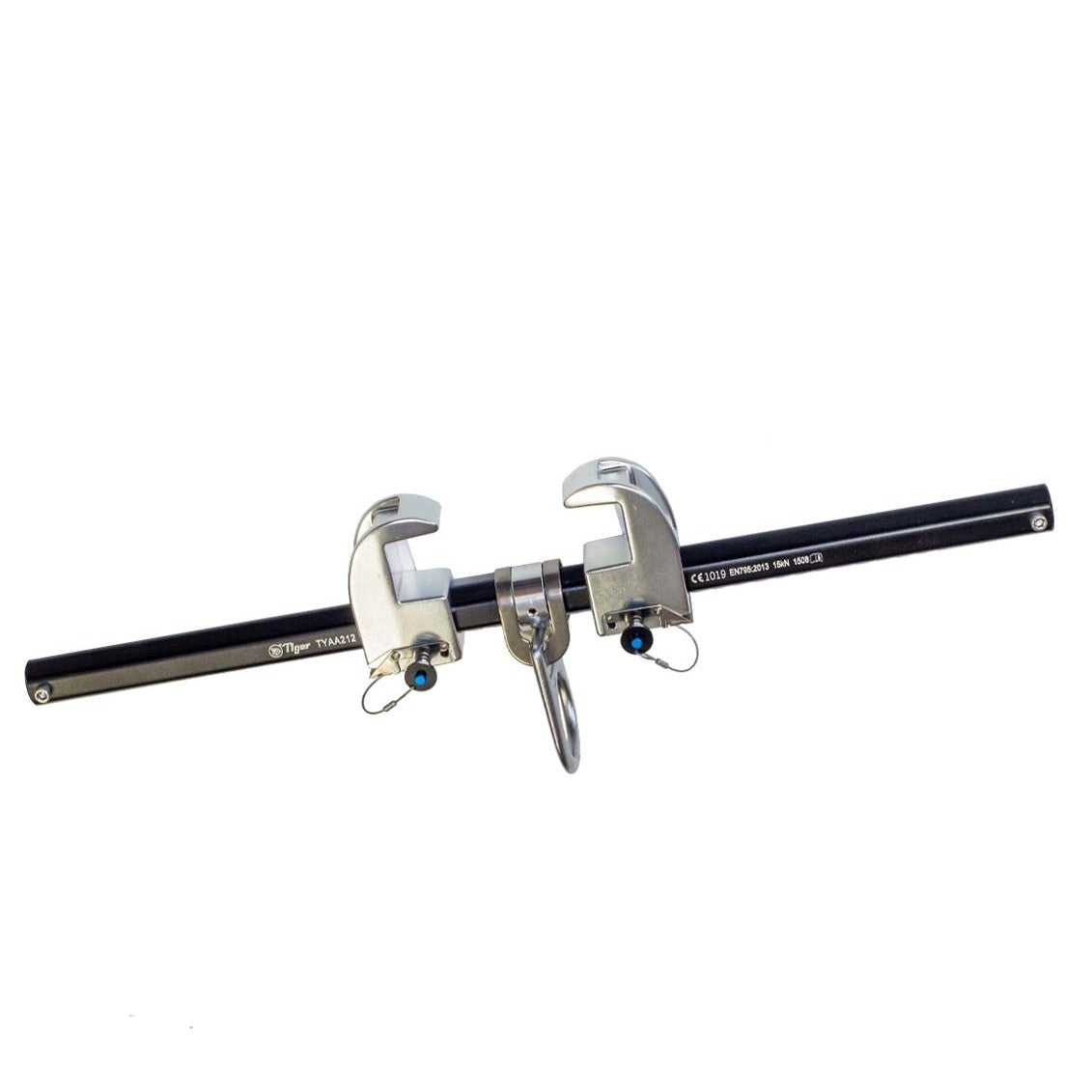

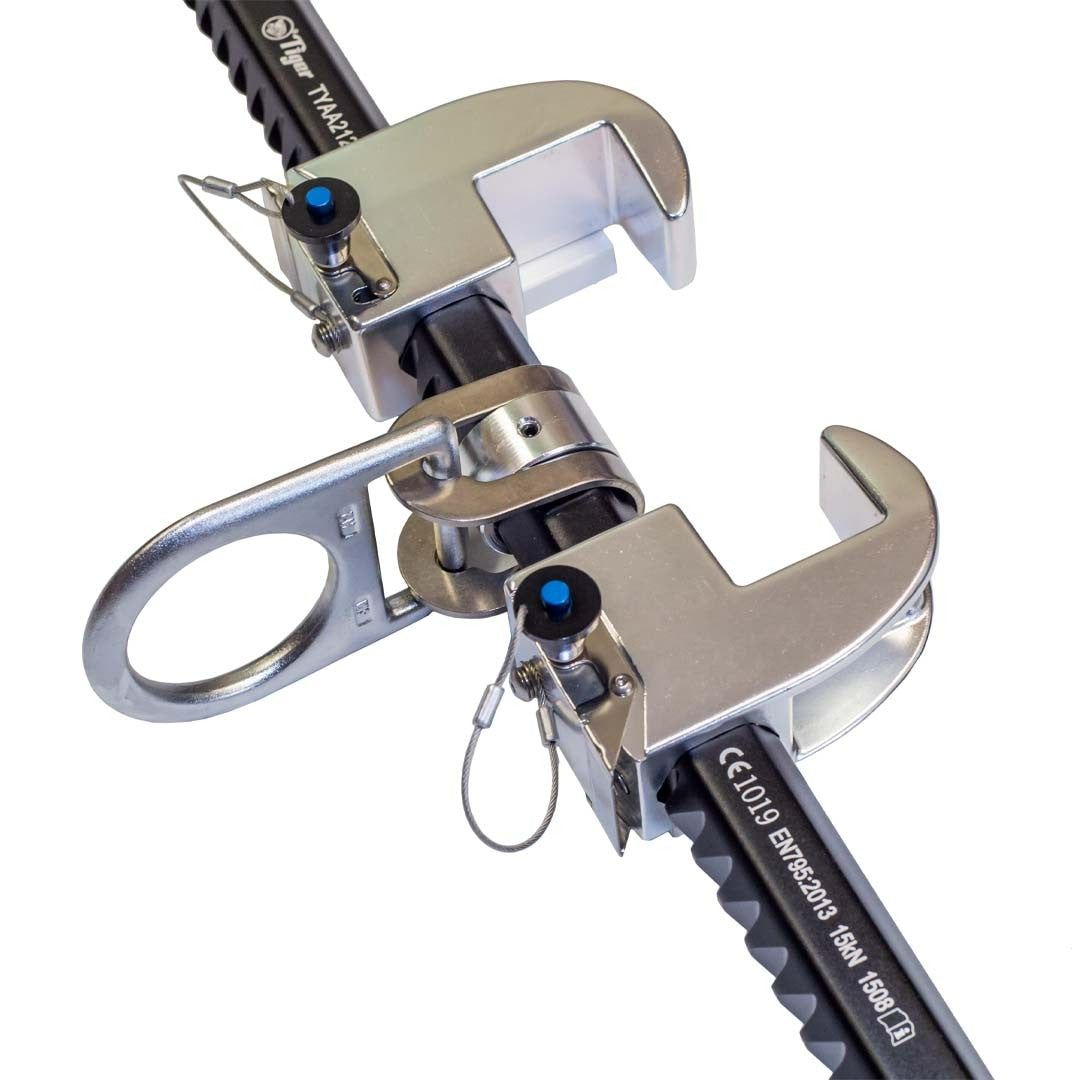

Tiger Beam Anchors
Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems. They are designed to be attached to Horizontal I-Beams with an attached personal fall arrest system (full body safety harness, shock absorbing lanyard or fall arrest block). The Tiger single jaw sliding clamp can also be attached to Vertical I-Beams (see model TYAA14).
These units meet the requirements of EN 795:2012/B and ANSI/ASSE Z359.1-2007
CE Certified - CE 1019
- Anchorage connectors for personal fall arrest systems.
- Quick and versatile anchorage point for personal fall protection equipment.
- Unit weight from 1.9kg – 2.5kg.
- Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne).
- Beam width ranges 2.5" to 24", 6.35cm to 60cm.
Model: TYAA19 Origin: United Kingdom Minimum Breaking Strength: 22.3 kN (5,000 lb/2.27 tonne)
Beam flange size options: 2.5-12 inch | 63.5 to 300mm
2.5-18 inch | 63.5-450mm
2.5 to 24 inch | 63.5-600 mm
Capacity: 140kg Documentation: CE Marked and comes with Certification
