Tiger Beam Anchors - Fixed Type - Single-Jaw Sliding
Tiger Beam Anchors - Fixed Type - Single-Jaw Sliding - From 2.5 up to 12 inch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast Despatch
Products typically despatched within 1-2 working days*
Compliance Training
Products include a certificate. Training provides a certificate upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Highest Rated Supplier
We're trusted to deliver. 100's of 5 star reviews on Trustpilot.
-

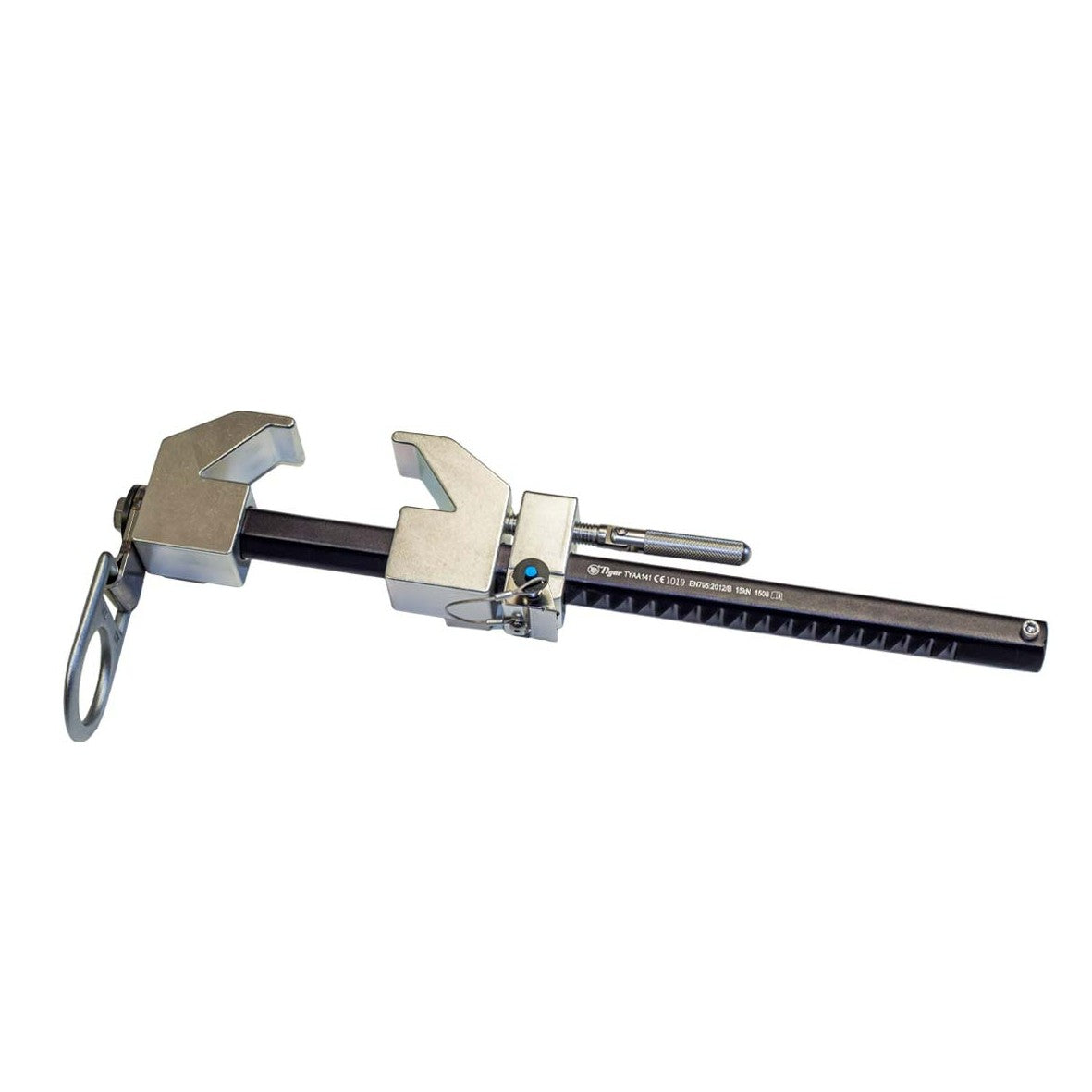

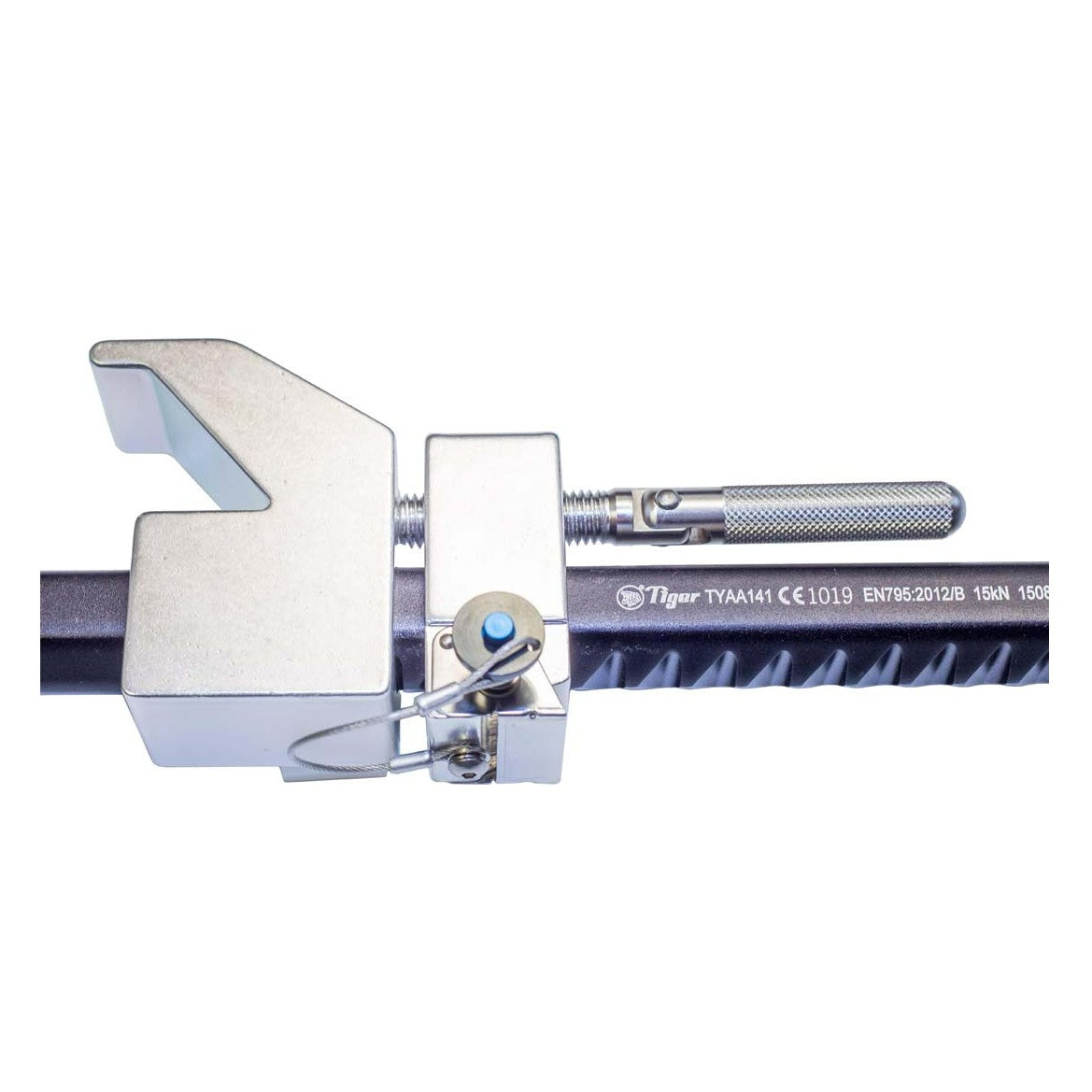

Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems. They are designed to be attached to Horizontal I-Beams with an attached personal fall arrest system (full body safety harness, shock absorbing lanyard or fall arrest block). This Tiger single jaw sliding clamp can also be attached to Vertical I-Beams.
These units meet the requirements of EN 795:2012/B and ANSI/ASSE Z359.1-2007 and are CE Certified - CE 1019.
Features & benefits:
• Anchorage connectors for personal fall arrest systems.
• Quick and versatile anchorage point for personal fall protection equipment.
• Unit weight from 1.9kg – 2.5kg.
• Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne).
• Beam width ranges 2.5" to 24", 6.35cm to 60cm. -
Brand:
Model: TYAA14 Origin: United Kingdom Beam flange size options:
From 2.5 up to 12 inch (63.5 - 300mm)
From 2.5 up to 18 inch (63.5 - 450mm)
From 2.5 up to 24 inch (63.5 - 600mm)
Minimum Breaking Strength: 22.3 kN (5,000 lb/2.27 tonne)
Capacity: 140kg Documentation: UKCA / CE Mark where required and with Certification -
Specification sheet:
