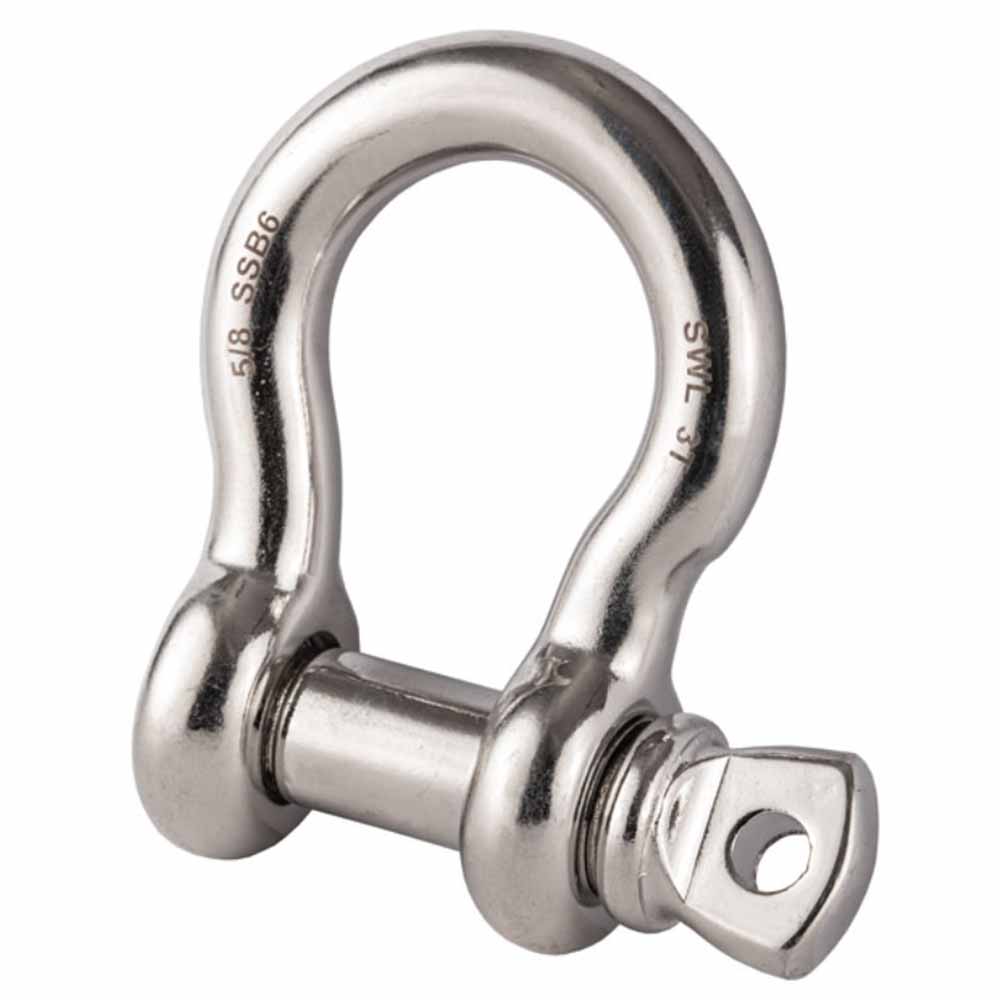

GT Stainless Steel Load Rated Screw Collar Pin Bow Shackle

The GT Stainless Steel Collar Pin Bow Shackle provides a detachable connection in a compatible lifting or rigging assembly. Its bow-shaped body accommodates the attachment, while the removable screw collar pin allows the connection to be assembled and dismantled.

Choose from working load limits of 0.33t, 0.5t, 0.75t, 1t, 2t and 3t to suit the assessed lifting arrangement. Check the selected shackle’s rating against the intended load and the manufacturer’s loading instructions. Do not select by physical size alone or exceed the stated working load limit.

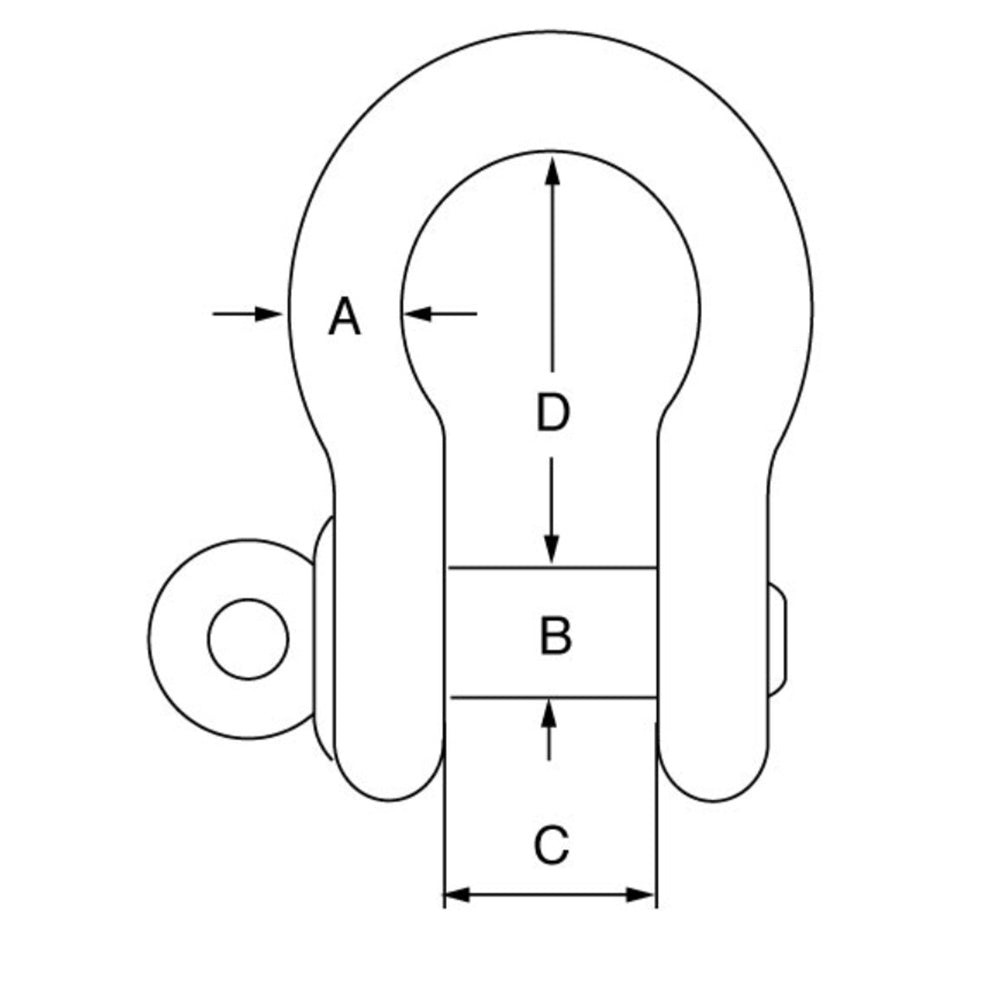

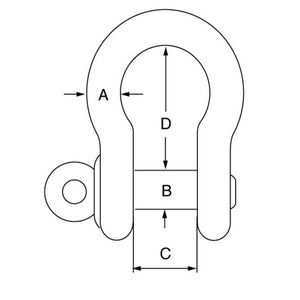

Check the pin diameter, internal clearance and overall dimensions against the components you intend to connect. Use the technical drawing linked in the PDF tab to confirm the fit of your selected size. A suitable working load limit does not, by itself, establish compatibility.

Consider a screw collar pin shackle when you need a removable connection that can be dismantled during equipment setup or removal. For a connection that will remain assembled or be subject to movement or vibration, confirm the required pin-retention arrangement with the manufacturer before choosing between designs.

The listing identifies stainless steel construction, but does not specify the steel grade or establish suitability for marine, saltwater or chemical exposure. Confirm the material grade and the manufacturer’s environmental limitations before ordering for a corrosive environment.

In Great Britain, workplace lifting with this stainless steel bow shackle falls within the scope of LOLER and PUWER. These regulations cover matters such as suitable equipment, safe use, maintenance and thorough examination by a competent person. They are legal duties, not product certifications. Check the selected shackle’s marked working load limit and supplied documentation, follow the manufacturer’s instructions and ensure it is covered by the lifting arrangement’s inspection and examination procedures.
