GT Stainless Steel Dee Shackle With Screw Collar Pin

SKU: SSLRSCDS0.33
£9.00 (incl VAT) £7.50 (excl VAT)
View full description

Fast Shipping

Products typically dispatched within 1-2 working days*

Certification

Products include certification and training courses issue certificates upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Best Rated

Trusted across the UK for lifting expertise and industry knowledge

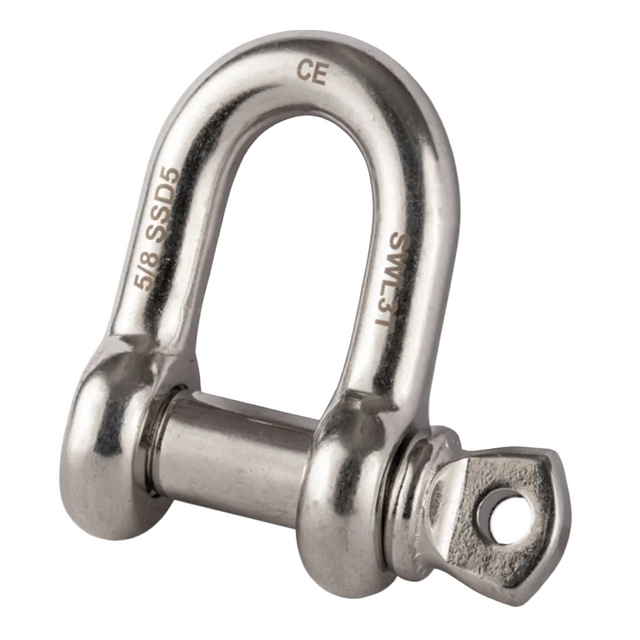

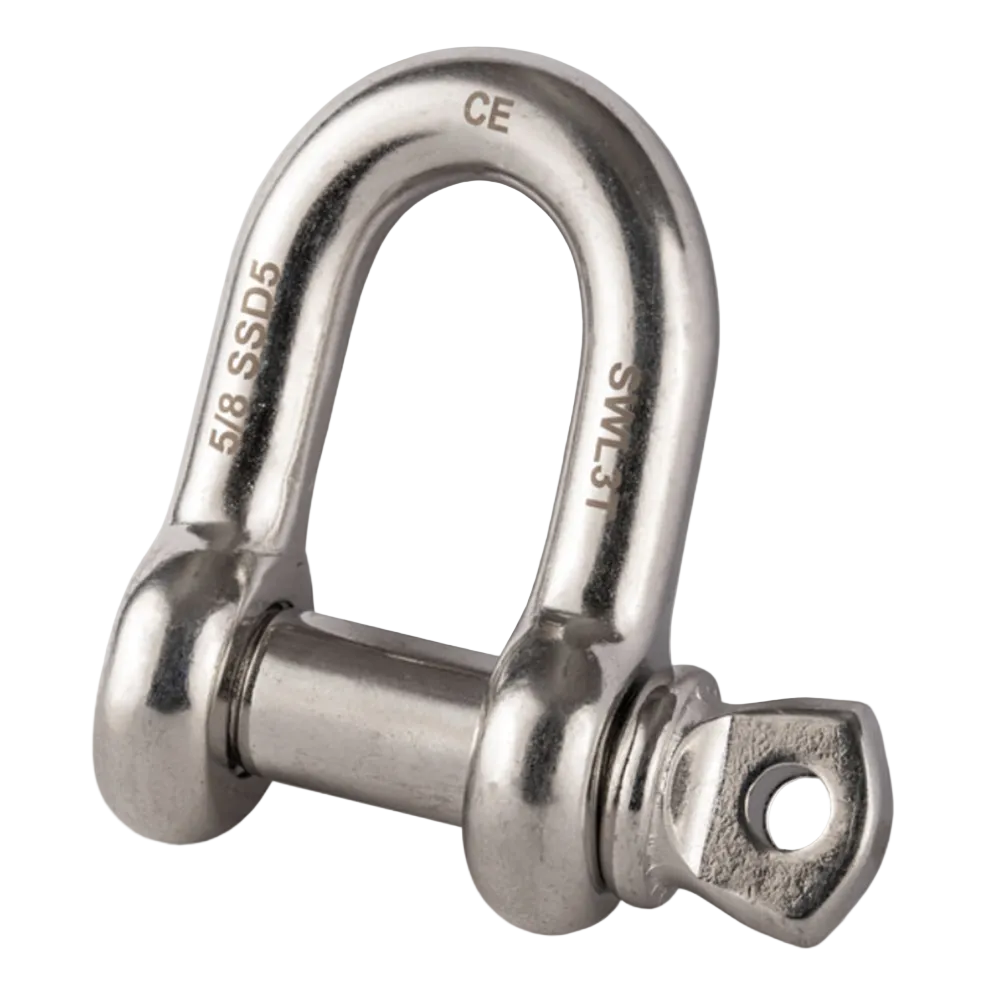

  • The GT Stainless Steel Screw Collar Pin Dee Shackle connects compatible components in lifting and rigging arrangements. Its stainless steel Dee-shaped body has a removable screw collar pin, making it straightforward to assemble or dismantle the connection when changing equipment. The range offers working load limits from 0.33t to 6t, so you can select a size to suit the load and the planned lifting arrangement.

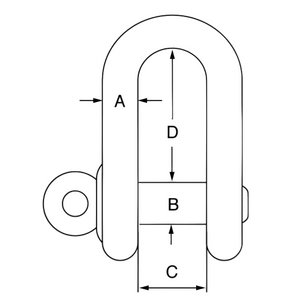

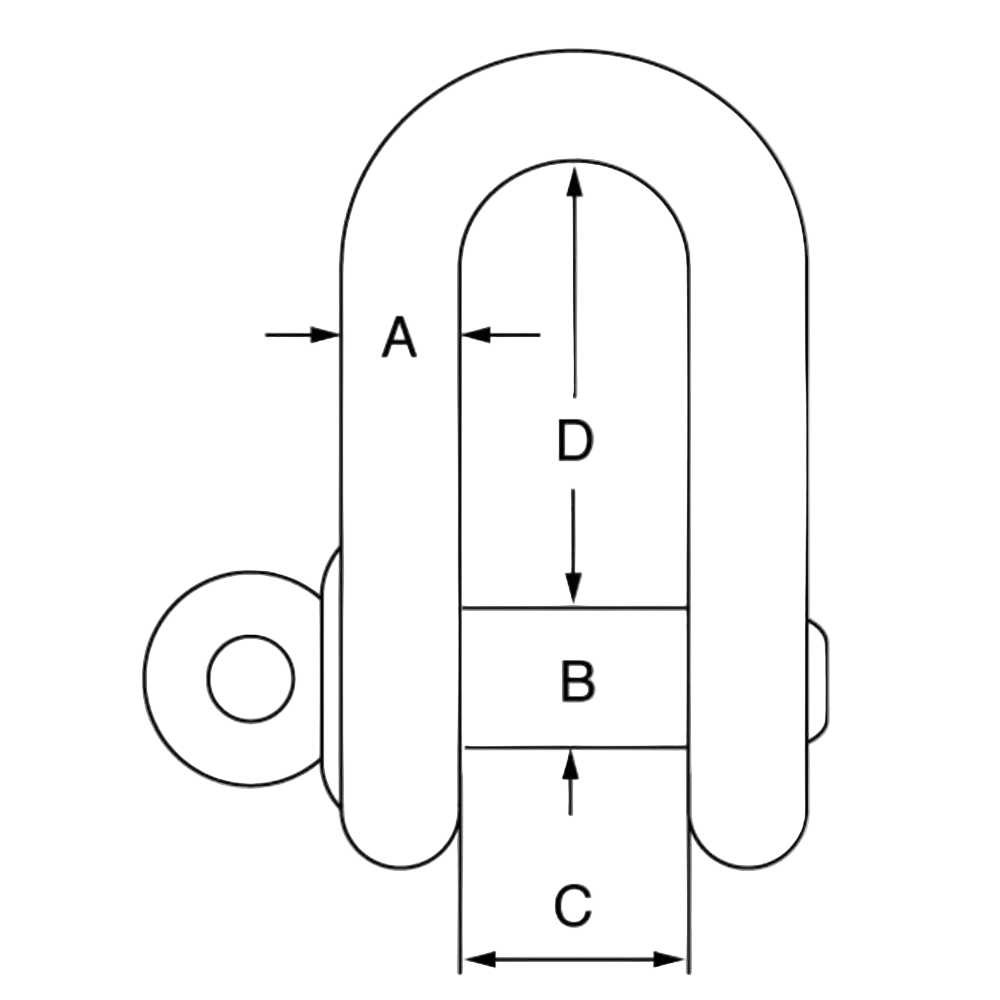

    Capacity is only part of choosing the right shackle. Check the pin diameter, internal clearance and overall dimensions against the components you need to connect, using the specification sheet in the PDF tab. Follow the manufacturer's instructions for loading direction, operating conditions and securing the pin. Before each use, check the body and pin for wear, damage or distortion, and keep within the marked working load limit.

  • Model: SSLRSCDS
    Origin: United Kingdom
    Working load limits: 0.33t to 6t
    Material: Stainless steel
    Shackle type: Dee shackle
    Pin type: Screw collar pin
  • Specification sheet: Download stainless steel screw collar pin Dee shackle specification sheet

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FAQs About GT Stainless Steel Dee Shackle With Screw Collar Pin

What is the GT stainless steel screw collar pin Dee shackle used for?

It provides a detachable connection between compatible lifting and rigging components. The stainless steel Dee-shaped body is closed with a removable screw collar pin. Choose a working load limit and dimensions that suit the assessed lifting arrangement.

Who should select and use this stainless steel Dee shackle?

Selection and use should be carried out by people competent in the lifting task. They need to assess the load, connection dimensions and loading direction, and follow the manufacturer's instructions. A suitable working load limit alone does not confirm that the shackle fits the arrangement.

Where can the GT stainless steel Dee shackle be fitted?

Fit it at a compatible connection point within an assessed lifting or rigging arrangement. Compare the pin diameter, internal clearance and overall dimensions with the components being joined. Confirm the intended loading direction and operating conditions with the manufacturer's instructions rather than assuming stainless steel suits every environment.

When should I choose a screw collar pin Dee shackle?

Consider this design when the lifting arrangement needs a removable connection for equipment setup or removal. Check that the manufacturer's instructions permit the intended use. If the connection will remain assembled or experience movement or vibration, confirm the required pin-retention method before choosing a screw collar pin or bolt-type shackle.

Why do shackle dimensions matter as well as working load limit?

The shackle needs both sufficient rated capacity and a suitable fit. This GT stainless steel Dee shackle range offers working load limits from 0.33t to 6t, but the selected pin diameter and internal clearance must also match the connected components. Use the specification sheet to compare sizes and confirm suitability for the planned loading direction.

How do I check the GT stainless steel Dee shackle before lifting?

Check the selected shackle's working load limit and supplied documentation against the lifting plan. Inspect the body and pin for wear, damage or distortion, and secure the screw collar pin as the manufacturer instructs. Confirm the connection fits correctly and do not exceed the marked working load limit. Verify any required conformity markings from the documentation for the selected size.
