GT Rectangular Base Deckplate

SKU: DP10
£3.00 (incl VAT) £2.50 (excl VAT)
View full description

Fast Shipping

Products typically dispatched within 1-2 working days*

Certification

Products include certification and training courses issue certificates upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Best Rated

Trusted across the UK for lifting expertise and industry knowledge

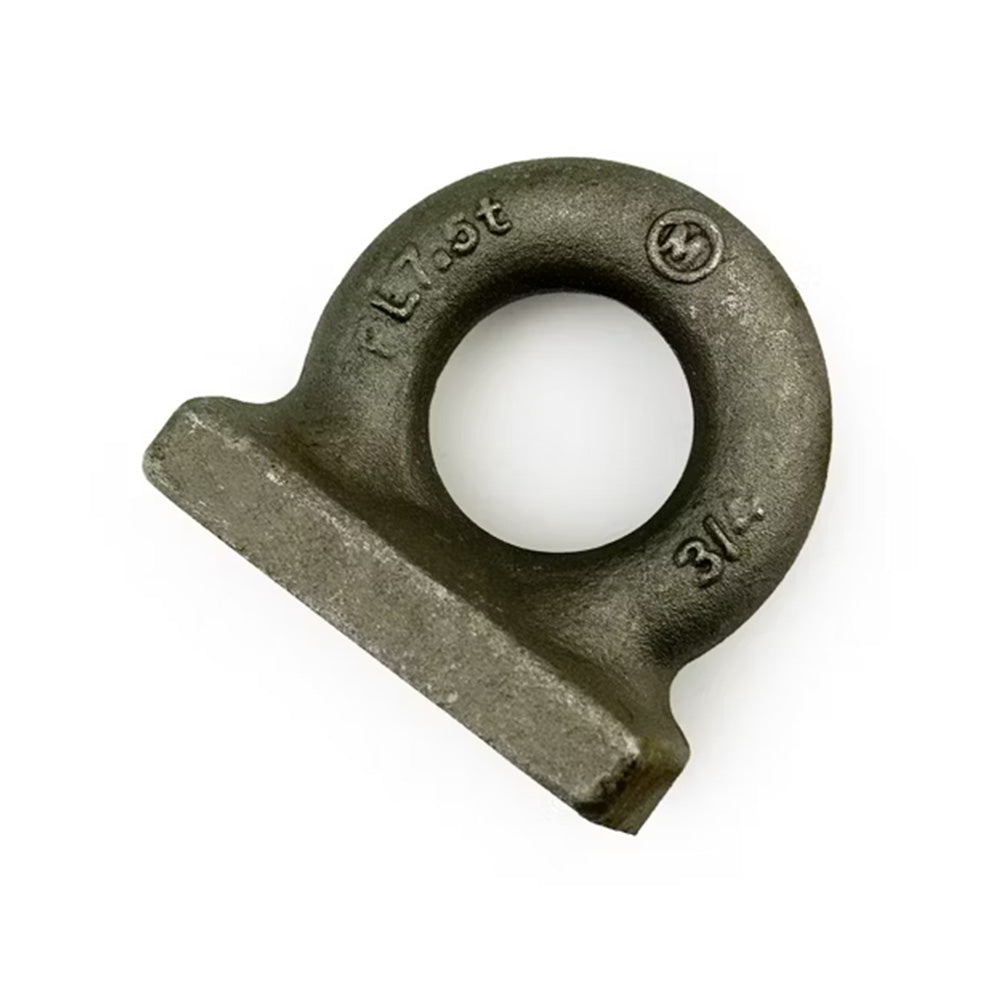

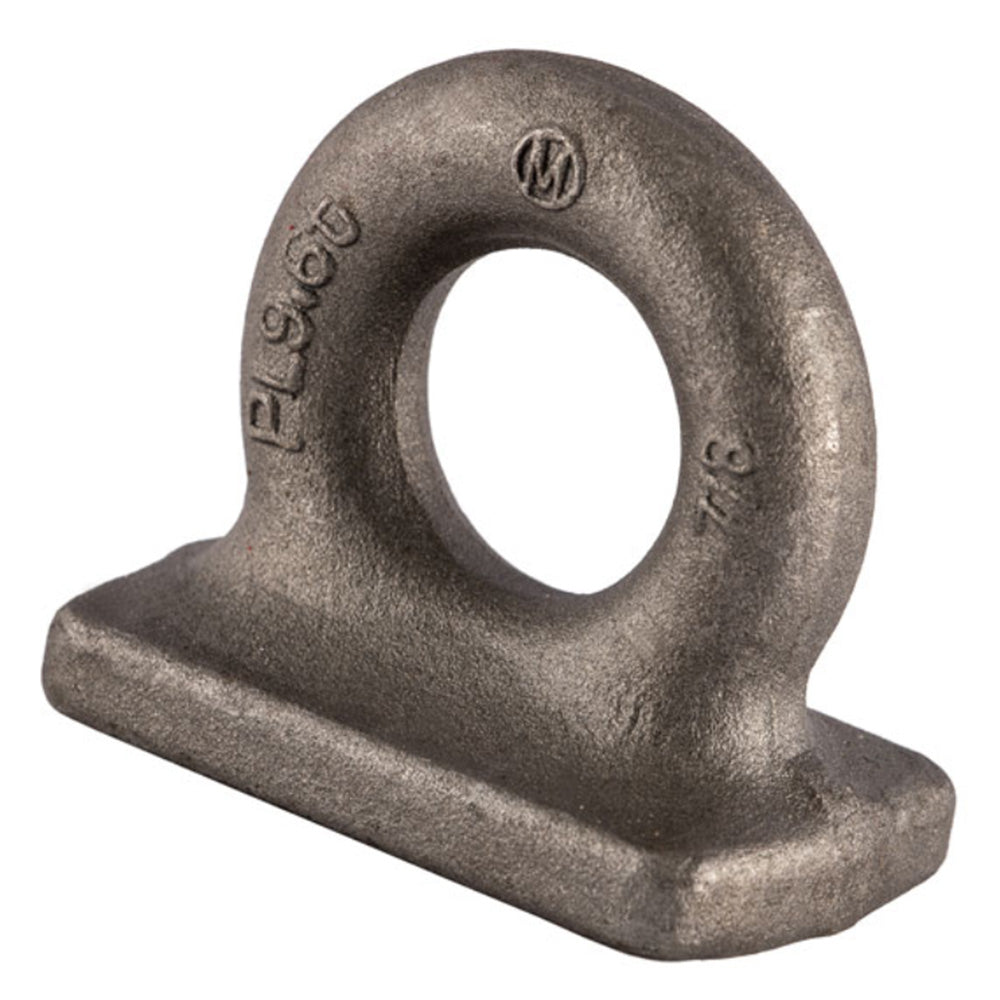

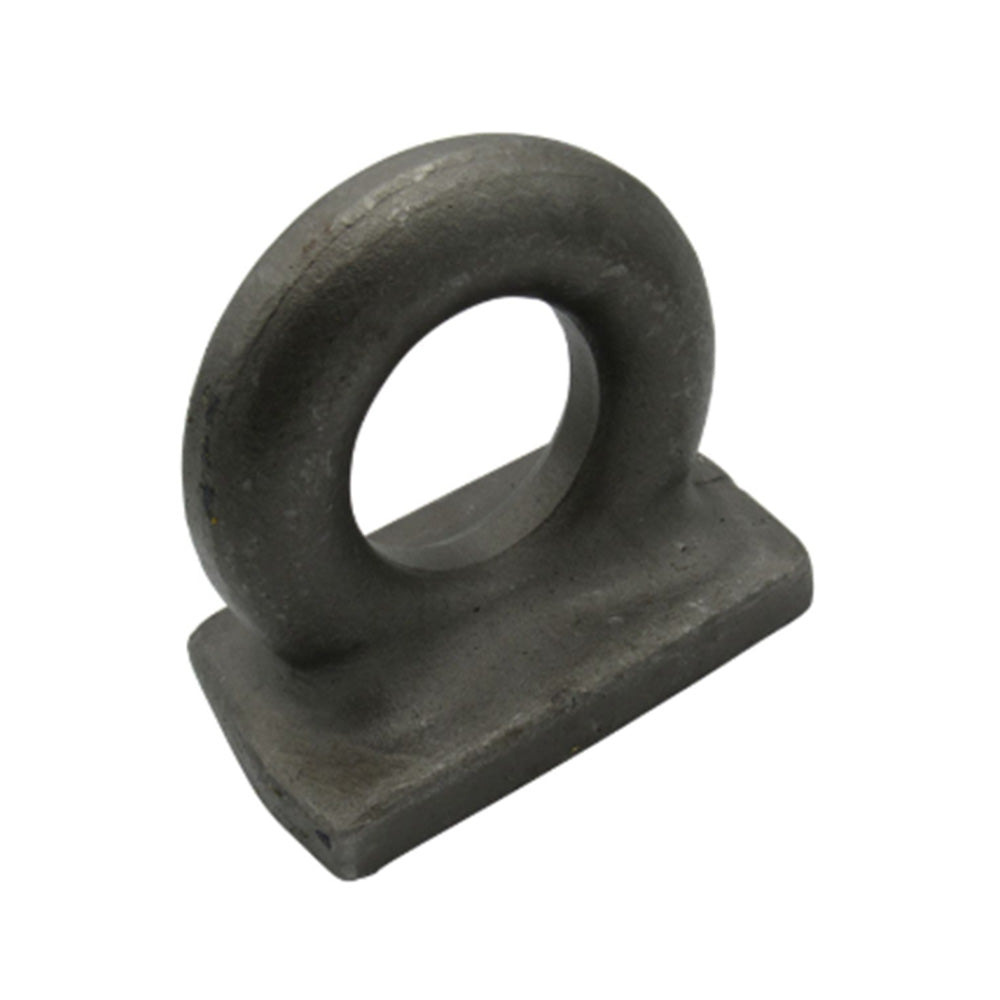

  • The GT Rectangular Base Deckplate is made from high tensile steel with a self colour finish and a design based on the Admiralty Pattern. The DP range covers nominal sizes from 10mm to 50mm, with model-specific dimensions and weights to help you select the right Deckplate for your installation.

    Working load limit depends on correct welding procedures being carried out. The listed proof loads are not working load limits and must not be used as operating capacities. Each Deckplate is marked with CE, size, traceability code and proof load; 2.1 and 2.2 certificates are available.

  • Models: DP
    Origin: United Kingdom
    Material: High tensile steel
    Finish: Self colour
    Weight: 0.14kg to 25kg
    Nominal Size: 10mm to 50mm
    Proof Load (P.L.): 2t to 50t. These are proof loads, not working load limits.
    Markings: CE, size, traceability code and proof load
    Documentation: 2.1 and 2.2 certificates available

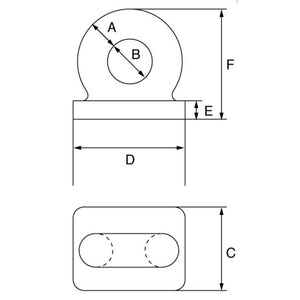

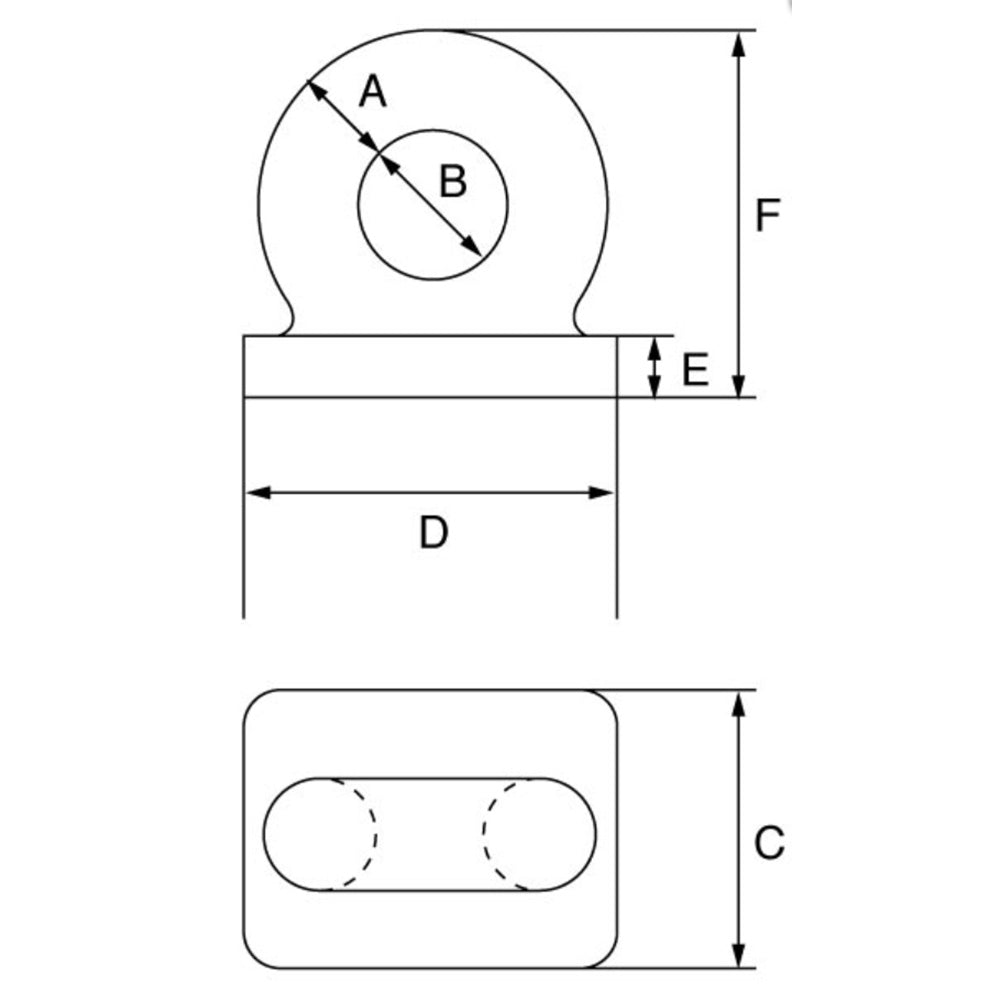

  • Specification sheet: GT Rectangular Base Deckplate specification sheet PDF

    2.1 and 2.2 certificates are available.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FAQs About GT Rectangular Base Deckplate

What is the GT Rectangular Base Deckplate, and what is it made from?

The GT Rectangular Base Deckplate is a weld-on, Admiralty Pattern deckplate made from high tensile steel with a self colour finish. The DP range includes 11 models with nominal sizes from 10mm to 50mm. Select using the full model dimensions and installation requirements; working load limit depends on correct welding procedures.

Who should select and fit the GT Rectangular Base Deckplate?

Selection and fitting should be assessed by someone competent to specify the deckplate and welding procedure for the intended installation. The manufacturer states that working load limit is subject to correct welding procedures being carried out; the listed proof load must not be treated as an operating capacity.

Where can the GT Rectangular Base Deckplate be fitted?

Fit the GT Rectangular Base Deckplate only in an installation assessed as suitable for the selected model and welding procedure. Check the model-specific dimensions against the intended fitting location and follow the manufacturer's installation requirements. The supplied specification does not establish suitability for a particular supporting structure.

When should I choose a different GT Rectangular Base Deckplate size?

Choose a different model when its dimensions are needed to suit the assessed installation. The DP range covers nominal sizes from 10mm to 50mm, with weights from 0.14kg to 25kg. Compare the full model dimensions and welding requirements rather than selecting by nominal size or proof load alone; neither establishes the installation's working load limit.

Why is the GT Rectangular Base Deckplate's proof load not its working load limit?

The supplied specification lists proof loads from 2 to 50 tonnes across the DP range, not working load limit ratings. These figures must not be used as allowable operating capacities. The manufacturer states that W.L.L. is subject to correct welding procedures being carried out, so confirm the permitted working load for the selected model and installation before use.

How can I check the GT Rectangular Base Deckplate’s installation and use against applicable UK legislation?

Start by reviewing the manufacturer’s instructions and available 2.1 and 2.2 certificates, and check the deckplate’s CE, size, traceability code and proof-load markings against the selected DP model. Ask a competent person to assess the applicable UK requirements for the intended installation and use, including the supporting structure, welding procedure, permitted working load and inspection arrangements. Proof load is not the working load limit, and markings or certificates alone do not establish that the completed installation meets all applicable legislation.
