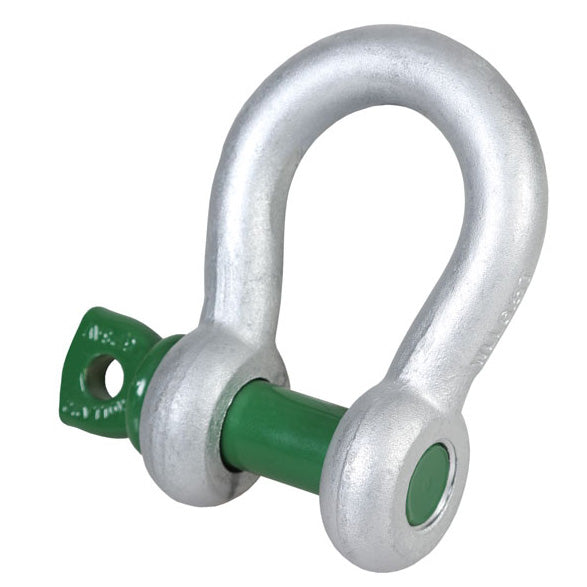

Green PinĀ® Grade 6 Standard Bow Shackle with Screw Collar Pin is a high-tensile steel bow shackle for secure, detachable connections in professional lifting and rigging applications. Its bow-shaped body provides space for suitable lifting and rigging connections, while the screw collar pin allows the shackle to be fitted, removed or repositioned when a connection needs to be changed or dismantled. Manufactured from quenched and tempered Grade 6 steel with a hot-dip galvanised finish, it is the Green PinĀ® GPSCB model and is available across working load limits from 0.33t to 55t
Select the correct size and variant for the intended load, lifting arrangement and required working load limit, and never exceed the WLL. Depending on size, the range conforms to BS EN 13889, with sizes from 2t upwards also complying with ASME B30.26. The product information identifies UKCA / CE marking where required, so check the certification supplied with the selected size before use. This shackle is intended for professional lifting and rigging use, and suitability must be confirmed for the specific connection, load and operating conditions. -
Brand:
Model: GPSCB Origin: United Kingdom Working load limits: 0.33t to 55t Material: Quenched and tempered Grade 6 steel Finish: Hot-dip galvanised Standards: BS EN 13889; ASME B30.26 for sizes from 2t upwards Certification: UKCA / CE marking where required. Refer to the certification supplied with the selected size. -

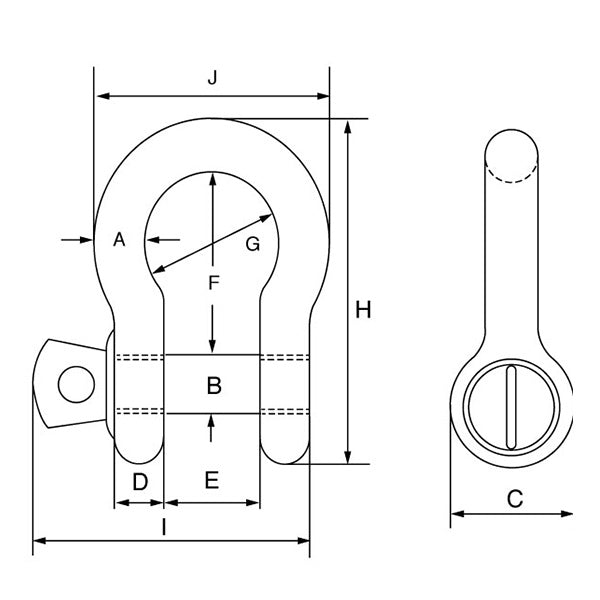

Specification sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQS ABOUT Green PinĀ® Grade 6 Standard Bow Shackle with Screw Collar Pin
What is the Green PinĀ® Grade 6 Standard Bow Shackle with Screw Collar Pin used for?
What is the Green PinĀ® Grade 6 Standard Bow Shackle with Screw Collar Pin used for?
The Green PinĀ® Grade 6 Standard Bow Shackle with Screw Collar Pin is a lifting and rigging shackle used to create a secure, detachable connection between compatible lifting components. Its bow-shaped body provides additional space for suitable connections, while the threaded screw collar pin allows the shackle to be fitted and removed when required.
How do I choose the correct Green PinĀ® bow shackle size and working load limit?
How do I choose the correct Green PinĀ® bow shackle size and working load limit?
Choose the correct bow shackle by considering the load being lifted, the lifting configuration and the components being connected. The Green PinĀ® Standard Bow Shackle with Screw Collar Pin is available in working load limits from 0.33 to 55 tonnes, but the shackle size, pin type and connection arrangement must also be suitable for the intended lifting operation.
Why choose a bow shackle with a screw collar pin?
Why choose a bow shackle with a screw collar pin?
A bow shackle with a screw collar pin is designed for lifting arrangements where a secure, removable connection is required. The threaded pin can be fitted and removed when assembling or dismantling compatible lifting and rigging equipment.
What is the difference between a bow shackle and a dee shackle?
What is the difference between a bow shackle and a dee shackle?
A bow shackle has a wider, rounded body that provides more space for suitable lifting and rigging connections. A dee shackle has a narrower, straight-sided body. The correct shackle type depends on the number and type of components being connected and the specific lifting arrangement.
What is the Green PinĀ® Grade 6 Standard Bow Shackle made from?
What is the Green PinĀ® Grade 6 Standard Bow Shackle made from?
The Green PinĀ® Standard Bow Shackle with Screw Collar Pin is manufactured from quenched and tempered Grade 6 steel and finished with hot-dip galvanising. It is available in working load limits from 0.33 to 55 tonnes, allowing users to select a suitable size for the intended lifting arrangement.
What UK regulations and standards apply to the Green PinĀ® Standard Bow Shackle?
What UK regulations and standards apply to the Green PinĀ® Standard Bow Shackle?
When used as lifting equipment at work in the UK, relevant requirements may include the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER). Depending on size, the Green PinĀ® Standard Bow Shackle with Screw Collar Pin conforms to BS EN 13889, with sizes from 2 tonnes upwards also complying with ASME B30.26. LOLER is UK legislation governing lifting equipment and lifting operations, not a product certification.
