GT Cobra Grade 80 Weld on D Ring

SKU: G80WDR1
£10.00 (incl VAT) £8.33 (excl VAT)
View full description

Fast Shipping

Products typically dispatched within 1-2 working days*

Certification

Products include certification and training courses issue certificates upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Best Rated

Trusted across the UK for lifting expertise and industry knowledge

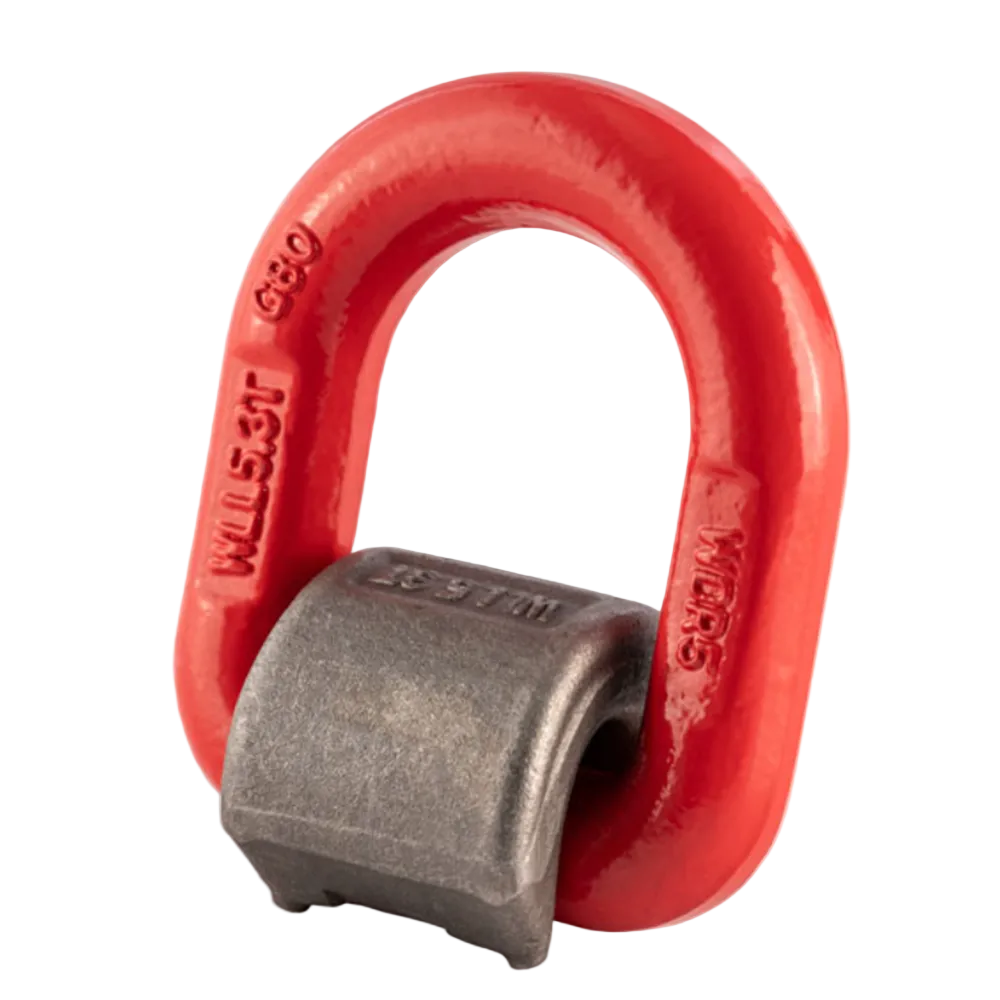

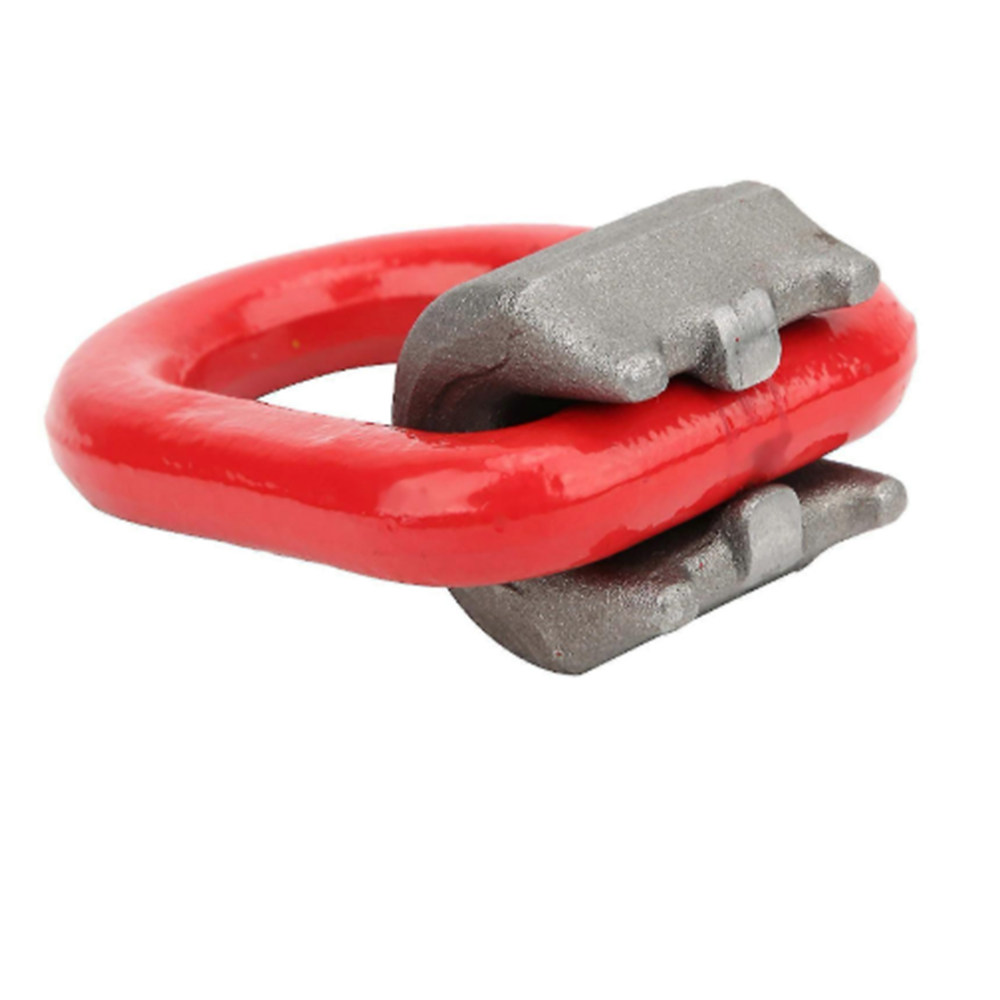

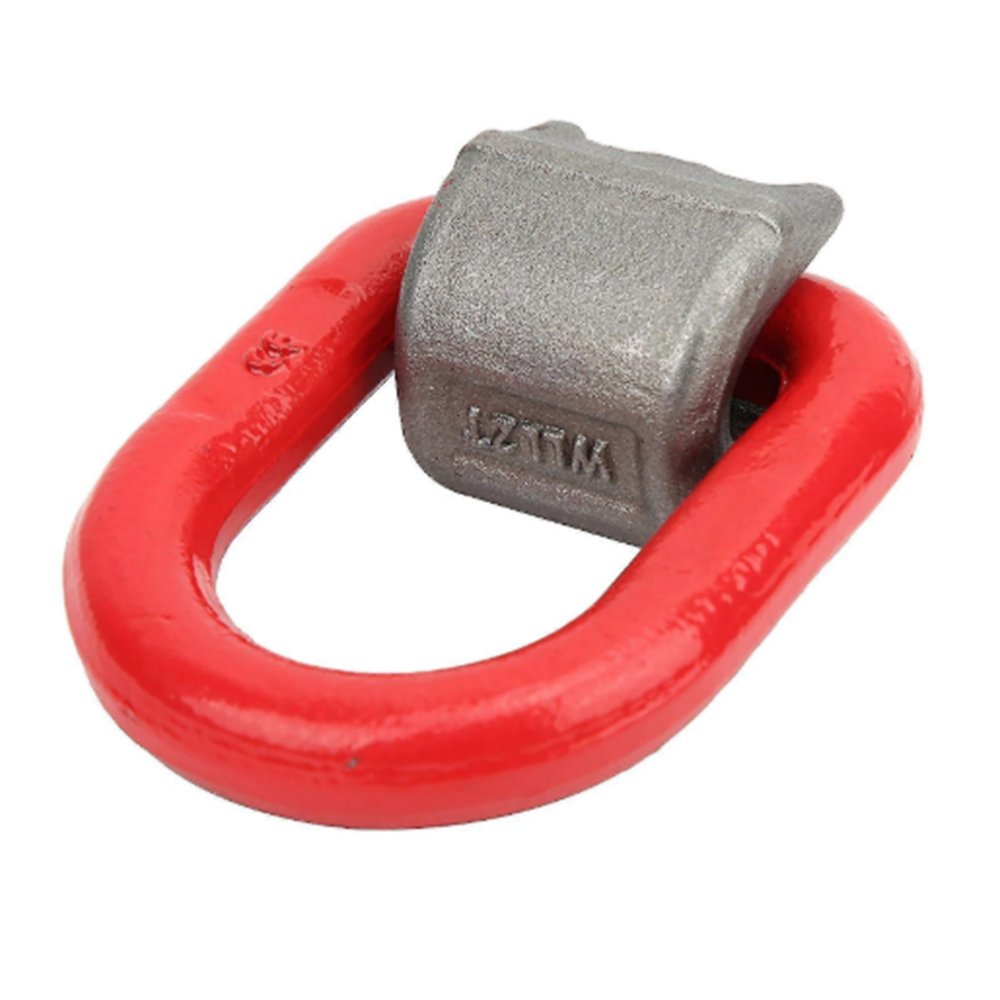

  • The GT Cobra Grade 80 Weld On D Ring provides a permanent lifting attachment on a suitably designed supporting structure. It combines a Grade 80 alloy steel ring with a 16 Mn carbon steel base and a red painted finish. The manufacturer's range covers working load limits of 1.12, 2, 3.15, 5.3, 8, 10 and 15 tonnes, with different ring and base dimensions for each size.

    Choose the D ring by its marked working load limit, dimensions and suitability for the planned lifting arrangement. Installation must be carried out by a qualified welder following GT Lifting's welding and safety instructions; the supporting structure and completed weld also need to be suitable for the load. Each ring is marked with CE, working load limit, material grade and manufacturer identification, and a Declaration of Conformity is available.

  • Models: G80WDR
    Origin: United Kingdom
    Finish: Red painted
    Working load limit options: 1.12 to 15 tonnes
    Minimum breaking load: 4 times the WLL, not an allowable operating load
    Markings: CE, WLL, material grade and manufacturer's ID
  • Specification sheet: Download GT Cobra Grade 80 weld-on D ring specification sheet

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FAQs About GT Cobra Grade 80 Weld On D Ring

What is the GT Cobra Grade 80 Weld On D Ring used for?

The GT Cobra weld-on D ring provides a permanent lifting attachment on a suitably designed supporting structure. It has a Grade 80 alloy steel ring and a 16 Mn carbon steel base. Suitability depends on the selected working load limit, installation and planned lifting arrangement.

Who should install a GT Cobra weld-on D ring?

Installation must be carried out by a qualified welder following GT Lifting's welding and safety instructions. The supporting structure and completed weld must be suitable for the intended load; the ring's marked working load limit does not establish the capacity of the complete installation.

Where can a GT Cobra weld-on D ring be fitted?

It can be fitted to a supporting structure assessed as suitable for a welded lifting attachment. Check the base dimensions, material compatibility, access for welding and intended loading direction against GT Lifting's instructions. Do not assume that any steel surface is a suitable mounting point.

When should I choose a weld-on D ring rather than a removable shackle?

Choose a weld-on D ring when the equipment design calls for a permanent welded lifting attachment. A shackle provides a removable connection between compatible components instead. These products are not interchangeable without checking the lifting arrangement, supporting structure and manufacturer's instructions.

Why do D-ring dimensions matter as well as working load limit?

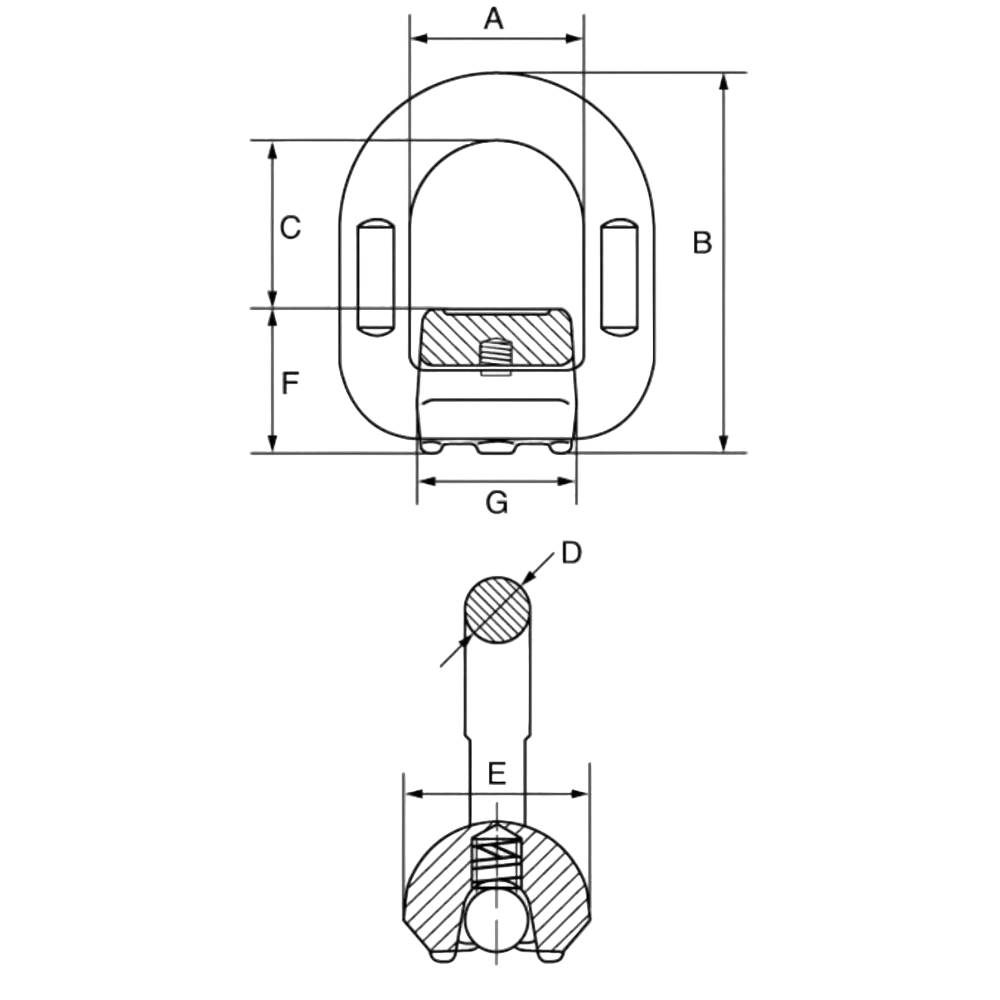

The ring and base must fit the connection and supporting structure, not just meet the required capacity. GT's specification sheet lists 1.12, 2, 3.15, 5.3, 8, 10 and 15 tonne models with different dimensions. Compare the selected model's dimensions and marked working load limit with the planned installation.

How do LOLER and PUWER apply to using a GT Cobra weld-on D ring at work?

LOLER and PUWER concern the safe use of lifting and work equipment; they are not product certifications. Before using a GT Cobra weld-on D ring at work, have a competent person assess the lifting arrangement, supporting structure and welded attachment, including the applicable duties for safe use, inspection and thorough examination. Follow GT Lifting's welding and safety instructions and consult current HSE guidance for your application.
