Our Manual Wire Rope Manual Winches are one of our best selling range of winches designed for maximum versatility and efficiency.They can be column, wall or base-mounting for easy pulling.
4 products
4 products

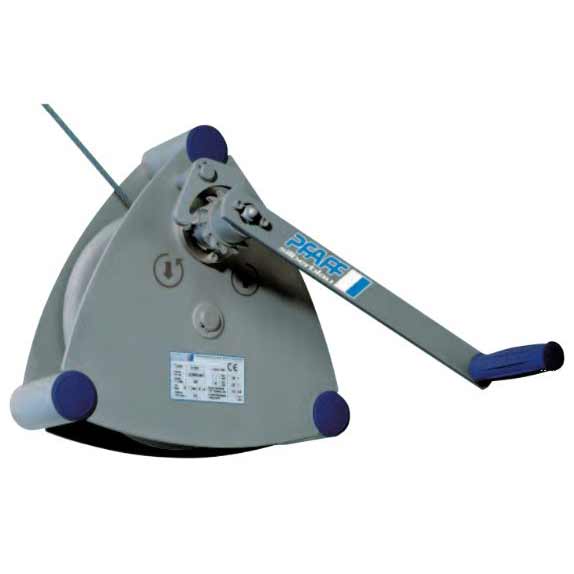

300kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £391Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: |  |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 300kg |
| Lifting capacity - upper layer: | 130kg |
| Wire rope diameter: | 5mm |
| Wire rope capacity - 1st layer: | 1.3m |
| Wire rope capacity - total: | 28m |
| Lift per crank rotation: | 57mm |
| Required crank pressure: | 13 daN |
| Documentation: | CE Marked and comes with Certification |
500kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £441Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 500kg |
| Lifting capacity - upper layer: | 230kg |
| Wire rope diameter: | 6mm |
| Wire rope capacity - 1st layer: | 1m |
| Wire rope capacity - total: | 20m |
| Lift per crank rotation: | 55mm |
| Required crank pressure: | 17 daN |
| Documentation: | CE Marked and comes with Certification |
750kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £528Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 750kg |
| Lifting capacity - upper layer: | 270kg |
| Wire rope diameter: | 7mm |
| Wire rope capacity - 1st layer: | 1m |
| Wire rope capacity - total: | 26m |
| Lift per crank rotation: | 45mm |
| Required crank pressure: | 17 daN |
| Documentation: | CE Marked and comes with Certification |
1000kg Pfaff SW-W ALPHA Wall Mounted Wire Rope Winch
Regular price £531Description
Multi-positional and easily mountable winch, compact and low-weight
Features and benefits include:
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Wire rope sold separately
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Lifting capacity - 1st layer: | 1000kg |
| Lifting capacity - upper layer: | 360kg |
| Wire rope diameter: | 7mm |
| Wire rope capacity - 1st layer: | 1m |
| Wire rope capacity - total: | 26m |
| Lift per crank rotation: | 45mm |
| Required crank pressure: | 18 daN |
| Documentation: | CE Marked and comes with Certification |
