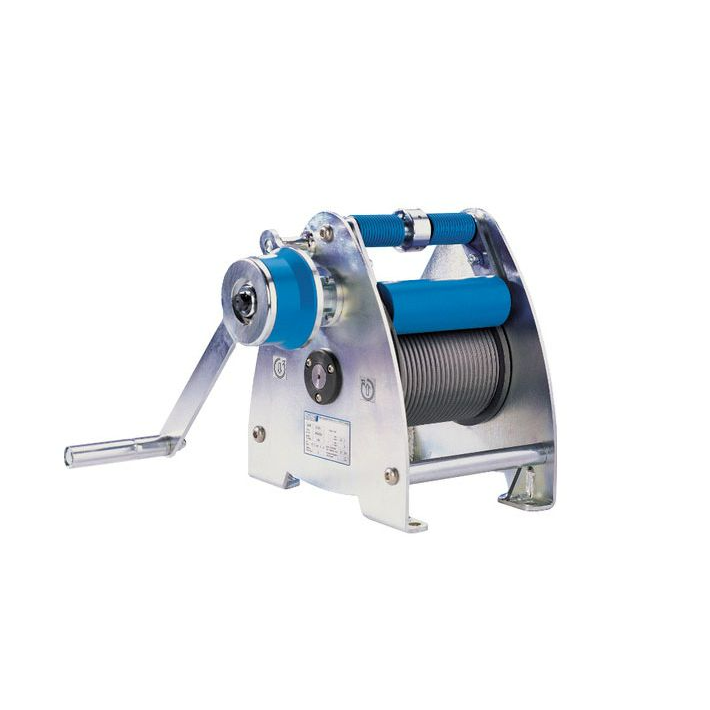

Pfaff SW-K LAMBDA Wire Rope Winch

The compact rope winch for applications on stages, in studios, theatres, etc has a capacity of 300kg.

Features
- State-of-the-art design with galvanized side sections for easy handling.
- Grooved drum for single-layer winding of the steel rope. An 18:1 ratio between drum and rope diameter increases the service life of the rope substantially.
- With spring-loaded rope pressure roller to prevent the unloaded rope from jumping off the drum.
- Gear rated for twice the nominal load.
- Spur gear drive for optimal efficiency and comfortable handling.
- The fitted safety crank with two spring brakes acting independently of each other for safe holding of the load in any position.
- In compliance with DGUV Vorschrift 17 (BGVC1) and DIN 56925. Certified by the German committee for lifting equipment (GS-approval-tested safety).
- Drum extension for a larger rope capacity.
- Special grooves (several layers)
- Contact us for optional extras

*Recommended wire rope: DIN 3060 FE-znk 1770 sZ-spa.  All Pfaff winches are supplied WITHOUT wire rope.

Wire rope sold separately.
