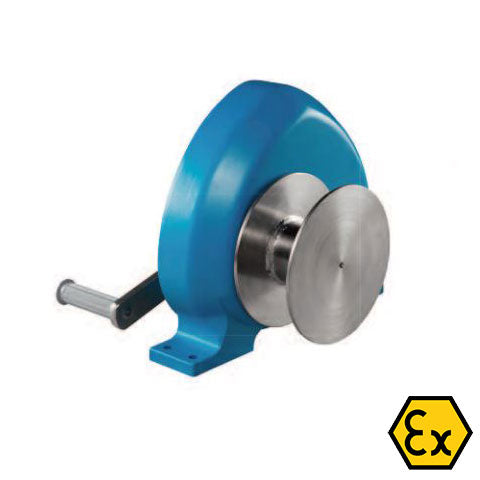

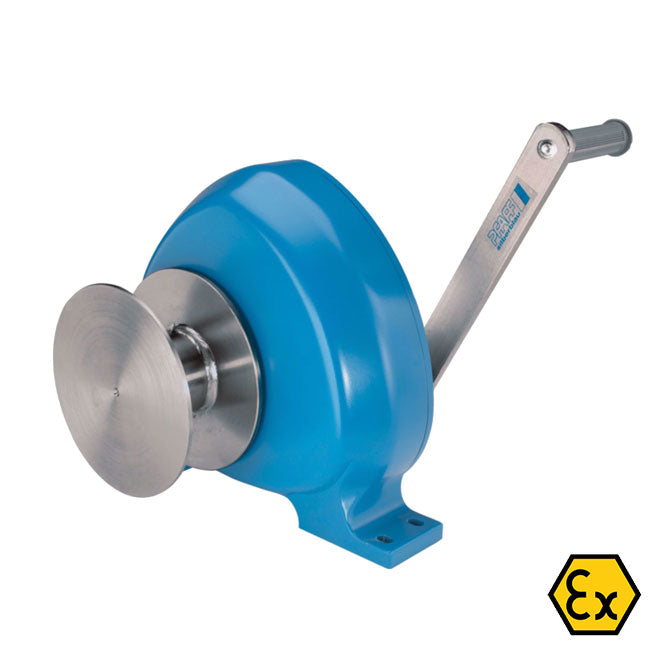

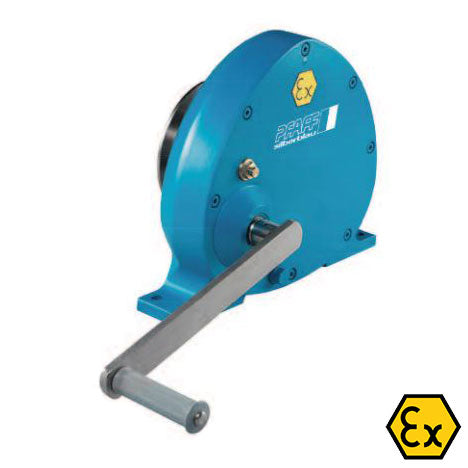

Pfaff OMEGA ATEX Manual Wire Rope Winch
-
OMEGA Manual wire rope winches - developed for special challenges
Wire rope sold separately.
The OMEGA manual wire rope winch offers perfect functional safety in areas such as the ATEX (EX II 2 DG ck 195°C (II T3)). Since the rope is continuous, from the drum to the attachment point, the load is always 1 tonne, no matter where measured. The head load is the number of line attachments at the head sheave x 1 tonne. All loads shown ignore frictional losses in the system.
OMEGA ATEX - Features
- Carrying loads 1000 kg
- Used in potentially explosive atmospheres requiring a high level of safety. Standard equipment
- Removable hand crank
- Encapsulated gearbox
– Running in oil bath
- High-quality painting to improve corrosion protection
*recommended rope: DIN 3069 SE 1960 N/mm² **recommended rope: DIN 3069 SE 1770 N/mm² -
Brand:
Model: OMEGA ATEX Origin: United Kingdom ATEX Rating: EX II 2 DG ck 195°C (II T3) Useable rope length 1st layer 1.6 meters Useable rope length 4th layer 13.1 meters Required crank effort 17 daN Driving torque 3 Mta Nm Documentation: UKCA / CE Mark where required and with Certification
-
Specification sheet:
