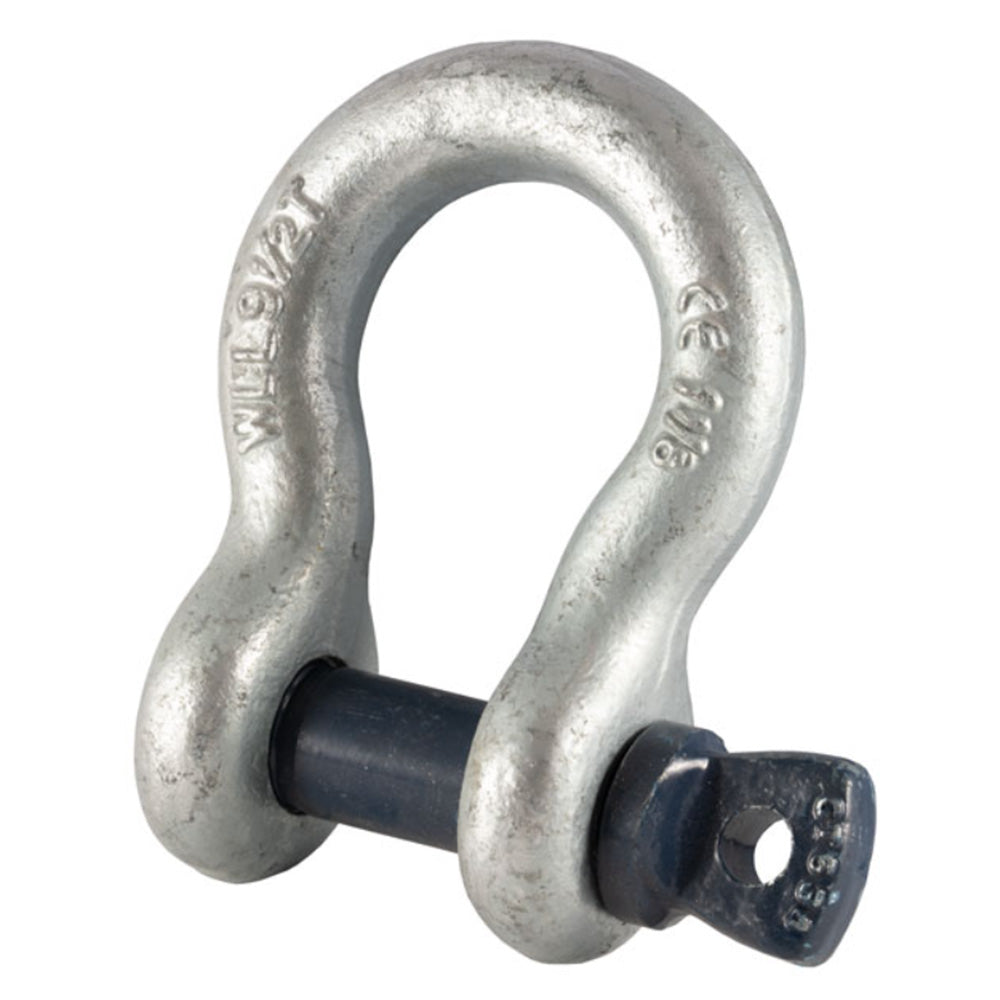

Blue Pin® Bow Shackles with Screw Collar Pin are Grade 6 bow shackles for detachable connections in professional lifting and rigging applications. Made from quenched and tempered high-tensile steel, the body and pin have a hot-dip galvanised finish, while the screw collar pin allows the shackle to be fitted or removed when a lifting connection needs to be changed. Select the correct size by its marked working load limit (W.L.L.) and confirm that the shackle, pin and complete connection suit the intended load; never exceed the W.L.L.
The supplied information states that the shackles meet the W.L.L. requirements of EN 13889 from 0.5t to 25t and US Federal Specification RR-C 271. Minimum breaking load is six times the W.L.L., with a stated operating temperature range of 0°C to +200°C. Each shackle is marked with CE, W.L.L., manufacturer’s identification, size and a traceability code. Check the markings and supplied documentation for the selected size before use, and follow the applicable requirements for the planned lifting operation. -
Brand:
Model: BPSCB Origin: United Kingdom Working load limits: 0.5t to 55t Material: Quenched and tempered Grade 6 steel Finish: Hot-dip galvanised Standards: BS EN 13889; ASME B30.26 for sizes from 2t upwards Certification: UKCA / CE marking where required. Refer to the certification supplied with the selected size. -
Specification sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQS GT Blue Pin Standard Bow Shackle
What is a GT Blue Pin Standard Bow Shackle with Screw Collar Pin?
What is a GT Blue Pin Standard Bow Shackle with Screw Collar Pin?
It is a Grade 6 high-tensile steel lifting shackle for connecting compatible components within a lifting arrangement. The bow shape provides a connection point and the screw collar pin closes the shackle when correctly fitted. It meets the W.L.L. requirements of EN 13889 from 0.5 tonne to 25 tonne.
Who should use a GT Blue Pin screw collar pin bow shackle?
Who should use a GT Blue Pin screw collar pin bow shackle?
It is intended for lifting professionals selecting a correctly sized, marked shackle for a compatible lifting arrangement. The shackle’s marked W.L.L., size and connected components must be suitable for the intended load.
Where can a GT Blue Pin bow shackle be used?
Where can a GT Blue Pin bow shackle be used?
Use it within a compatible lifting arrangement where a correctly selected shackle connection is required. Confirm that the shackle, connected components and complete lifting arrangement are suitable for the intended load and conditions before use.
When should I use this screw collar pin lifting shackle?
When should I use this screw collar pin lifting shackle?
Use it when its marked W.L.L., size and stated operating conditions match the lifting operation. Its stated operating temperature range is 0°C to +200°C, and the marked W.L.L. must never be exceeded.
Why choose a Grade 6 hot-dip galvanised GT bow shackle?
Why choose a Grade 6 hot-dip galvanised GT bow shackle?
The GT Blue Pin Standard Bow Shackle has a Grade 6 high-tensile steel body and screw collar pin, both quenched and tempered, with a hot-dipped galvanised finish. It has a minimum breaking load of six times its marked W.L.L., while the W.L.L. remains the maximum permitted service load.
How do I select and use a GT Blue Pin Standard Bow Shackle safely?
How do I select and use a GT Blue Pin Standard Bow Shackle safely?
Select a shackle with a marked W.L.L. that meets or exceeds the intended load and a size suitable for the connected components. It is marked with CE, W.L.L., manufacturer ID, size and a traceability code; a 2.1 certificate and Declaration of Conformity are available. LOLER and PUWER are UK legal duties for lifting-equipment selection, inspection and use, not product certifications.
