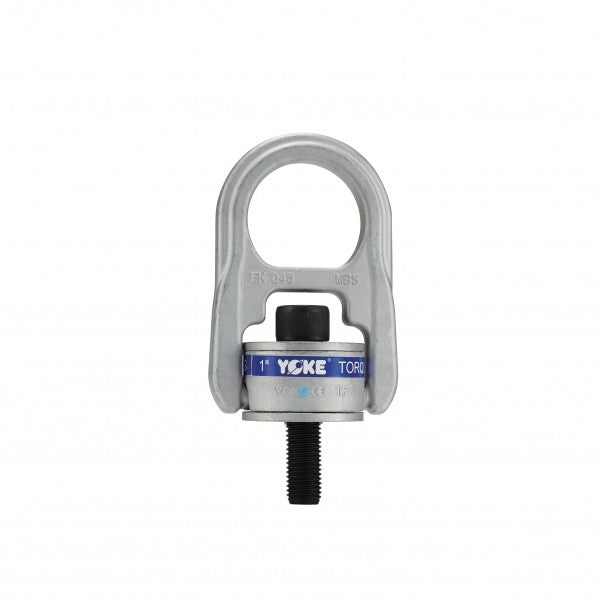

Yoke Swivel Hoist Ring with Alloy Steel Washer - UNC - Type 204
Yoke Swivel Hoist Ring with Alloy Steel Washer - UNC - Type 204 - 5/16 inch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast Despatch
Products typically despatched within 1-2 working days*
Compliance Training
Products include a certificate. Training provides a certificate upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Highest Rated Supplier
We're trusted to deliver. 100's of 5 star reviews on Trustpilot.
-
Yoke Lifting Point UNC Thread
The Yoke Lifting Point UNC Thread is a heavy duty load attachment point. It is suitable for lifting objects with no obvious attachment points. The product is used for mold and die handling, in addition to pump and valve handling.
Product Features
• Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolt are UNC thread (ASME/ ANSI B18.31M).
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• Design Factor 5 : 1.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required. -
Brand:
Origin: United Kingdom Mobility: Rotates through 360° and pivots 90° Design factor: 4:1 Documentation: UKCA / CE Mark where required and with Certification -
Specification sheet:
