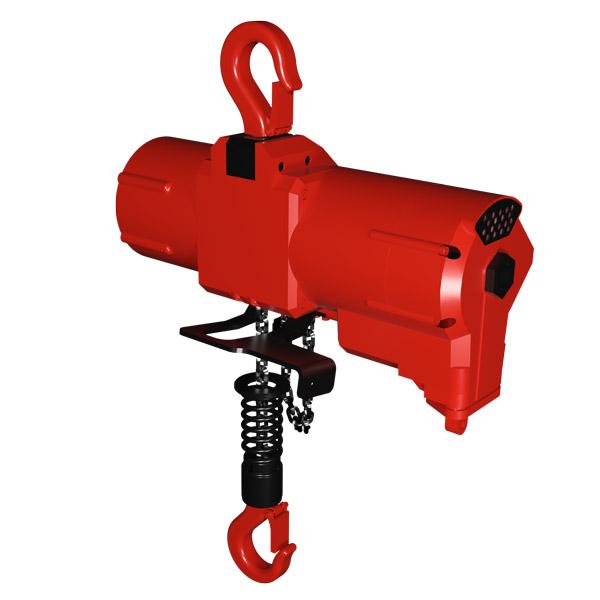

Red Rooster TCS 500 Air Hoist - Pneumatic

The Red Rooster TCS 500 Air Hoist is a lightweight comprehensive Pneumatic Chain Hoist suited to all types of industrial and marine environments. The Red Rooster TCS 500 Air Hoist is the perfect lifting solution for where the duty is high, or where a robust hoist is required to withstand harsh conditions. The Red Rooster TCS 500 Air Hoist complies with the European Machinery Directive and is CE marked.

NOTE: If you require a different size Air Chain Hoist or a hoist with a Power Trolley etc please contact us directly as we have a variety of Pneumatic Chain Hoists.

Red Rooster TCS-500 Air Hoist:

-Classification: Ex Group II 3 G Ex h IIA T4 Gc, Ex Group II 3 D Ex h IIIA T135°C Dc

-Capacity (SWL): 0.5 Tonne

-Lift Height: 3.0 m

-Chain Falls : 1

-Chain Size: 6.3 X 19.1mm

-Lift Speed (full load): 17 m/min

-Lift Speed (no load): 33.0 m/min

-Air Consumption : 28 litres / second @ 6.3 Bar

-Air Connection: 1/2" BSP, Min Hose Dia. 1/2"

Standard Features:

-Aluminium Housing

-Upper & Lower Limit Switches

-Failsafe Automatic Internal Disc Brake Additional

Features:

-2.0 m Pendant Control c/w Emergency Stop

-1/2" Filter Lubricator Regulator c/w Gauge

-Chain Collector

Documentation: Certificate of Test & Thorough Examination, EU Declaration of Conformity, Safety Instructions, Instruction Manual.

We provide online training for this product. Learn more about this Pneumatic Hoist course.
