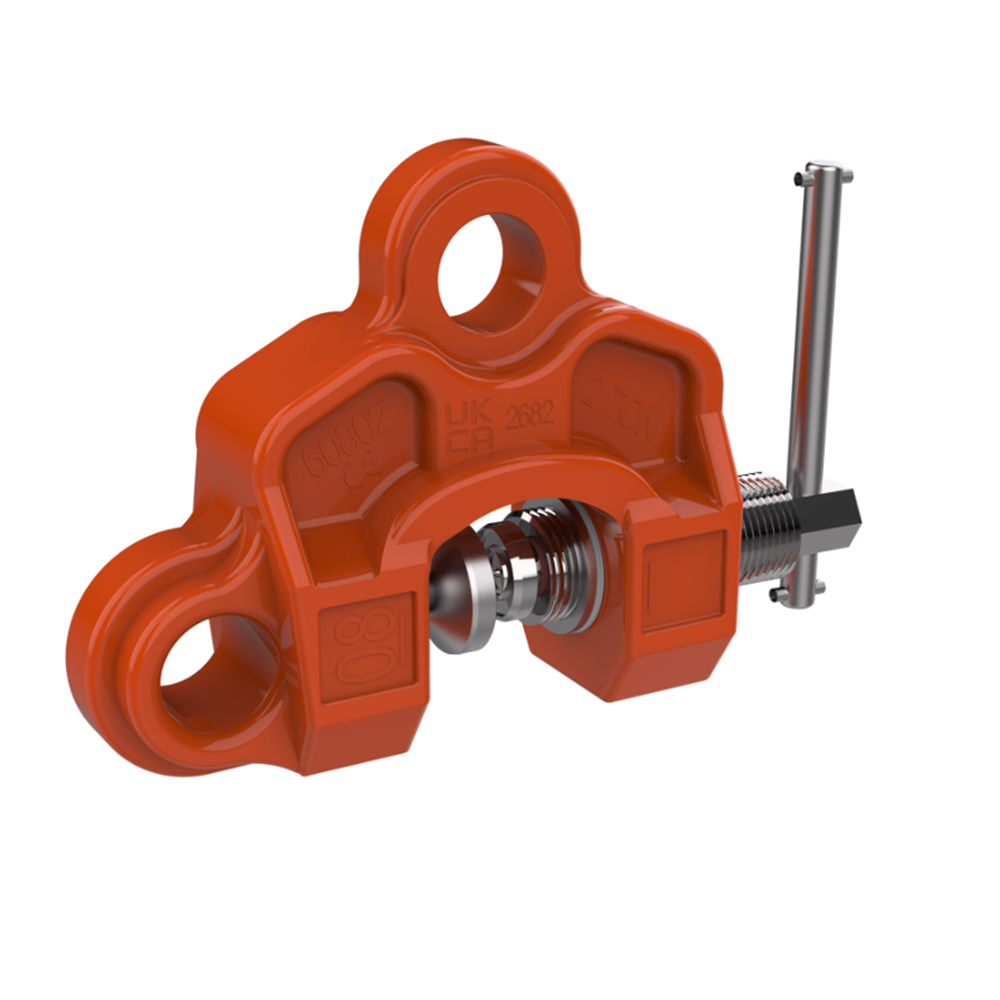

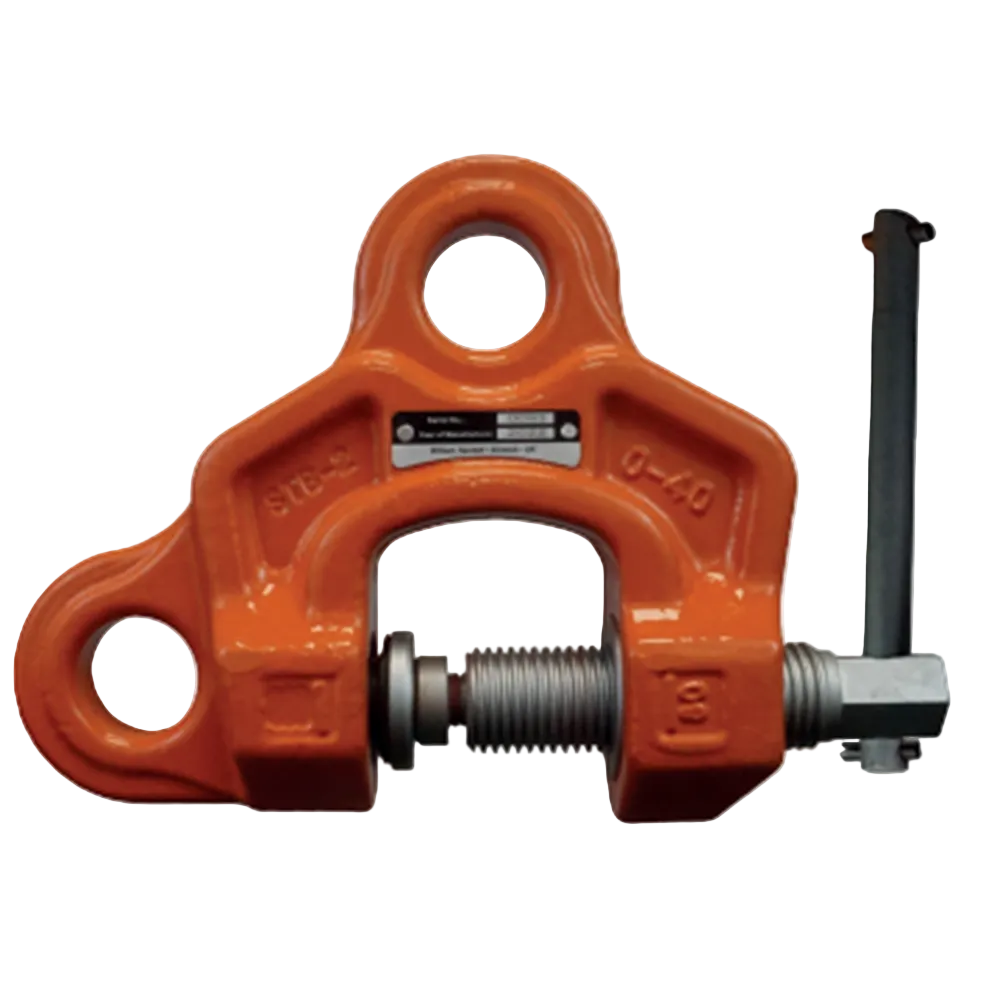

WH Multi Directional Clamp

The WH Multi Directional Clamp is a load attachment with two attachment points for multi-directional lifting and a lifting eye to suit a shackle. The manufacturer's range includes 2, 3.2 and 4 tonne WLL models. Suitability depends on the load, effective thickness and planned lifting arrangement.

Selection and use should be handled by people competent in the planned lifting operation. They need to check the clamp's marked WLL, compatibility with the load and connecting equipment, and the manufacturer's instructions before use. The multi-directional design does not make every lifting arrangement suitable.

Use the WH clamp only on loads and in lifting arrangements permitted by the manufacturer's instructions. The specification sheet gives an operating temperature range of -20°C to +120°C. Check the load's effective thickness, the attachment position and the suitability of the connecting shackle before planning the lift.

Choose by both the required WLL and the load's effective thickness. The WH sheet lists 2 and 3.2 tonne models for 0–40mm effective thickness and a 4 tonne model for 5–40mm. Also check the model dimensions and permitted lifting arrangement; capacity alone is not enough to establish suitability.

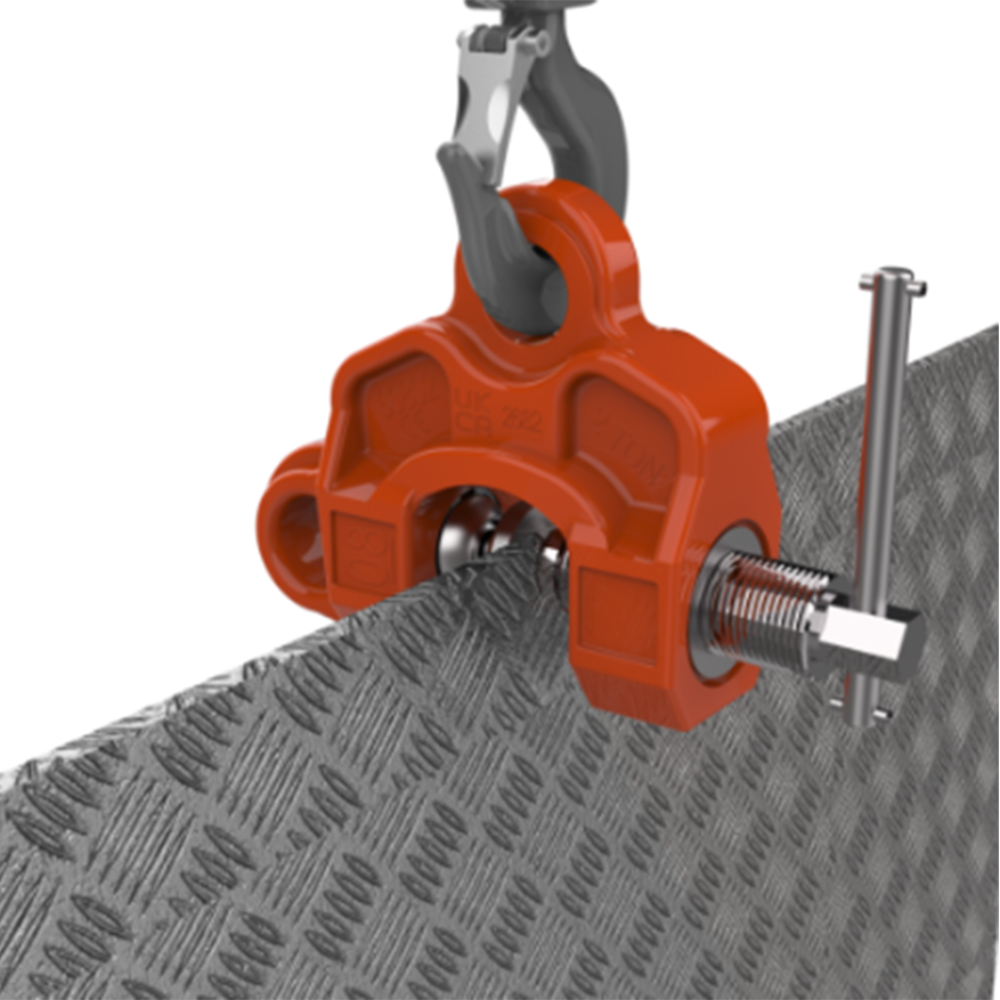

The WH specification sheet identifies two attachment points for multi-directional use, including side-load arrangements. Use the attachment point and connection specified for the planned lift. Do not assume that the clamp's full marked WLL applies to every direction or configuration without checking the manufacturer's instructions.

LOLER and PUWER concern the safe use of lifting equipment and work equipment in Great Britain; they are not product certifications. For workplace lifting, consider the duties covering suitable equipment, properly planned lifting operations, competent users, maintenance, inspection and thorough examination where applicable. Follow the WH manufacturer's instructions and consult current HSE guidance for your application. A proof test or stated safety factor does not replace these responsibilities.
