500kg TML Lifting Magnet with Swivel Eye

SKU: 41500
£1,487.00 (incl VAT) £1,239.17 (excl VAT)
View full description

Fast Shipping

Products typically dispatched within 1-2 working days*

Certification

Products include certification and training courses issue certificates upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Best Rated

Trusted across the UK for lifting expertise and industry knowledge

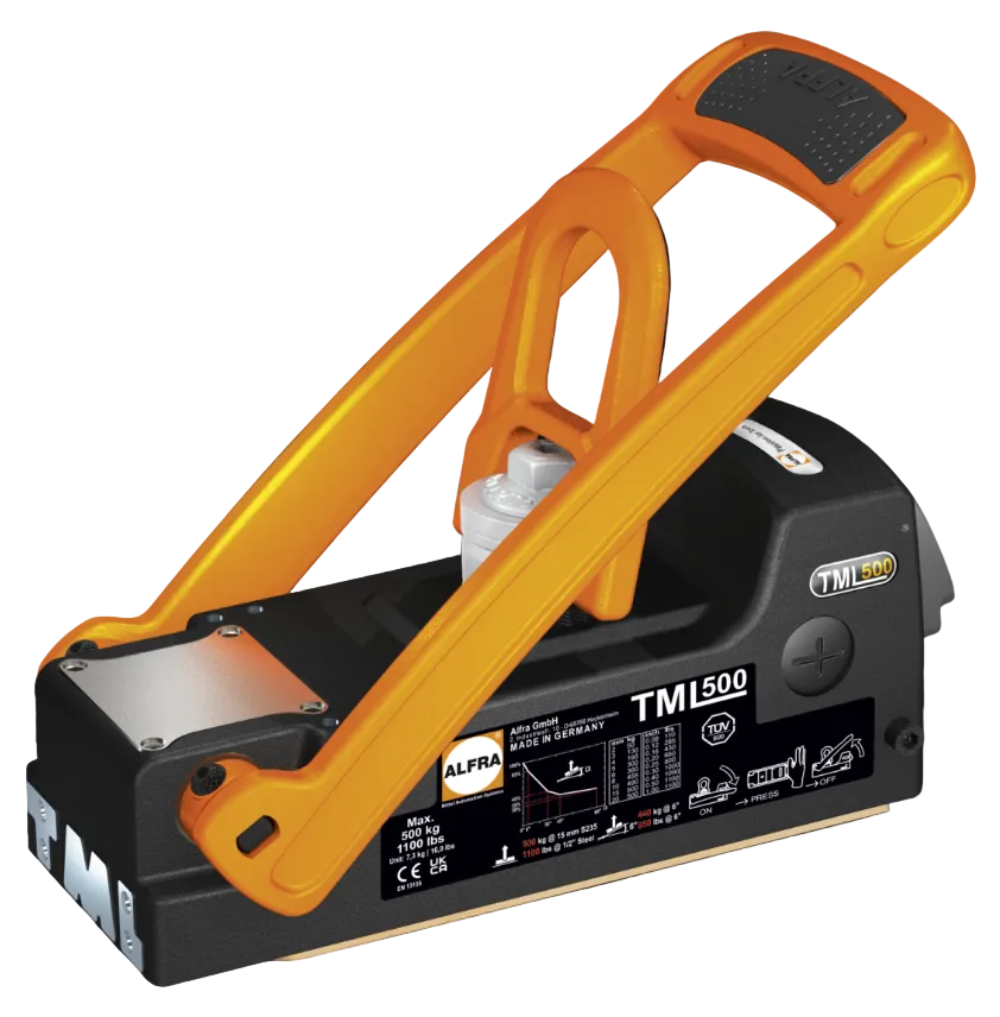

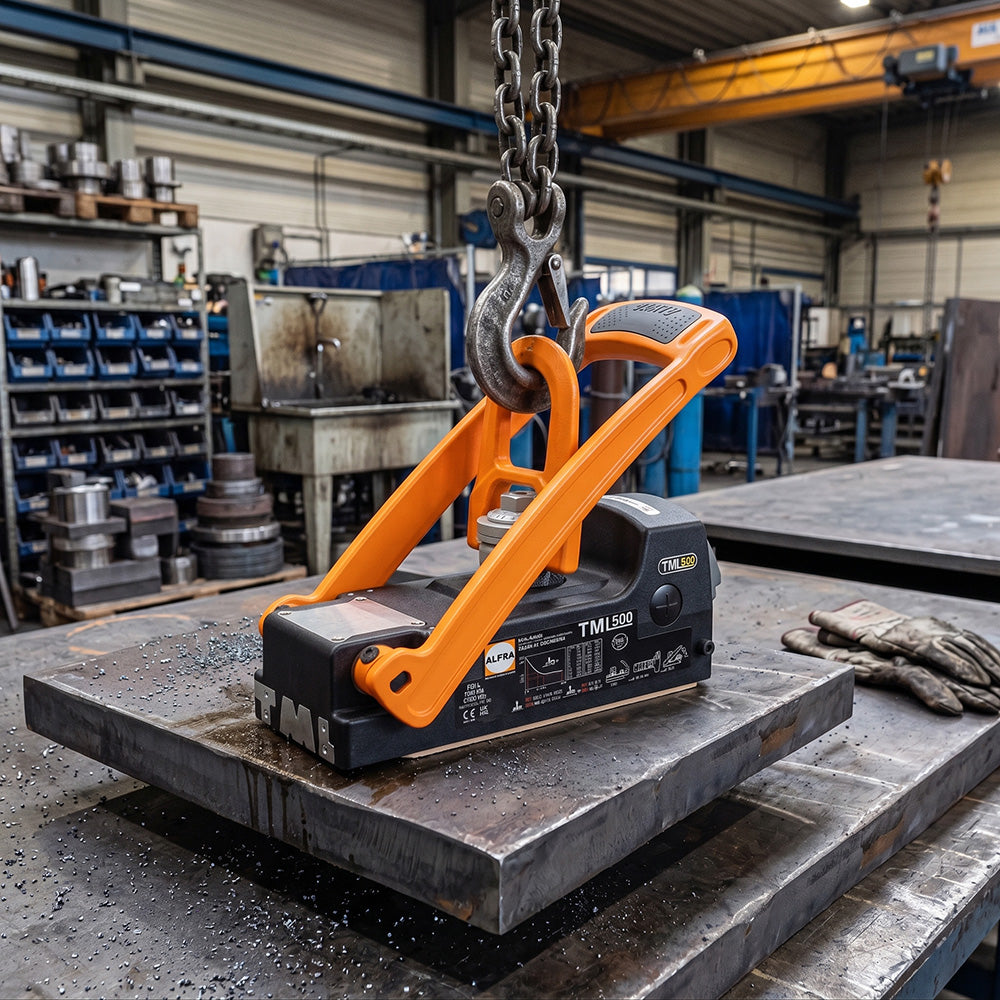

  • The TML 500 is a Thin Material Lifting permanent lifting magnet for handling compatible steel sheets, plates and beams with a crane, overhead crane or wire rope hoist. Its patented magnetic technology develops strong holding performance on thin-walled material: it can lift up to 300kg from 5mm thickness and around 490kg from 10mm steel, with a stated maximum load capacity of 500kg. Select the permitted load according to the actual steel thickness rather than relying on the maximum rating alone. At a tare weight of 7.3kg, the magnet combines high lifting capacity with easier positioning.

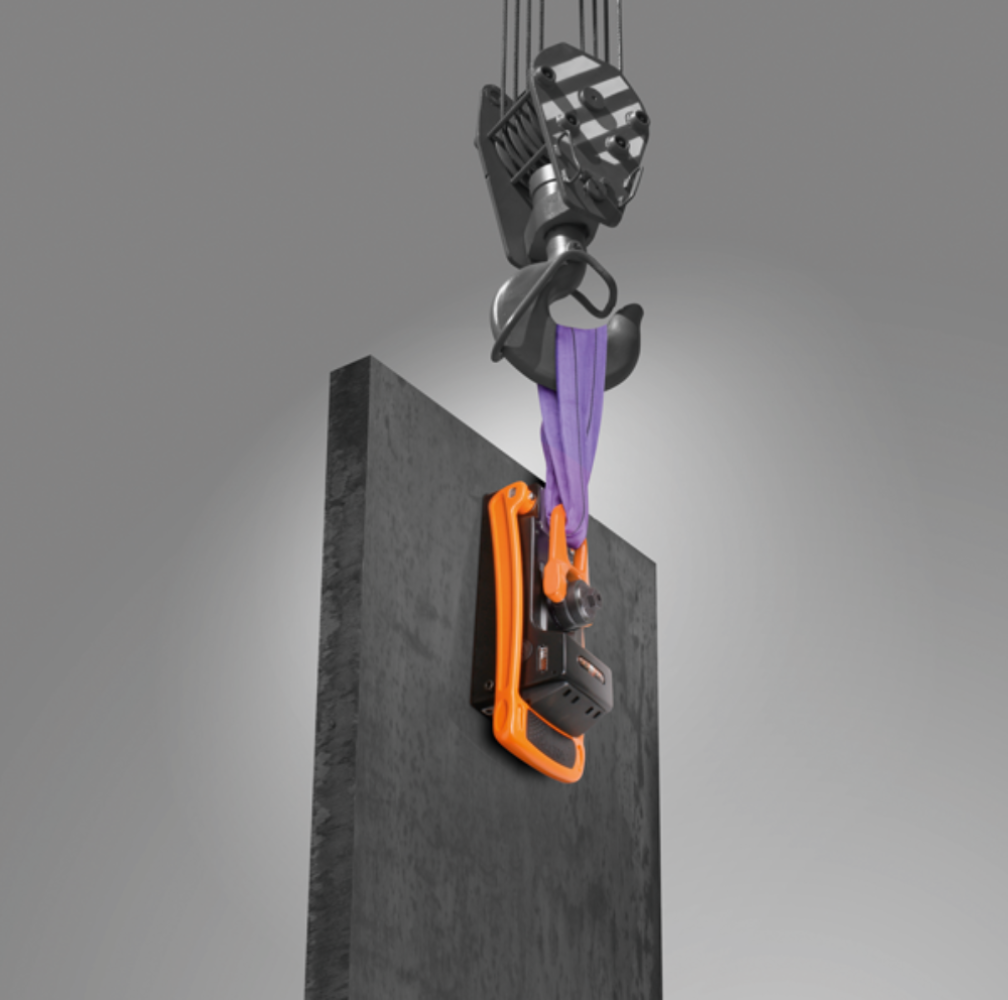

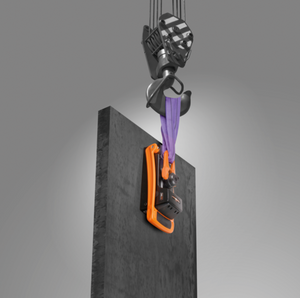

    The 360° rotating load swivel connects to suitable lifting or transport equipment using a hook with safety flap or a load sling. Its slim housing and lengthways ergonomic lever allow activation inside a T-beam, while the hard-wearing TiN-coated magnetic surface resists damage during repeated industrial use.

  • Brand: YMS Tools
    YMS Tools
    Model: TML 500
    Lifting capacity options: 500kg
    Holding force at 5mm: 300kg
    Holding force at 10mm: Around 490kg
    Weight: 7.3kg
  • Specification Sheet: pdf spec sheet

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

faqs 500kg TML Lifting Magnet with Swivel Eye

What can the TML 500 lifting magnet lift at different steel thicknesses?

The TML 500 is a permanent lifting magnet for compatible steel sheets, plates and beams. Its stated lifting capacity is 300kg on 5mm steel and around 490kg on 10mm steel, with a maximum rating of 500kg. Choose the permitted load for the actual material and thickness rather than using the maximum rating for every lift.

Who is the TML 500 lifting magnet suitable for?

The TML 500 is suited to trained teams handling compatible steel sheets, plates and beams with suitable lifting equipment. Its 7.3kg tare weight and slim housing make it easier to position when handling steel in workshops or other controlled lifting operations. Check the material, its thickness and the permitted load for each lift.

Where can the TML 500 lifting magnet be used and how does it connect?

The TML 500 is designed for lifting compatible steel sheets, plates and beams where a suitable crane, overhead crane or wire rope hoist is available. Its 360° rotating load swivel connects to suitable lifting equipment using an appropriate hook with a safety flap or a load sling. Check the whole lifting arrangement and follow the manufacturer's instructions before use.

When should you choose the TML 500 lifting magnet for thin steel?

Choose the TML 500 when you need to lift compatible steel sheets, plates or beams and the load falls within the rating for its actual thickness. Its stated capacity is 300kg at 5mm and around 490kg at 10mm, with a maximum rating of 500kg. Check the manufacturer's capacity information for the material and lifting conditions before selecting it for a job.

Why does the TML 500 lift less on thinner steel?

A lifting magnet's holding performance depends on the steel beneath its magnetic surface, including its thickness and suitability for magnetic lifting. The TML 500 has a stated lifting capacity of 300kg on 5mm steel and around 490kg on 10mm steel. Do not assume the 500kg maximum applies to a thinner sheet; follow the load limit for the actual material and thickness.

How should the TML 500 lifting magnet be used safely in a UK workplace?

Before lifting, check that the steel is magnetically compatible and confirm the permitted load for its thickness. The TML 500 is stated to lift 300kg at 5mm and around 490kg at 10mm, with a 500kg maximum rating. Check the magnetic contact surface and connect the 360° swivel to suitable lifting equipment in line with the manufacturer's instructions.

For workplace use in the UK, the dutyholder must meet applicable LOLER and PUWER requirements, including appropriate planning, inspection and competent use. These are duties governing the lifting operation and work equipment, not product certifications.
