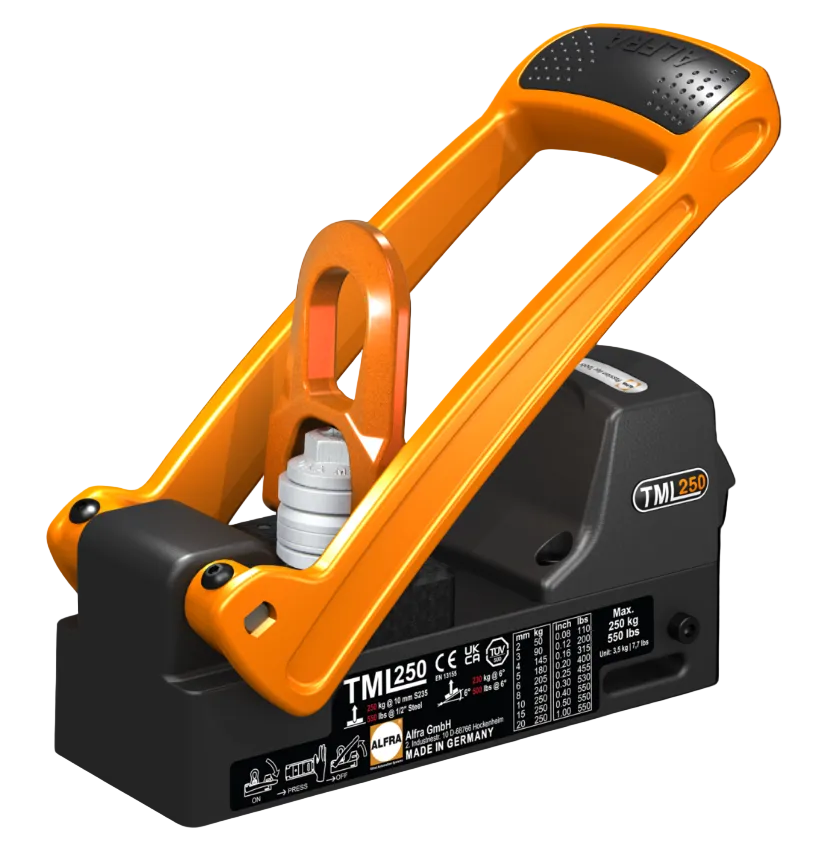

The TML 250 is a permanent lifting magnet built around patented TML (Thin Material Lifting) technology, which is what allows it to perform well on thin-walled material where conventional magnets lose their grip. On uncoated and stainless steels it holds 90kg from a thickness of 3mm, rising to a full 250kg load capacity from 10mm, calculated with a triple safety factor. At a dead weight of 3.5kg it is up to 70 percent lighter than conventional permanent magnets of comparable performance, which makes a real difference over a shift.

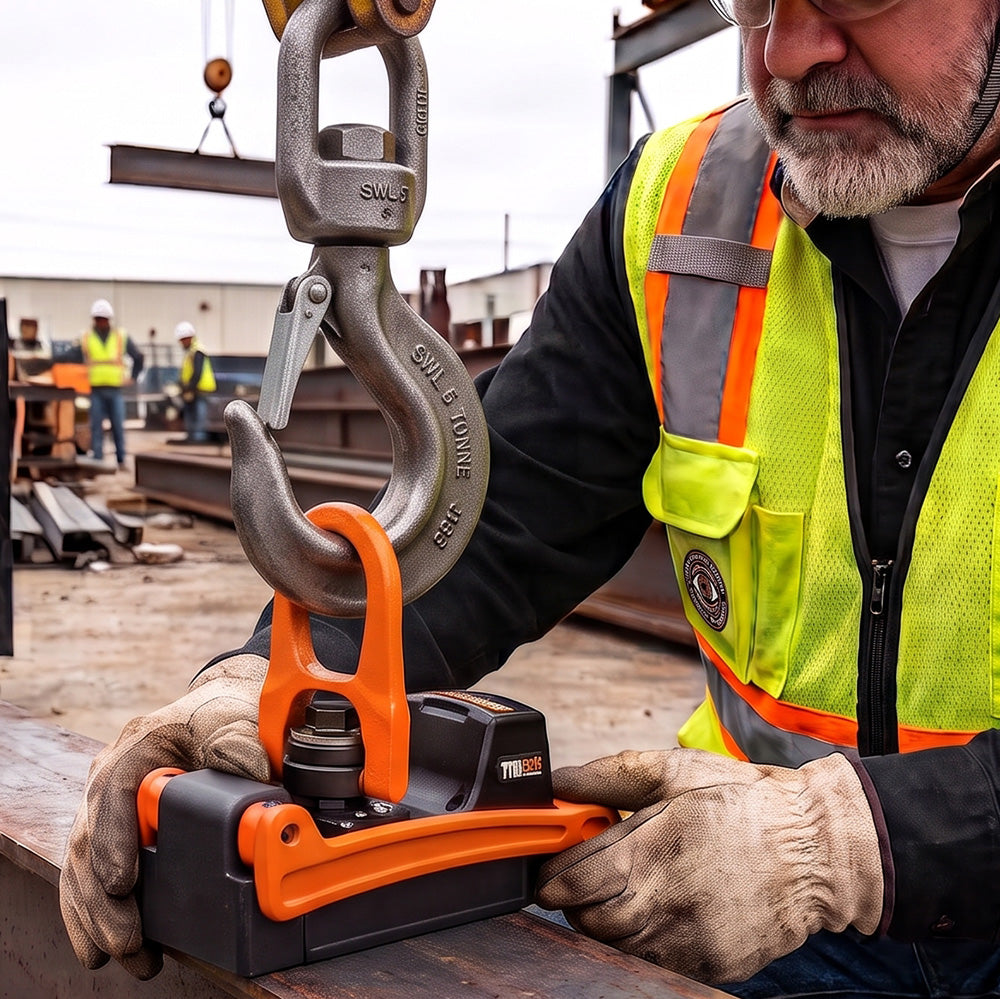

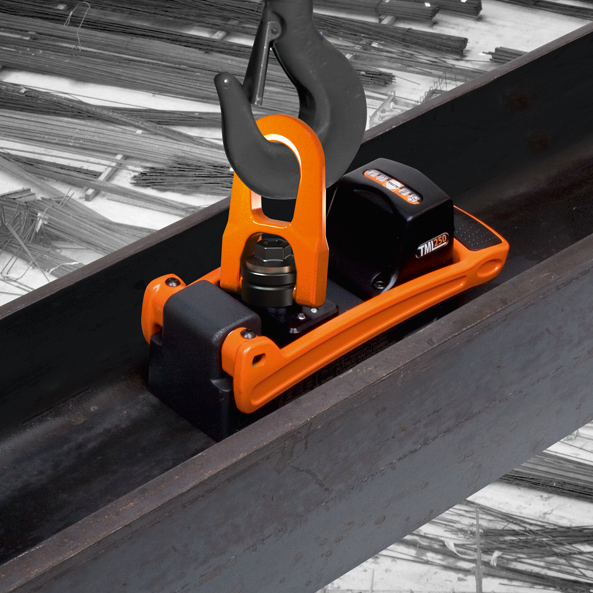

Designed for metalworking, building sites and shipyards, the TML 250 is activated by one-hand operation inside a T-beam, and the 360° rotating load swivel connects to a crane, ceiling crane or hoist using a hook with safety flap or a load loop. The magnetic surface carries a resistant TiN coating, so the magnet stands up to hard, repeated use. -
Brand: YMS Tools
Model: TML250 Lifting capacity : 250kg Holding force at 3mm: 90kg Full capacity from: 10mm Weight: 3.5kg -
Specification Sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQS 250kg TML Lifting Magnet with Swivel Eye
What is the TML 250 lifting magnet used for?
What is the TML 250 lifting magnet used for?
It's a permanent lifting magnet built around patented TML (Thin Material Lifting) technology, made to get a solid grip on thin-walled steel and stainless steel where ordinary magnets struggle, for metalworking, building sites and shipyard work.
How does the TML 250 pick up and release a load?
How does the TML 250 pick up and release a load?
One-hand operation switches the magnet on inside its T-beam housing, and a 360° rotating load swivel connects to your rigging with either a hook fitted with a safety flap or a load loop; the working face has a wear-resistant TiN coating to cope with repeated use.
Who is the TML 250 built for?
Who is the TML 250 built for?
Riggers and handlers who want a magnetic lifter that doesn't wear them out over a shift: at 3.5kg it's up to 70 percent lighter than a conventional permanent magnet of similar lifting performance.
Where can you rig the TML 250?
Where can you rig the TML 250?
Its rotating swivel connects to a crane, a ceiling crane or a hoist, and takes either a hook with a safety flap or a load loop depending on how the job needs to be set up.
When does the 250kg capacity actually apply?
When does the 250kg capacity actually apply?
You get the full 250kg rating on uncoated or stainless steel from 10mm thick; drop to 3mm material and it holds less (90kg), with every figure worked out using a triple safety factor, so match the rating to your material rather than assuming the top figure everywhere.
Why do LOLER and PUWER still apply to a magnetic lifter like this?
Why do LOLER and PUWER still apply to a magnetic lifter like this?
LOLER and PUWER are UK legal duties covering the inspection and maintenance of lifting equipment, not a certification stamped on the product itself, so this magnet needs to sit in your normal lifting-equipment inspection schedule like any other lifting accessory.
