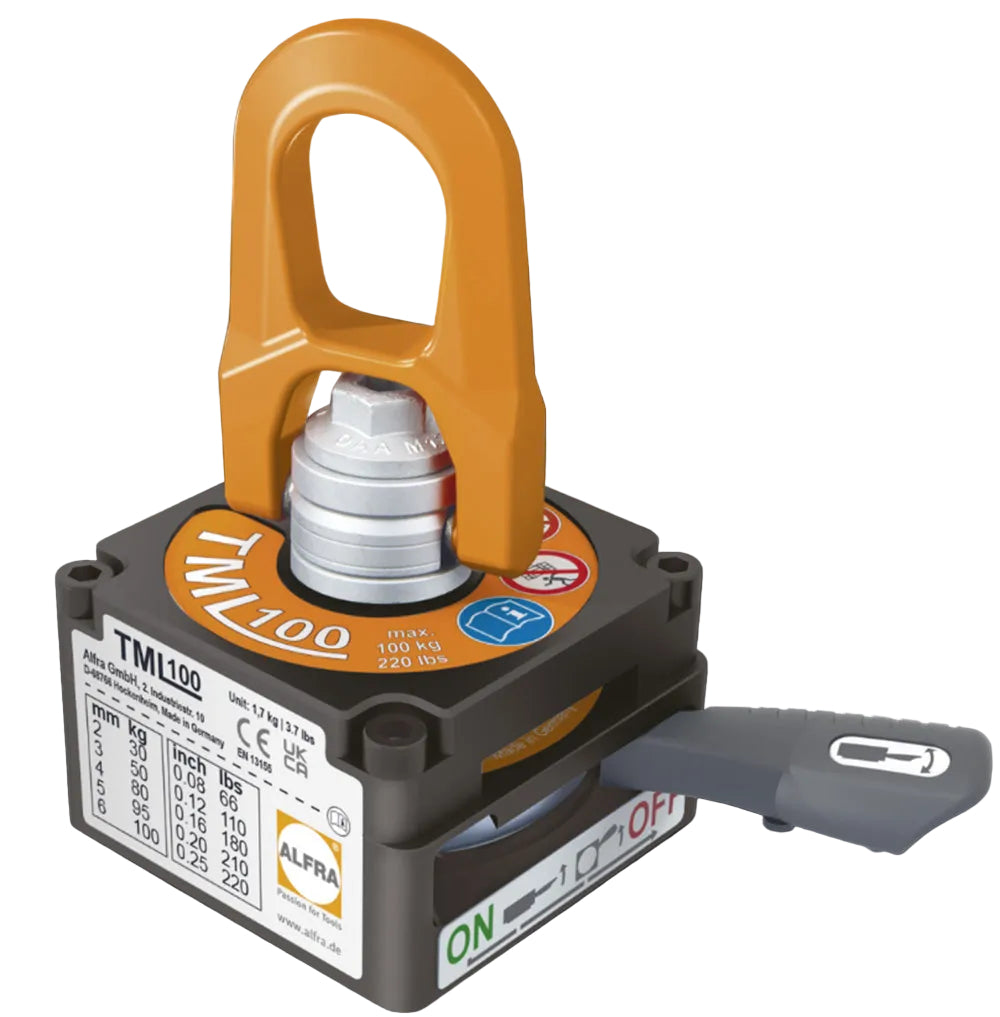

The TML 100 is a compact permanent lifting magnet built for everyday handling work on construction sites, in workshops and in shipbuilding. Weighing just 1.7kg, it uses patented TML technology to hold ferromagnetic sheets, plates, beams and similar parts on material as thin as 1mm, where heavier magnets struggle. Load capacity ranges from 50kg on 3mm material up to 100kg from 6mm thickness, calculated with a triple safety factor.

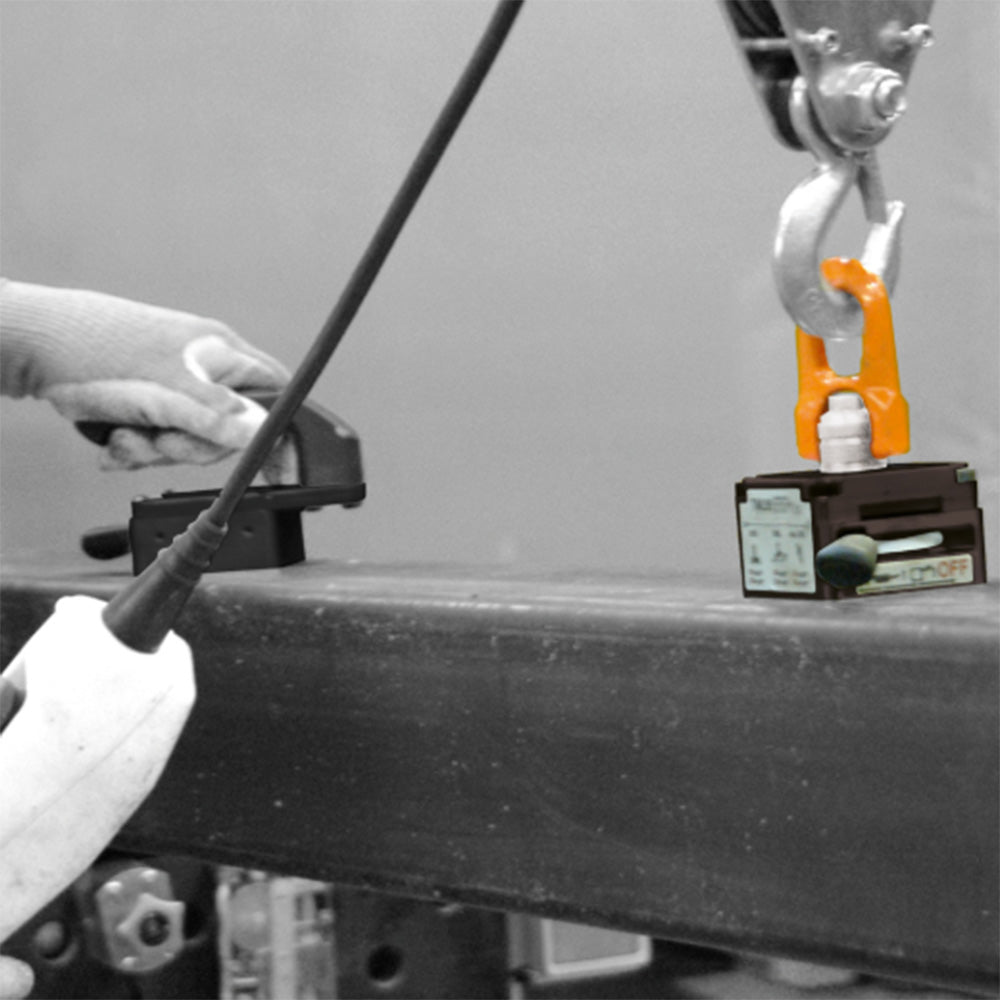

The load swivel pivots through 360° and stays movable under full load, so the magnet suits a wide range of rigging arrangements, whether you are lifting with a crane, an overhead crane, a rope hoist or a forklift fitted with a suitable safety device. Fit it with a hook with safety flap or a load loop to match the job. The magnet is activated by one-hand operation, and the hardened steel holding surface with TiN coating resists wear for a long service life. -
Brand: YMS Tools
Model: TML100 Lifting capacity options: 100kg Breakaway force: 300kg on 6mm Minimum Material Thickness: 1mm Weight: 1.7kg Dimensions Length x Weight 82.5mm x 80mm -
Specification Sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
faqs 100kg TML Lifting Magnet with Swivel Eye
What is the TML 100 lifting magnet used for?
What is the TML 100 lifting magnet used for?
It's a compact permanent lifting magnet for quick, everyday handling of steel plates, sheets, beams and other ferromagnetic parts on construction sites, in workshops and in shipbuilding, built around patented TML magnet technology.
How does the TML 100 grip and release a load?
How does the TML 100 grip and release a load?
A hardened, TiN-coated steel face grips the load magnetically, switched on and off with one-hand operation, while the load swivel turns a full 360° and keeps moving freely even with the magnet under full load.
Who is the TML 100 designed for?
Who is the TML 100 designed for?
Riggers and handlers who want a light, portable magnetic lifter (it weighs just 1.7kg) for fast pick-and-place jobs, rather than a bulky, permanently mounted industrial magnet.
Where can you rig the TML 100?
Where can you rig the TML 100?
It works with a crane, an overhead crane, a rope hoist or a forklift fitted with a suitable safety device, and takes either a hook with a safety flap or a load loop depending on how you need to rig it.
When does the 100kg capacity actually apply?
When does the 100kg capacity actually apply?
The full 100kg rating is for material 6mm thick or more; thinner stock down to 1mm holds less (50kg on 3mm), every figure is worked out with a triple safety factor, and breakaway force is 300kg on 6mm material, so always match the rating to your material thickness rather than assuming the top figure applies everywhere.
Why do LOLER and PUWER still apply to a magnetic lifter like this?
Why do LOLER and PUWER still apply to a magnetic lifter like this?
LOLER and PUWER are UK legal duties covering the inspection and maintenance of lifting equipment, not a certification stamped on the product itself, so this magnet needs to sit in your normal lifting-equipment inspection schedule like any other lifting accessory.
