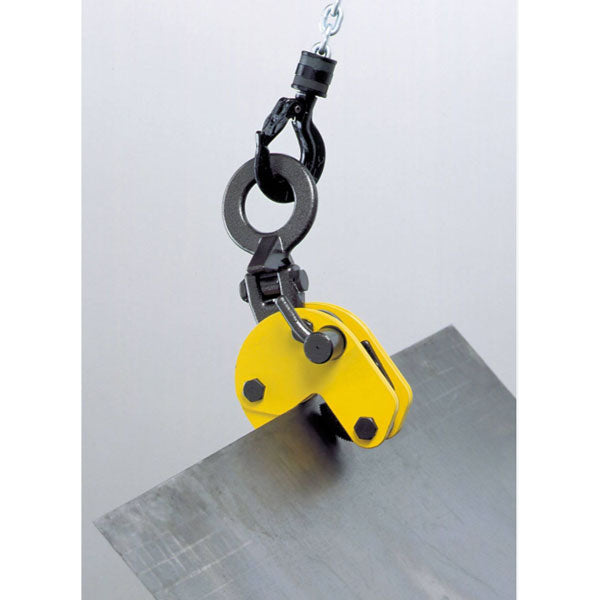

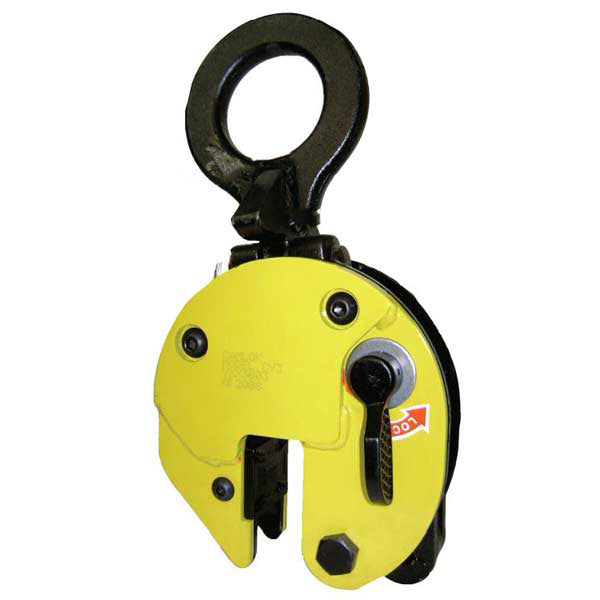

The CY plate clamps with hinged hook rings can be used for the safe handling of plate at various angles. It can lift plate from the horizontal and put it down in the vertical. The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity reduces. See the diagram below showing the load / force capacities. The main benefit of the CY hinged plate clamps is that longer plates can be lifted or handled, using two clamps on a two legged chain sling thus eliminating the need for a spreader beam. NB: The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300. Prices shown are for a single clamp.
Brand: Model: CY Model | WLL Options: CY 1 | From 100kg up to 1000kg
CY 3 | From 300kg up to 3000kg
Number of pieces in pack: 1 Origin: United Kingdom Documentation: CE Marked and comes with Certification
