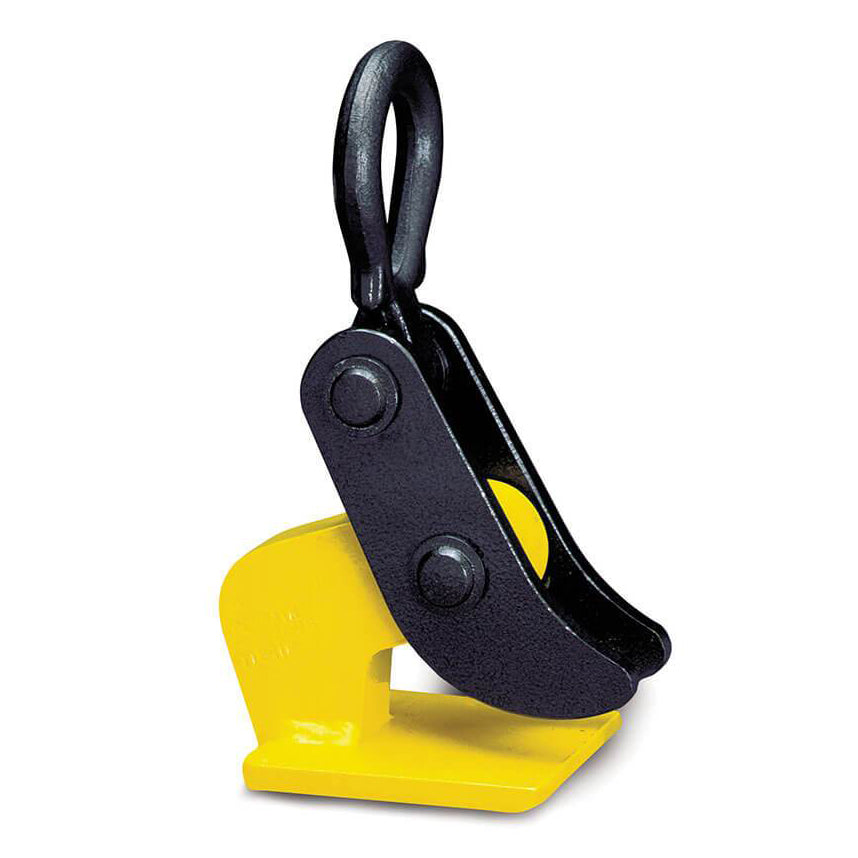

Camlok CH Horizontal Plate Clamps

SKU: CH1 | smooth
£285.00 (incl VAT) £237.50 (excl VAT)

Fast Despatch

Products typically despatched within 1-2 working days*

Compliance Training

Products include a certificate. Training provides a certificate upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Highest Rated Supplier

We're trusted to deliver. 100's of 5 star reviews on Trustpilot.

Products Typically despatched:
1 - 2 working days* / Access Training Orders Instantly

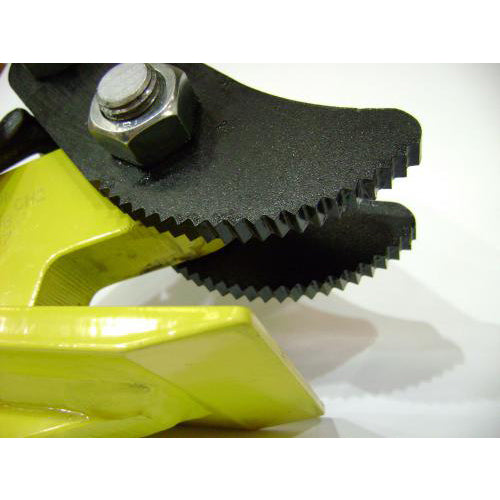

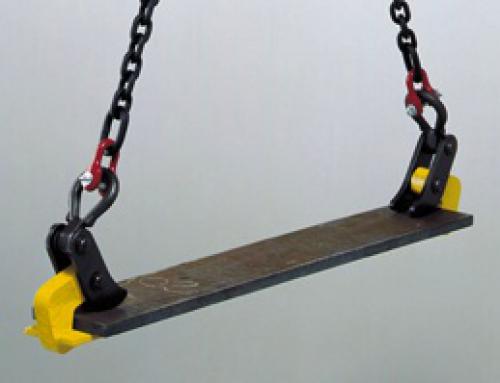

  • The Camlok industry standard CH horizontal plate clamps are available in working load limits (WLL) ranging between 1000kg and 10000kg. The CH horizontal plate clamps have been specifically designed to be used in pairs for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm. A pair of clamps used with a two legged chain sling are suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for handling of larger plates. These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth / serrated jaws for special applications, and can only be used for single plates, NOT bundles. Please contact our technical department for further details. These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs can be done by a competent person. NB. CH1 is fitted with a single jaw.
    Prices shown are for a pair of clamps.

  • Brand:
    Model: CH
    Jaw type options:

    Smooth jaw

    Serrated jaw

    WLL | Jaw Capacity Options:



    1000kg | From 5mm up to 32mm

    2000kg | From 5mm up to 32mm

    2000kg | From 20mm up to 50mm

    4000kg | From 5mm up to 50mm

    4000kg | From 50mm up to 100mm

    6000kg | From 5mm up to 75mm

    6000kg | From 50mm up to 125mm

    8000kg | From 5mm up to 75mm

    8000kg | From 50mm up to 125mm

    10000kg | From 5mm up to 100mm

    10000kg | From 50mm up to 150mm

    15000kg | From 5mm up to 100mm

    15000kg | From 50mm up to 150mm

    20000kg | From 5mm up to 100mm

    20000kg | From 50mm up to 150mm

    Number of pieces in pack: 2
    Origin: United Kingdom
    Documentation: UKCA / CE Mark where required and with Certification
  • Specification sheet: pdf
