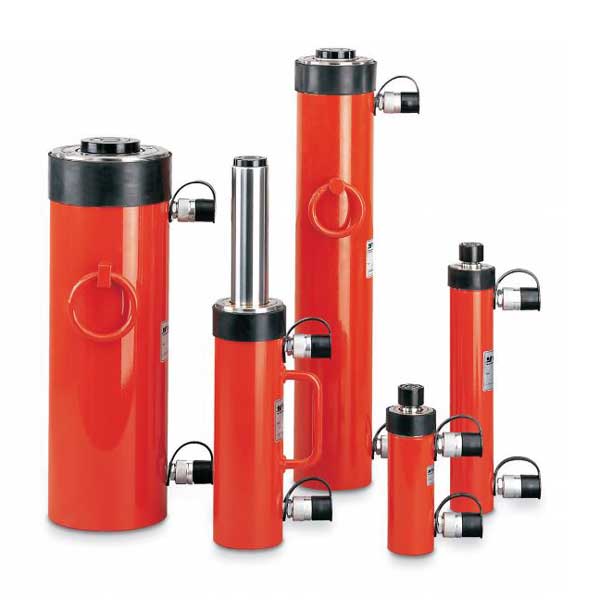

Yale YH Double-Acting Hydraulic Cylinders
SKU:
YH 5/30
£434.00
(incl VAT)
£361.67
(excl VAT)
Unit price
/
Unavailable
Yale YH Double-Acting Hydraulic Cylinders - 5 ton | 30mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast Despatch
Products typically despatched within 1-2 working days*
Compliance Training
Products include a certificate. Training provides a certificate upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Highest Rated Supplier
We're trusted to deliver. 100's of 5 star reviews on Trustpilot.
Products Typically despatched:
1 - 2 working days* / Access Training Orders Instantly
- Yale YH double-acting hydraulic cylinders are extremely robust cylinders especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed. Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required.
Features and benefits include: Yale ChroMo-Design. Operating pressure maximum 700 bar. Double-acting with hydraulic return. Long bronze piston guidings. Piston strokes from 30 up to 500mm. Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated. Double bronze bearing of the hard chromium plated piston. Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod. Stop ring can bear full capacity (pressure) and is fitted with dirt wiper. Interchangeable hardened saddle. Dirt wiper protects against dirt. Oil port thread 3/8 NPT. Includes 2 female coupler halves model CFY-1. From model YH-30/200 with carrying handle. From model YH-50/350 with 2 lifting rings. -
Brand:
Origin: United Kingdom Model number: YH
Capacity options: From 5 ton up to 100 ton Documentation: UKCA / CE Mark where required and with Certification
-
