230kg Forklift Jib Extender
-

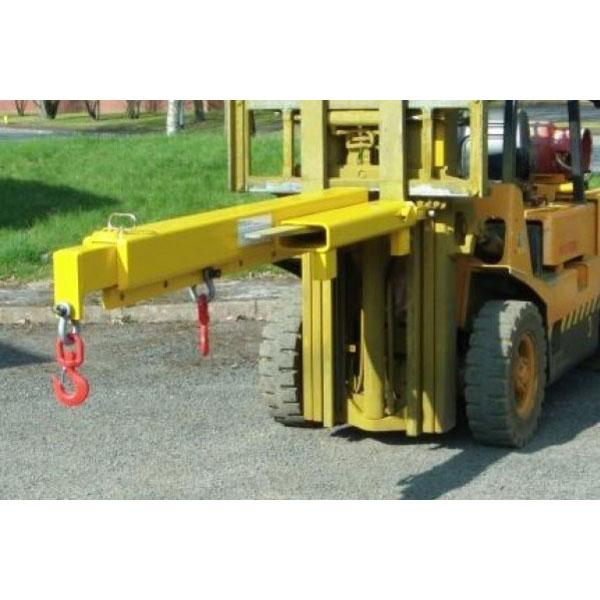

Offering the same characteristics as our Low Liner forklift jib, but with the added benefit of a manually extendable jib arm, our Tele Liner forklift jib gives an overall lifting reach of 3000mm (2000mm when closed), making it ideal for handling extra long loads. The jib comes with a multitude of different lifting positions on the underside which allows complete flexibility when it comes to handling loads at different lengths. Heel retention to the forklift forks ensures safe securement, whilst a lifting chart supplied on the jib provides all the information required to ensure the jib is not used beyond the limits of the forklift trucks capacity. Browse our full range of Forklift Attachments.
Features and benefits include: Extends out to 3000mm (2000mm closed) to allow loads to be picked up from greater distances, thus reducing handling costs. Low profile design allows for better access into areas where space is limited, helping to reduce manual handling and subsequent risk of injury. Jib rated to suit the capacity of the lift truck, reducing wear and tear on the lift truck and possibility of overloading. Multiple hook positions for flexible load handling whilst reducing handling costs. Long jib arm to reach otherwise inaccessible places (i.e. machinery motors), helping to reduce factory maintenance costs. Large fork pockets for instant drive in fitting, making jib quick and simple to fit and remove from lift truck. Heel retaining pins to ensure the jib is safely and securely fastened to the lift truck forks. CE marked and supplied with Certificate of Conformity for Health & Safety Regulations. -
Origin: United Kingdom Model Number(s): LLX 500-2.2 Jib Capacity(kg) @ Load Centre(mm): 230kg @ 3000mm Jib Capacity(kg) @ Load Centre(mm): 320kg @ 2750mm Jib Capacity(kg) @ Load Centre(mm): 440kg @ 2500mm Jib Capacity(kg) @ Load Centre(mm): 560kg @ 2250mm Jib Capacity(kg) @ Load Centre(mm): 750kg @ 2000mm Jib Capacity(kg) @ Load Centre(mm): 850kg @ 1750mm Jib Capacity(kg) @ Load Centre(mm): 1000kg @ 1500mm Jib Capacity(kg) @ Load Centre(mm): 1100kg @ 1250mm Jib Capacity(kg) @ Load Centre(mm): 1400kg @ 1000mm Jib Capacity(kg) @ Load Centre(mm): 1800kg @ 750mm Jib Capacity(kg) @ Load Centre(mm): 2200kg @ 500mm Truck Capacity: 2200kg Closed length: 2000mm Opened length: 3000mm Fork Spread: 385mm Documentation: UKCA / CE Mark where required and with Certification -
Specification sheet:
