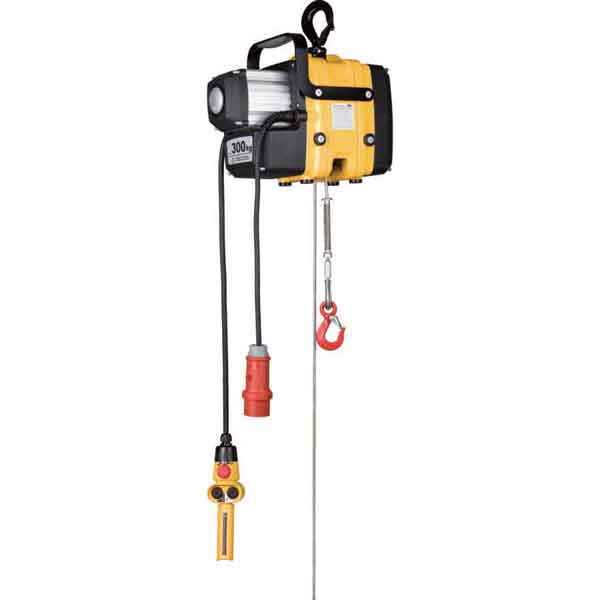

Yale Mtrac Mini Endless Electric Wire Rope Winches

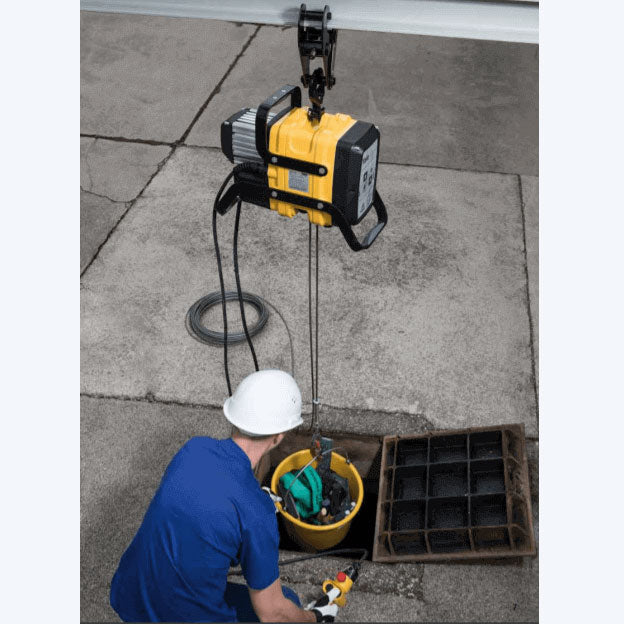

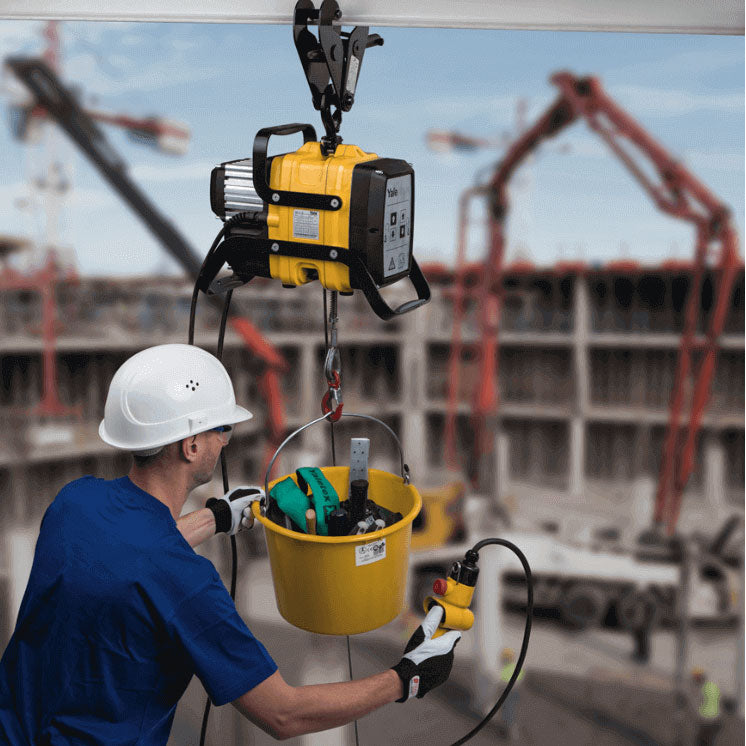

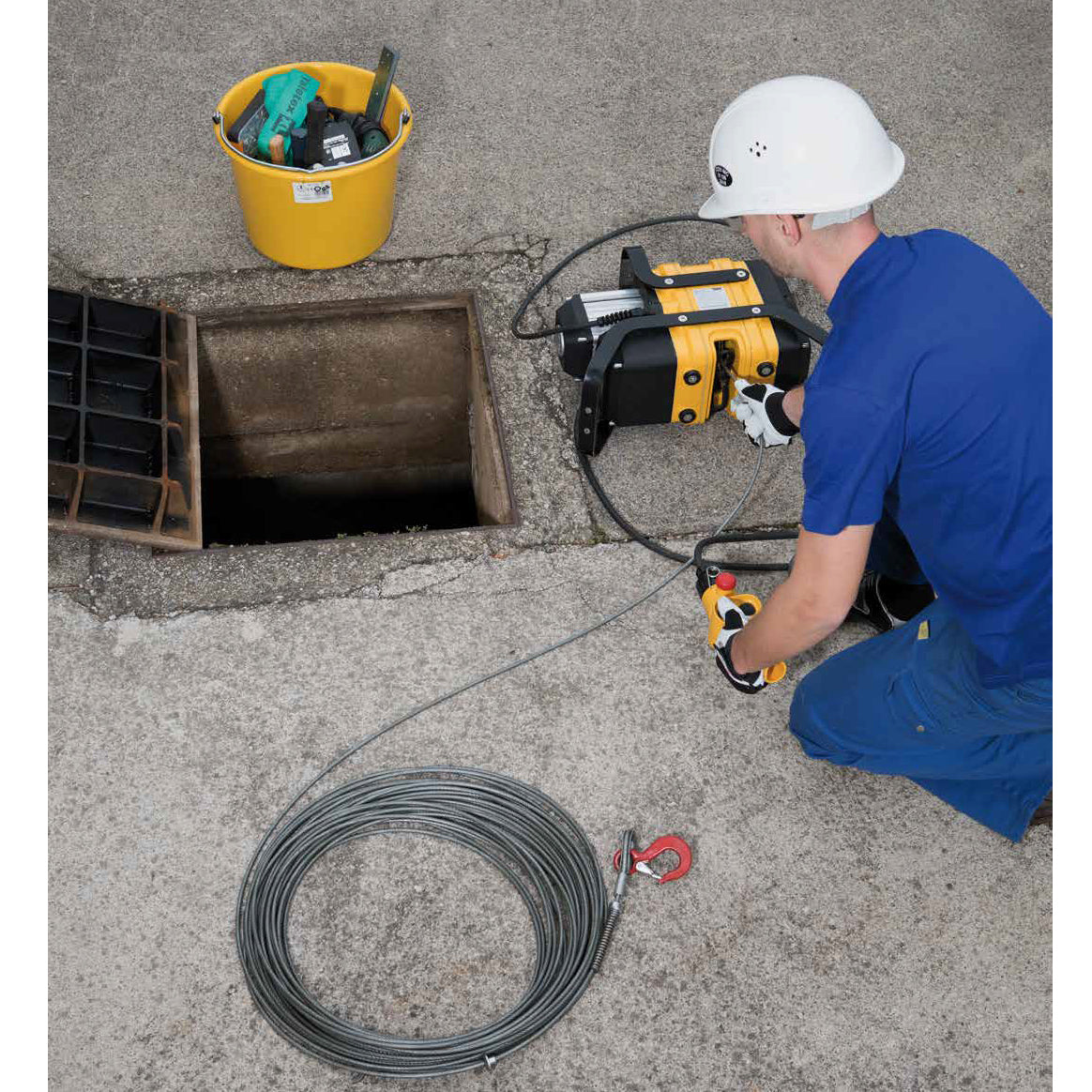

The YaleMtrac endless electric wire rope winch combines state-of-the-art industrial design with technical innovation to solve a specific customer need – the need for a safe and simple handling solution for mobile applications. We did just that. Because the rope of the endless winch is not collected during operation, there is no limit to the lifting height and traction length when using this product. And, with a full offering of wire ropes and accessories, this winch can be used in virtually any application requiring a hoist.

Features: Capacities 66kg to 500kg in single-reeved configuration (up to 1000kg in two-part reeved configuration, optional). Control pendant (IP 65) is connected via a control cable. Standard 1 meter power cable fitted with a CEE connector plug. 42V low-voltage control. Ergonomic, fitted carrying handle features a comfortable plastic grip. Mounting feet fixed on the housing for easy set up. Operating voltages of 400v 3-ph 50Hz or 230v 1-ph, 50Hz Galvanized, high-density, rotation-resistant steel rope is 10m long (dia. 6.5mm) and features a safety hook with a rounded, plastic-coated tip at the loose end. Two spring buffers with adjusting rings can be attached to the wire rope to set the limit switches for both upward and downward movement.

Finish details: Drive sheave is made of especially hardened steel designed to ensure long service life. The patented (German Patent DE 10 2012 100 099) bi-directional paddle actuator ensures the rope is safely guided and securely held in place. Slip clutch is located outside of the load path for added safety. Limit switches ensure safe cut-out for the upper and lower hook positions. Electromagnetic brake holds the load safely, even in the event of a power failure. Winch is classified up to 1 Bm/M3 acc. to FEM/ISO. Winch is protected up to IP 55.
