Tigrip TKG-VHS Self Weight Balance Crane Forks
Couldn't load pickup availability
Fast Shipping
Products typically dispatched within 1-2 working days*
Certification
Products include certification and training courses issue certificates upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Best Rated
Trusted across the UK for lifting expertise and industry knowledge
-

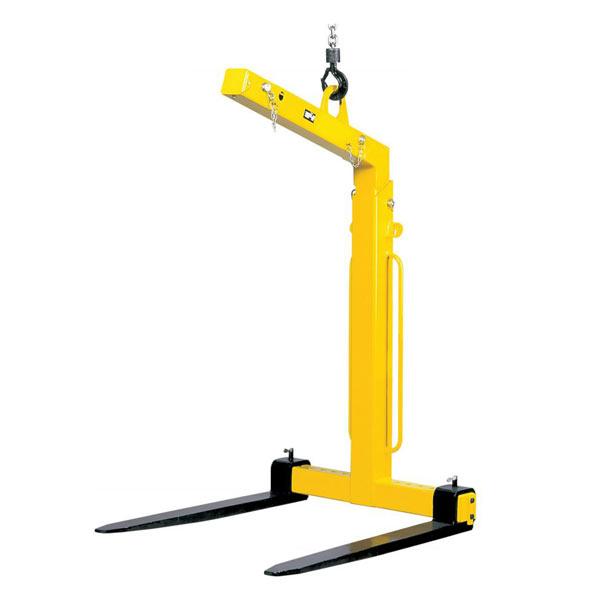

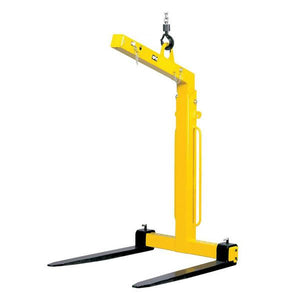

The TKG-VHS range of crane forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system. Crane forks with self weight balancing* tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines. The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down. For efficient operation of this mechanism the load must be greater than 20 percent of the working load limit.
Features and benefits include: Factor of safety 4 : 1 Maintenance free. Highly visible safety colour. For transporting rings or coils, simply push fork tines together. Easily adjustable tines for all pallet sizes. Supplied with chain for securing the load.
Note: This item will be delivered flat packed. Need of assembly on arrival.
-
Brand:
Origin: United Kingdom Capacity options: From 200kg up to 1000kg
From 400kg up to 2000kg
From 600kg up to 3000kg
From 1000kg up to 5000kg
Length of tines: 1000mm Number of pieces in pack: 1 Documentation: UKCA / CE Mark where required and with Certification
-
Specification sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQS ABOUT Tractel Corso Push Trolley
What is the Tractel Corso Push Trolley used for?
What is the Tractel Corso Push Trolley used for?
The Tractel Corso Push Trolley is a manual push beam trolley that creates a movable suspension and anchor point for lifting equipment on steel beams. It is designed for construction, engineering, maintenance, industrial and material-handling users who need to move compatible lifting equipment along a beam for lifting, load positioning or handling.
How do I choose the correct Tractel Corso Push Trolley?
How do I choose the correct Tractel Corso Push Trolley?
Choose the Tractel Corso according to the required Working Load Limit (WLL) and the supporting steel beam's flange width. The range covers 250 kg to 20,000 kg WLL, with compatible beam widths varying by model from 45 mm to 320 mm. Check the actual beam dimensions and required load against the exact model specification before purchasing, and never exceed the trolley's WLL.
Can the Tractel Corso Push Trolley be used on straight and sloping beam flanges?
Can the Tractel Corso Push Trolley be used on straight and sloping beam flanges?
Yes. The Corso is designed for steel beams with straight or sloping flanges, with its opening manually adjusted to suit the beam profile. The selected model must still accommodate the supporting beam's flange width and be suitable for the required load.
Where and when should I use a Tractel Corso Push Trolley?
Where and when should I use a Tractel Corso Push Trolley?
The Corso is suitable for construction sites, engineering facilities, workshops, maintenance environments and industrial applications where a manually movable lifting point is required. It is useful when compatible lifting equipment needs to be repositioned along a steel beam rather than suspended from a fixed point.
What lifting equipment is compatible with the Tractel Corso?
What lifting equipment is compatible with the Tractel Corso?
The Corso provides a suspension point for compatible lifting equipment including Tirfor, Bravo, Tralift and Minifor. The suspended lifting equipment can then travel manually along the supporting steel beam. The specific trolley, lifting equipment, beam dimensions and WLL must be suitable for the complete lifting arrangement.
What UK regulations and standards apply to the Tractel Corso Push Trolley?
What UK regulations and standards apply to the Tractel Corso Push Trolley?
For workplace lifting operations in Great Britain, applicable LOLER 1998 requirements cover the safe use and thorough examination of lifting equipment, while PUWER 1998 covers relevant work-equipment requirements. These are workplace legal requirements, not product certifications or markings. Tractel states that the Corso is in accordance with the EU Machinery Directive 2006/42/EC. The trolley must be selected and used according to its WLL, beam compatibility and manufacturer's instructions.
