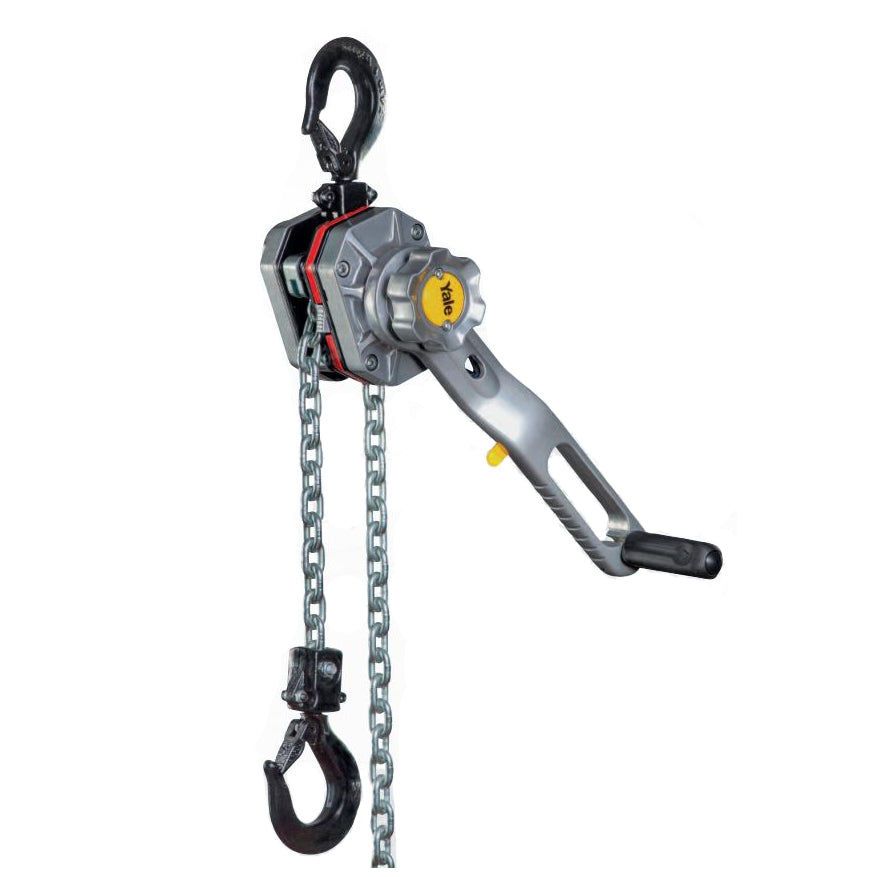

YaleERGO 360 Utility Ratchet Lever Hoist

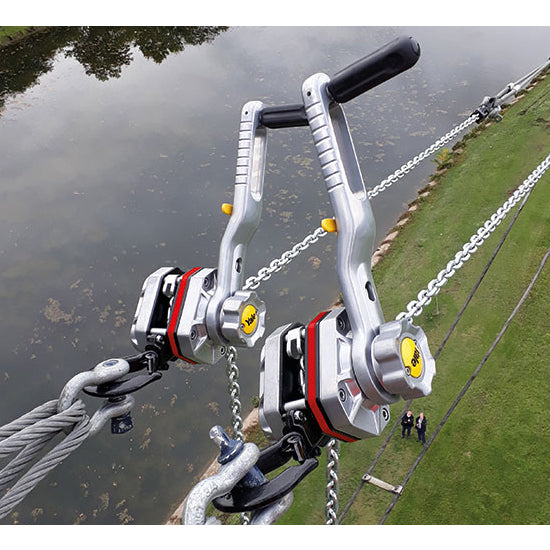

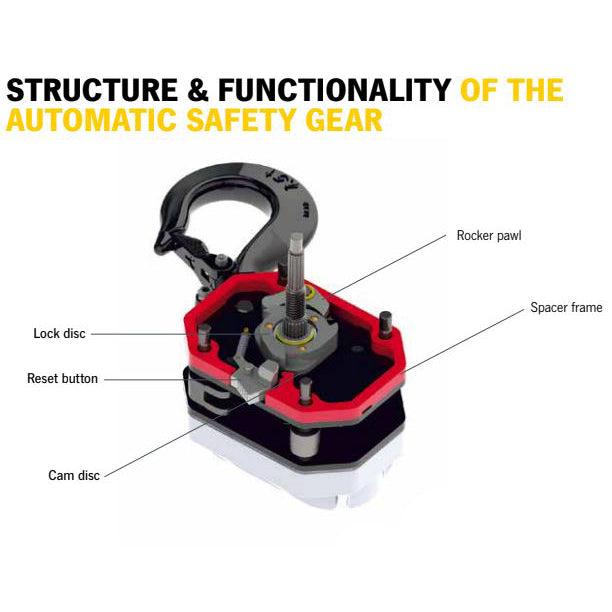

The Yale ERGO 360 Utility Ratchet Lever Hoist is redefining lever-operated hoists. An ideal ratchet lever hoist for the likes of Electricity Companies, Rail Companies and Shipping Companies. With capacities ranging from 700kg to 9000kg the Yale ERGO 360 features the revolutionary crank handle that allows for efficient operation in both lifting and pulling applications. Ergonomically designed for increased safety, the patent-pending Yale ERGO 360 lets the operator work up to 12 times faster and with as much as 30% less effort than with conventional ratchet lever tools. Special applications such as overhead line construction require specialist lifting equipment. In accordance with EN 1808 - Safety requirements for suspended access equipment, 8.9.2, the new YaleERGO UT is supplied fitted with an automatically acting safety device, which offers even more security when used in overhead line construction or similar areas. The innovative safety device, patent-pending, which prevents a sudden load drop or run through works when a certain speed is exceeded during use as well as during inactive phases - especially when the device has been left under tension for long periods of time. The system safely absorbs the load after only 25-50mm of chain movement preventing the creation of larger dynamic forces which could cause further damage. Another highlight is the possibility of being able to lift at any time - even after the safety device has been triggered. By simply turning the hand lever a full turn in the lift direction, the safety device is automatically unlocked. It can then be returned to its original position at the push of a button. This means that the device can be removed and checked at any time with minimal effort and/or downtime.

Features:

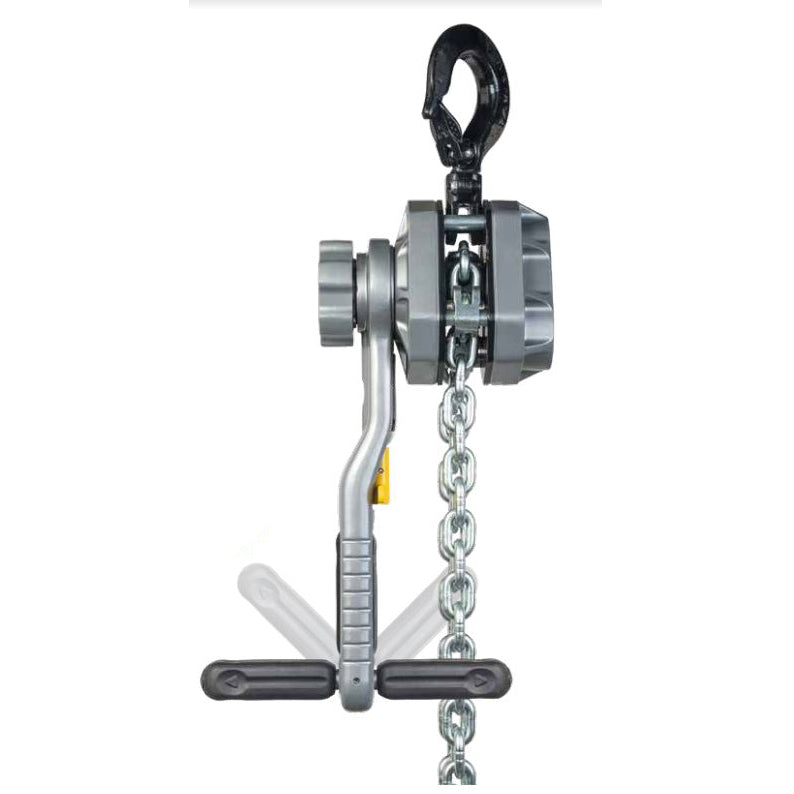

Optional Overload Protection device. 360° rotation increases efficiency, allowing operators to work up to 12 times faster than with a conventional ratchet lever hoist. Crank handle made of durable polyamide with a heavy-duty steel core for rugged use. Easy and effective operation from any angle with a handle that folds down and locks into position on either side of the lever. The design keeps the operator’s body aligned with the load chain, reducing the risk of the twist effect – when a hoist twists around the chain. No need to use a second hand to stabilise the hoist. Operator can securely grip the grooved, no-slip handle. Requires 30% less effort to operate.
