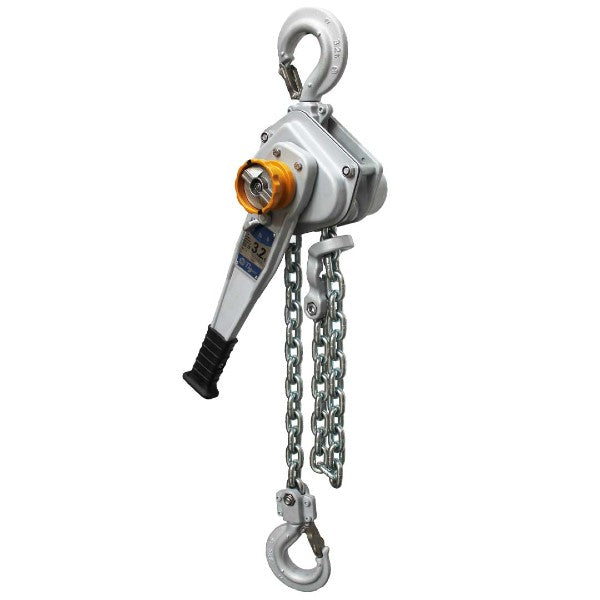

Tiger SS19 Subsea Lever Hoist
Couldn't load pickup availability
Fast Shipping
Products typically dispatched within 1-2 working days*
Certification
Products include certification and training courses issue certificates upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Best Rated
Trusted across the UK for lifting expertise and industry knowledge
-
All Tiger SS19 Subsea lever hoists are manufactured from the highest quality materials precisely machined, thus producing strong products with high resistance to impact damage. The hoists are finished in a high quality powder coat paint offering excellent corrosion protection. This all ensures they are ideal hoists for long-term use with less maintenance and servicing costs. The strong impact resistant gearbox housing, complete with close tolerance fit bearings that fully support the pinion shaft and planet gears, maintains smooth revolutions whilst under load. High gear ratios keep physical effort to a minimum; this provides maximum mechanical efficiency.
Features & benefits:
• Suitable for use in multi-immersion applications. DNV GL Verification tested according to NORSOK R-002.
• This product ranges from 800kg to 20 tonne.
• Equipped with a unique intelligent dual brake system, globally patent protected, quad cam pawl and ratchet design and a unique load sensing torsion brake.
• Thousands of hours of empirical evidence as proof of design DU® self-lubricating metal polymer bearings. Phosphor bronze bearings. One-piece construction pinion gear. Meets and exceeds IMCA DO28 Rev 2 guidance notes for offshore lever hoists.
• Light load protection at 2% of the rated capacity. Adaptable to use both inverted and horizontally. Full face gasket provides brake chamber protection from outside contamination.
• Fully Corrosion protected body and components to ensure reliable long-term use. Over 1500 hours protection to ASTM B117 conditions. Adjustable chain end anchorage specifically designed to the contours of the hoist.
• Available with slipping clutch overload protection.
We provide online training for this product. Learn more about this Lever Hoist course. -
Brand:
Model: SS19 Origin: United Kingdom Working Load Limit Options: 800kg
1.6 tonne
3.2 tonne
6.3 tonne
8 tonne
10 tonne
15 tonne
20 tonne
Height of Lift Options: 3 meter
4 meter
5 meter
6 meter
7 meter
8 meterDocumentation: UKCA / CE Mark where required and with Certification -
Specification sheet:
