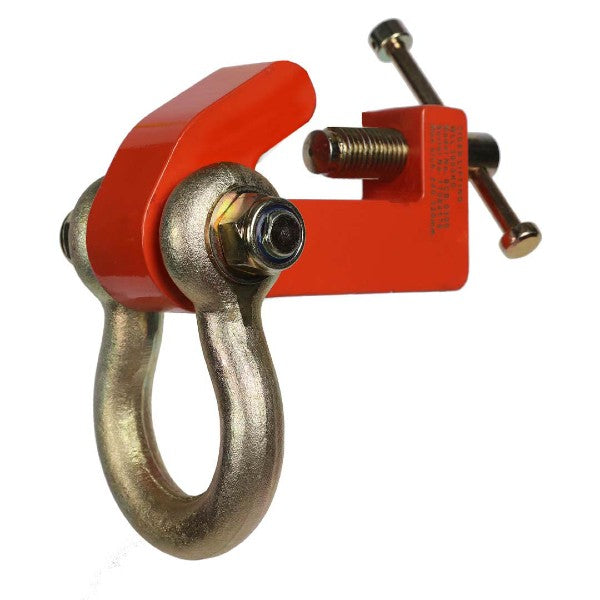

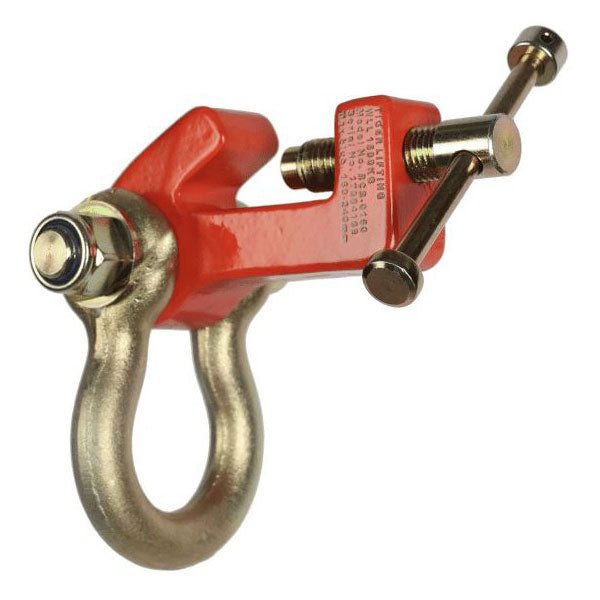

Tiger BCB Bulb Flat Bar Anchor Clamp

The Tiger BCB Bulb Bar Anchor Clamp is designed for attaching to bulb profiles of bulb flat bars approved for lifting applications. These Bulb Bar Anchor Clamps are often found in ship compartments, engine rooms and overhead bridge deck structures. The bulb bar anchor provides a semi-permanent lifting point. The large integrated shackle gives easy connection for all different types of lifting machines. The BCB bulb flat bar anchor can be side loaded up to 45° and cross loaded up to 15° without derating the unit, whilst still maintaining a 4:1 factor of safety.

Please note that this model must NOT be used for lifting beams. It is a suspension point.

Features:
• 1.5t and 3t capacities available.
• Quick and versatile rigging point for hoisting equipment when attached to bulb flat bars approved for lifting applications.
• Shackle suspension point No tools required – integrated adjusting screw spindle.
• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option).
• Up to 45° side loading with no deration 15° cross loading with no deration.
• Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated above.
