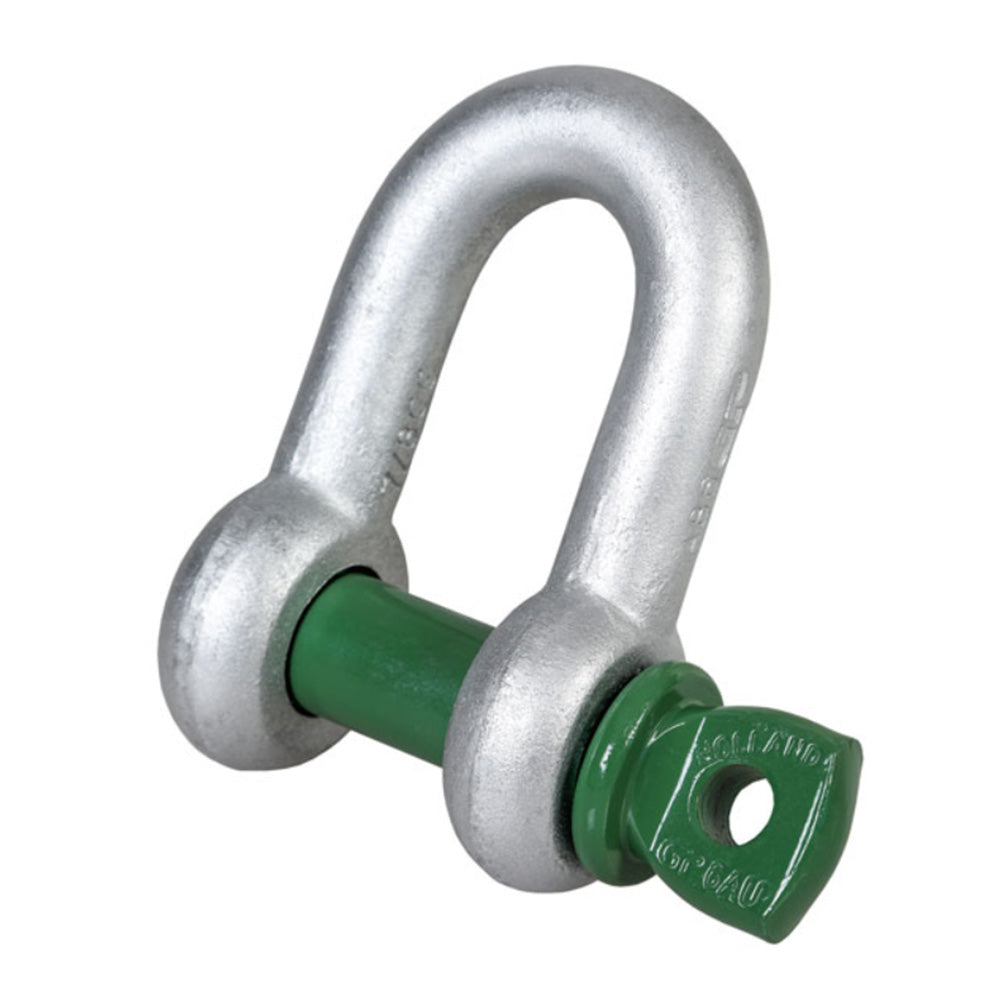

Green PinĀ® Dee Shackles with Screw Collar Pin
Couldn't load pickup availability
Fast Shipping
Products typically dispatched within 1-2 working days*
Certification
Products include certification and training courses issue certificates upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Best Rated
Trusted across the UK for lifting expertise and industry knowledge
-
The Green PinĀ® Standard Dee Shackle with Screw Collar Pin is a Grade 6 high-tensile steel lifting shackle for professional lifting and rigging applications. Its quenched and tempered body and pin provide a secure, detachable connection for compatible lifting equipment such as slings and chains, while the hot-dip galvanised finish helps protect the shackle in demanding working environments. Available in working load limit options from 0.33t to 55t, it should be selected by the required WLL, shackle size and the configuration of the complete lifting arrangement. The supplied specification states conformity to BS EN 13889 for sizes from 0.5t to 25t and performance requirements to US Federal Specification RR-C-271 Type IVA, Class 2, Grade A; sizes from 2t upwards comply with ASME B30.26.
The minimum breaking load is six times the marked WLL, with a specified operating temperature range of -40Ā°C to +200Ā°C. Never exceed the WLL or use the shackle outside its intended connection, size or operating conditions. For lifting equipment used at work in Great Britain, LOLER requirements for safe use, examination and inspection should be considered, while PUWER may apply to associated work equipment; neither regulation is a product certification. Full CAD support is available on request, and certificates including 2.1, 3.1, Declaration of Conformity and DNV GL 0378 are available where applicable, so check the documentation supplied for the selected size.
-
Brand:
Model: GPSCD Origin: United Kingdom Working load limits: 0.33t to 55t Material: Quenched and tempered Grade 6 steel Finish: Hot-dip galvanised Standards: BS EN 13889; ASME B30.26 for sizes from 2t upwards Certification: UKCA / CE marking where required. Refer to the certification supplied with the selected size. -
Specification sheet:
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQS Green PinĀ® Dee Shackles with Screw Collar Pin
What is a Green PinĀ® Dee Shackle with Screw Collar Pin used for?
What is a Green PinĀ® Dee Shackle with Screw Collar Pin used for?
It is a Grade 6 high-tensile steel lifting shackle for connecting compatible slings, chains and other rigging equipment in professional lifting arrangements. The screw collar pin provides a detachable connection.
How do I choose the right Green PinĀ® Dee Shackle size and WLL?
How do I choose the right Green PinĀ® Dee Shackle size and WLL?
Choose the marked working load limit (WLL) that is suitable for the load and complete lifting arrangement, then check the shackle size, jaw and pin fit the connected equipment. WLL options range from 0.33t to 55t, and the marked WLL must not be exceeded.
Who is the Green PinĀ® Dee Shackle with Screw Collar Pin suitable for?
Who is the Green PinĀ® Dee Shackle with Screw Collar Pin suitable for?
It is intended for professional lifting and rigging applications where a compatible, detachable shackle connection is required. The user must confirm the selected WLL, size, connection and operating conditions suit the complete arrangement.
Where can I use this Green PinĀ® Dee Shackle?
Where can I use this Green PinĀ® Dee Shackle?
Use it only in compatible lifting arrangements with suitable slings, chains, hooks or other rigging equipment, including demanding working environments where its size, WLL and finish are appropriate. It is not a universal-fit connection.
Why choose a Green PinĀ® Dee Shackle with a Screw Collar Pin, and what standards apply?
Why choose a Green PinĀ® Dee Shackle with a Screw Collar Pin, and what standards apply?
The screw collar pin provides a detachable connection for compatible lifting equipment. The supplied specification states BS EN 13889 for sizes from 0.5t to 25t, RR-C-271 Type IVA, Class 2, Grade A, and ASME B30.26 for sizes from 2t upwards. The minimum breaking load is six times the marked WLL, with a specified operating range of -40Ā°C to +200Ā°C.
When do LOLER and PUWER apply when using this lifting shackle?
When do LOLER and PUWER apply when using this lifting shackle?
For lifting equipment used at work in Great Britain, LOLER requirements for safe use, thorough examination and inspection should be considered. PUWER may apply to associated work equipment. Neither regulation is product certification.
