Yale has a comprehensive range of products which includes chain blocks, lever hoists, electric chain hoists, push beam trolleys, cranes, festoon cable systems, load hoisting tackles and crane weighers, tool balancers, textile lifting and lashing equipment, material handling equipment and load moving systems, hydraulic tools, bolting technology as well as workshop equipment. The prominently yellow products, which are delivered ready for operation, are used world-wide for the most varied industrial and commercial applications
46 products
46 products
250kg Yale VSIII Chain Block
Regular price £135Description
The Yale VSIII manual chain hoist with improved hand chain guide prevents tilting or jamming of the hand chain, leading to a smooth running of the chain.
High quality bearings on side plates, gearbox and load chain sheave ensure smooth operation of load chain and drive pinion.
Optimised hand forces set standards for easy operation.
Features include:
- High quality bearings for gearbox, side plates and load chain sheave for long service life.
- Zinc-plated brake parts & guide rollers ensure increased corrosion protection.
Specifications
Brand:
Origin: United Kingdom Capacity: 250kg Falls of Load Chain: 1 Length of Load Chain Options: From 3 metre up to 12 metre Documentation: CE Marked and comes with Certification
750kg Yale UNOplus Lever Hoist
Regular price £168Description
The Yale UNOplus is a versatile ratchet lever hoist designed for pulling, lifting, and lashing of loads.
Its features include a compact design, robust stamped steel construction, and a favourable price / efficiency ratio.
The unit is very lightweight and comes complete with a free chaining device as standard that serves to quickly attach the load or to pull the chain through the hoist in both directions.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 750kg |
| Falls of Load Chain: | 1 |
| Lifting Height: | 1.5 metre or 3 metres |
| Documentation: | CE Marked and comes with Certification |
250kg Yale Handy Lever Hoist
Regular price £126Description
Due to the multitude of application possibilities, e.g. industry, trade, and service, this ratchet lever hoist really is indispensable.The extremely low tare weight and very compact design makes the hoist easy to use, even in very confined working conditions.
The standard free chaining device serves to quickly attach the load or to pull the chain through the hoist in both directions.Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 250kg |
| Falls of Load Chain: | 1 |
| Lifting Height: | 1.5 metre or 3 metres |
| Closed Height: | 240mm |
| Documentation: | CE Marked and comes with Certification |
800daN Yale HW-CS80 Spur Gear Drive Stainless Steel Wire Rope Winch
Regular price £366Description
Features and benefits include:
- Winch housing and rope drum is made from stainless steel.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- The stainless steel design gives more protection against the elements faced when outdoors.
- Suitable for operation in ambient temperatures of -100 to +500
Applications:
Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Wire rope sold separately
Specifications
| Brand: |
|
| Origin: | United Kingdom |
| Model: | HW-CS80 |
|
Lifting/pulling capacity - 1st rope layer: |
800daN |
|
Lifting capacity - upper layer: |
400daN |
| Crank effort 1st rope layer: | 20daN |
| Ratio: | 10:1 |
|
Recommended Wire rope diameter: |
8mm |
|
Minimum breaking load of wire rope: |
43.8kN |
|
Maximum wire rope storage: |
15 meters |
| Maximum number of rope layers: |
7
|
| Weight without wire rope: | 10.1kg |
| Documentation: | CE Marked and comes with Certification |
300daN Yale HW-CS30 Spur Gear Drive Stainless Steel Wire Rope Winch
Regular price £217Description
Features and benefits include:
- Winch housing and rope drum is made from stainless steel.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- The stainless steel design gives more protection against the elements faced when outdoors.
- Suitable for operation in ambient temperatures of -100 to +500
Applications:
Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Wire rope sold separately
Specifications
| Brand: |
|
| Origin: | United Kingdom |
| Model: | HW-CS30 |
|
Lifting/pulling capacity - 1st rope layer: |
300daN |
|
Lifting capacity - upper layer: |
120daN |
| Crank effort 1st rope layer: | 22daN |
| Ratio: | 4.2:1 |
|
Recommended Wire rope diameter: |
5mm |
|
Minimum breaking load of wire rope: |
13.6kN |
|
Maximum wire rope storage: |
20 meters |
| Maximum number of rope layers: |
9
|
| Weight without wire rope: | 3.8kg |
| Documentation: | CE Marked and comes with Certification |

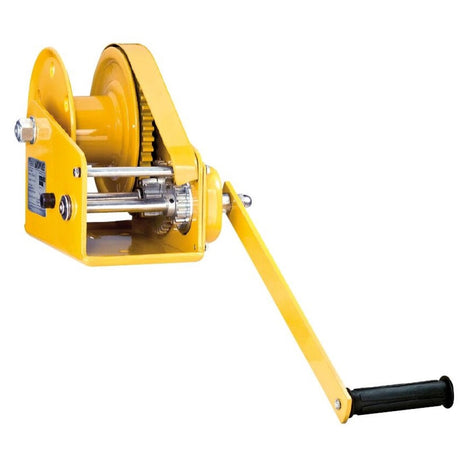

800daN Yale HW-C80 Spur Gear Drive Wire Rope Winch
Regular price £149Description
Features and benefits include:
- Winch housing and rope drum from robust steel plate for high versatility.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- The wire rope winch comes with a high visibility, yellow powder coated finish as standard.
- Suitable for operation in ambient temperatures of -100 to +500
Applications:
Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Wire rope sold separately
Specifications
| Brand: |
|
| Origin: | United Kingdom |
| Model: | HW-C80 |
|
Lifting/pulling capacity - 1st rope layer: |
800daN |
|
Lifting capacity - upper layer: |
400daN |
| Crank effort 1st rope layer: | 20daN |
| Ratio: | 10:1 |
|
Recommended Wire rope diameter: |
8mm |
|
Minimum breaking load of wire rope: |
34.8kN |
|
Maximum wire rope storage: |
15 meters |
| Maximum number of rope layers: |
7
|
| Weight without wire rope: | 10.1kg |
| Documentation: | CE Marked and comes with Certification |
300daN Yale HW-C30 Spur Gear Drive Wire Rope Winch
Regular price £87Description
Features and benefits include:
- Winch housing and rope drum from robust steel plate for high versatility.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- The wire rope winch comes with a high visibility, yellow powder coated finish as standard.
- Suitable for operation in ambient temperatures of -100 to +500
Applications:
Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Wire rope sold separately
Specifications
| Brand: |
|
| Origin: | United Kingdom |
| Model: | HW-C30 |
|
Lifting/pulling capacity - 1st rope layer: |
300daN |
|
Lifting capacity - upper layer: |
120daN |
| Crank effort 1st rope layer: | 22daN |
| Ratio: | 4.2:1 |
|
Recommended Wire rope diameter: |
5mm |
|
Minimum breaking load of wire rope: |
13.6kN |
|
Maximum wire rope storage: |
20 meters |
| Maximum number of rope layers: |
9
|
| Weight without wire rope: | 3.8kg |
| Documentation: | CE Marked and comes with Certification |
5000kg Yale VSIII Chain Block
Regular price £430Description
The Yale VSIII manual chain hoist with improved hand chain guide prevents tilting or jamming of the hand chain, leading to a smooth running of the chain.
High quality bearings on side plates, gearbox and load chain sheave ensure smooth operation of load chain and drive pinion.
Optimised hand forces set standards for easy operation.
Features include:
- High quality bearings for gearbox, side plates and load chain sheave for long service life.
- Zinc-plated brake parts & guide rollers ensure increased corrosion protection.
Specifications
Brand: Origin: United Kingdom Capacity: 5000kg Falls of Load Chain: 1 Length of Load Chain Options: From 3 metre up to 12 metre Documentation: CE Marked and comes with Certification
3000kg Yale VSIII Chain Block
Regular price £323Description
The Yale VSIII manual chain hoist with improved hand chain guide prevents tilting or jamming of the hand chain, leading to a smooth running of the chain.
High quality bearings on side plates, gearbox and load chain sheave ensure smooth operation of load chain and drive pinion.
Optimised hand forces set standards for easy operation.
Features include:
- High quality bearings for gearbox, side plates and load chain sheave for long service life.
- Zinc-plated brake parts & guide rollers ensure increased corrosion protection.
Specifications
Brand: Origin: United Kingdom Capacity: 3000kg Falls of Load Chain: 1 Length of Load Chain Options: From 3 metre up to 12 metre Documentation: CE Marked and comes with Certification
2000kg Yale VSIII Chain Block
Regular price £222Description
The Yale VSIII manual chain hoist with improved hand chain guide prevents tilting or jamming of the hand chain, leading to a smooth running of the chain.
High quality bearings on side plates, gearbox and load chain sheave ensure smooth operation of load chain and drive pinion.
Optimised hand forces set standards for easy operation.
Features include:
- High quality bearings for gearbox, side plates and load chain sheave for long service life.
- Zinc-plated brake parts & guide rollers ensure increased corrosion protection.
Specifications
Brand: Origin: United Kingdom Capacity: 2000kg Falls of Load Chain: 1 Length of Load Chain Options: From 3 metre up to 12 metre Documentation: CE Marked and comes with Certification
5000kg Yale HTP Beam Push Trolley
Regular price £388Description
The Yale HTP push travel trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features:
- It has excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
- Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
- Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
- The trolley wheels are designed for a maximum beam profile incline of 14 % (DIN 1025 - part 1).
- Trolleys are in accordance with the UVV and machinery directives.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 5000kg |
| Beam Width Option: | From 90mm up to 220mm |
| Beam Width Option: | From 180mm up to 300mm |
| Documentation: | CE Marked and comes with Certification |
3000kg Yale HTP Beam Push Trolley
Regular price £275Description
The Yale HTP push travel trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features:
- It has excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
- Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
- Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
- The trolley wheels are designed for a maximum beam profile incline of 14 % (DIN 1025 - part 1).
- Trolleys are in accordance with the UVV and machinery directives.
Specifications
| Brand: | |
| Origin: | United Kingdom |
| Capacity: | 3000kg |
| Beam Width Option: | From 74mm up to 220mm |
| Beam Width Option: | From 180mm up to 300mm |
| Documentation: | CE Marked and comes with Certification |
