hydrualic cylinders





When the operation of your business involves the need to lift and move heavy equipment, you are likely to be benefiting from hydraulic cylinders without even giving it a second thought.

Though you may not have recognised it, a hydraulic cylinder is a highly important apparatus that helps to ensure the safe and efficient movement of heavy items or substances.

By understanding the different types of hydraulic cylinders available on the market and their purpose, you will be able to determine how they will be able to assist you in the course of business. Read on to find out more about what they are and how they can benefit your work.

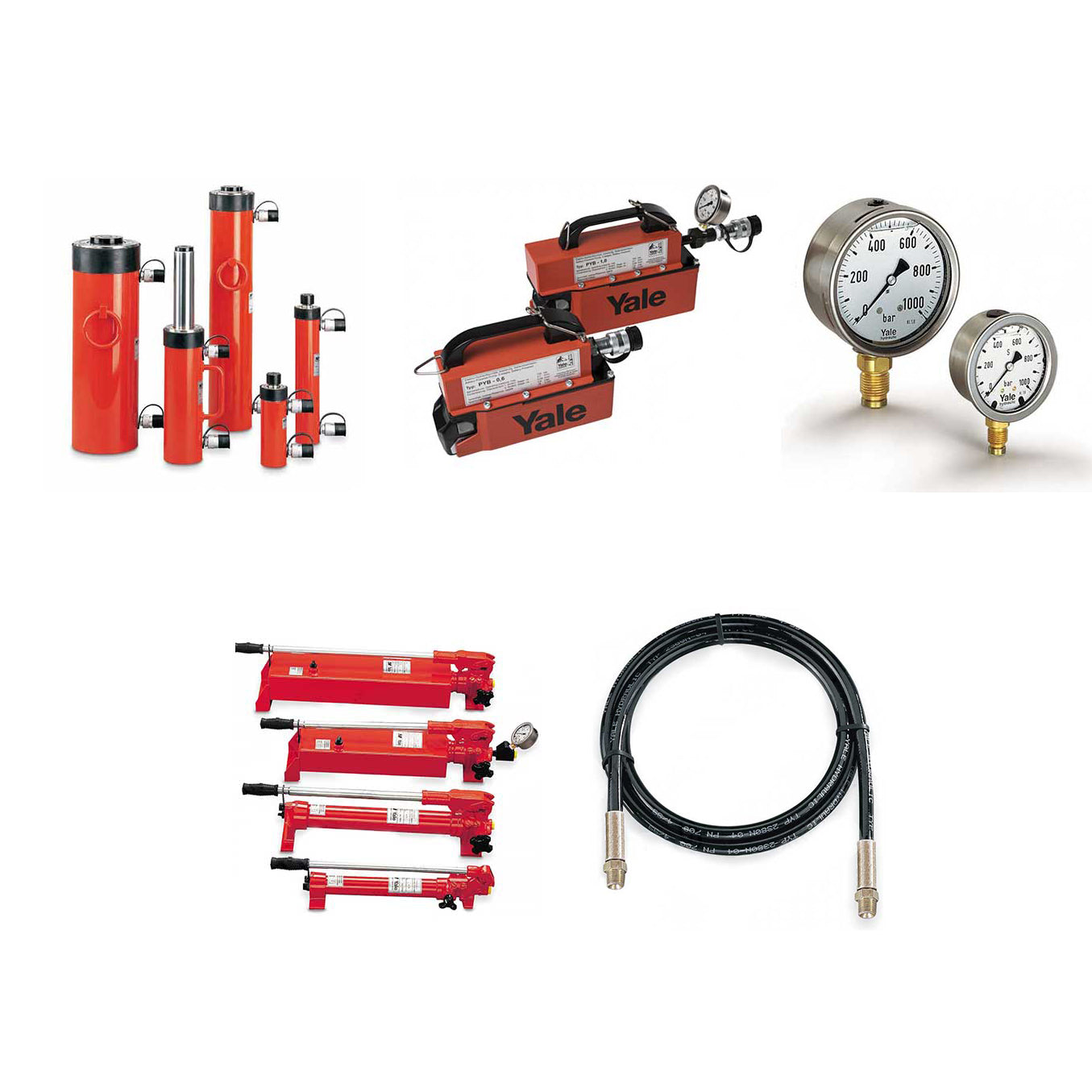

 hydraulics



The Purpose of Hydraulic Cylinders



Whether your business is conducted on the road, such as through the transportation of goods, or from a static base, such as from a warehouse or similar commercial space, you are likely to have taken advantage of hydraulic cylinders. If you haven’t, you probably could and definitely should.

These components make it possible to lift things that comprise a significant amount of weight without a significant amount of effort or an external power source. The exertion that it can achieve comes from the pressure created within the apparatus, which comes from how the various parts work together.

A hydraulic cylinder comprises a number of different parts, including a piston, piston rod, cylinder head and barrel. The position of the pistons and the inclusion of hydraulic fluid creates a circumstance where a small amount of pressure leads to a great deal more force at the other end. In simple terms, they make it possible to use sufficient force to lift a great deal of weight that is significantly in excess of the force used to create it.



Types of Hydraulic Cylinder



Hydraulic cylinders can be used for a number of different purposes, and as a result, there is a range of different types available. They can be used in a range of equipment types, from heavy goods transporter vehicles to scissor lifts.

Though every quality hydraulic cylinder will offer the same high-level ability, recognising the differences between them will ensure that you obtain the right one for your needs. The types available include:



Yale YS Universal Hydraulic Cylinder

  • Robust design constructed from chromium-molybdenum steel
  • Maximum operating pressure: 700 bar
  • Single, quick release connection and spring return
  • Capable of handling uneven loads
  • Integrated dirt protection for easy maintenance
  • Different models variously comprise carrying handle and lifting rings



Yale YLS Low Height Hydraulic Cylinder

  • Comprises two lifting rings
  • Maximum operating pressure: 700 bar
  • Ideal for use in small spaces
  • Capable of full pressure due to stop ring
  • Heat-treated chromium-molybdenum steel construction



Yale YELB Hydraulic Cylinder with Safety Lock

  • Reliable piston guiding
  • Ideal for heavy-duty lifting and where the load needs to remain in the lifted position
  • Maximum operating pressure: 700 bar
  • Single action gravity return
  • Construction comprises trapezoidal thread and hard chromium-plated piston
  • Definite piston end stop created from the overflow hole
  • Hardened saddle is interchangeable



Yale YFS Flat Hydraulic Cylinder

  • Compact design suitable for use in small spaces
  • Maximum operating pressure: 700 bar
  • Single action spring return
  • Heat-treated chromium-molybdenum steel construction
  • Integrated dirt protection for easy maintenance
  • Not suitable for sideloading



Yale YH Double-Acting Hydraulic Cylinder

  • Double action with hydraulic return creates high-speed retraction
  • Maximum operating pressure: 700 bar
  • Heat-treated chromium-molybdenum steel construction
  • 30mm to 500mm piston strokes
  • Hardened saddle can be interchanged
  • Long bronze piston guiding
  • Integrated dirt protection for easy maintenance
  • Cylinder housing comprises metric mounting threads at its base and in the piston rod



Yale YCH Double-Acting Hollow Hydraulic Cylinder

  • Heat-treated chromium-molybdenum steel construction
  • Maximum operating pressure: 700 bar
  • Integrated dirt protection for easy maintenance
  • Large diameter centre hole for threaded rod for high pulling capacity
  • Hardened saddle can be interchanged
  • Cylinder housing comprises metric mounting threads at its base and in the piston rod



Yale YCS Hollow Hydraulic Cylinder

  • Single action with spring return
  • Maximum operating pressure: 700 bar
  • Large diameter centre hole for threaded rod for high pulling capacity
  • Cylinder housing comprises metric mounting threads at its base and in the piston rod
  • Heat-treated chromium-molybdenum steel construction
  • Overtravel prevented by a stop ring
  • Hardened saddle can be interchanged
  • Integrated inner and outer dirt wipers



Safety Precautions



In lifting and transporting items, it is essential to be able to do so safely in order to avoid damage to the products being lifted or to the people using the equipment. This means knowing how to use the equipment in the correct way and diligently following these rules during every use.

In many cases, there are also strict regulatory requirements that must be met to ensure safety when taking any action involving the use of hydraulic equipment. These are often dictated by the weight of the items that need to be lifted, and it is important to check that you are using the correct equipment for the specific task.

In addition, there is a range of safety equipment that can be used alongside hydraulic cylinders to ensure that there is a resource to rely on in the event that an issue arises.

By obtaining the highest quality equipment, you can be sure that you can trust it; however, in order to continue trusting the equipment, it is essential to undertake maintenance of it as and when necessary, in accordance with its specifications.



Take Advantage of our Experience



Lifting is our business. We don’t split our focus by dealing with many different types of equipment used for a variety of purposes, which enables us to develop an unsurpassed level of expertise.

Not only do we know everything there is to know about different types of hydraulic cylinder, but we are also capable of assisting you in determining which one is right for you.

In addition to being able to give you the details outlined here, we at Lifting365 can give you any further information you need for how lifting equipment can be useful for your business.

Lifting365 are here to be your guide when it comes to an understanding of the importance of hydraulic cylinders and how they can be used for the purpose of safely and easily moving goods.

If you have any queries about hydraulic cylinders, their parts or related safety equipment you can start by checking out our products here.
